VW T5 Transporter Throttle Pedal 7H2721503D

#12

♻ GENUINE VW TRANSPORTER T5 RHD ELECTRONIC THROTTLE / ACCELERATOR PEDAL 7H2721503D ♻

Genuine used Volkswagen Transporter T5 electronic accelerator pedal / throttle pedal with position sensor module, fitted to selected right-hand-drive T5 models. This pedal sends the driver’s throttle demand electronically to the engine ECU and forms part of the vehicle’s drive-by-wire engine management system.

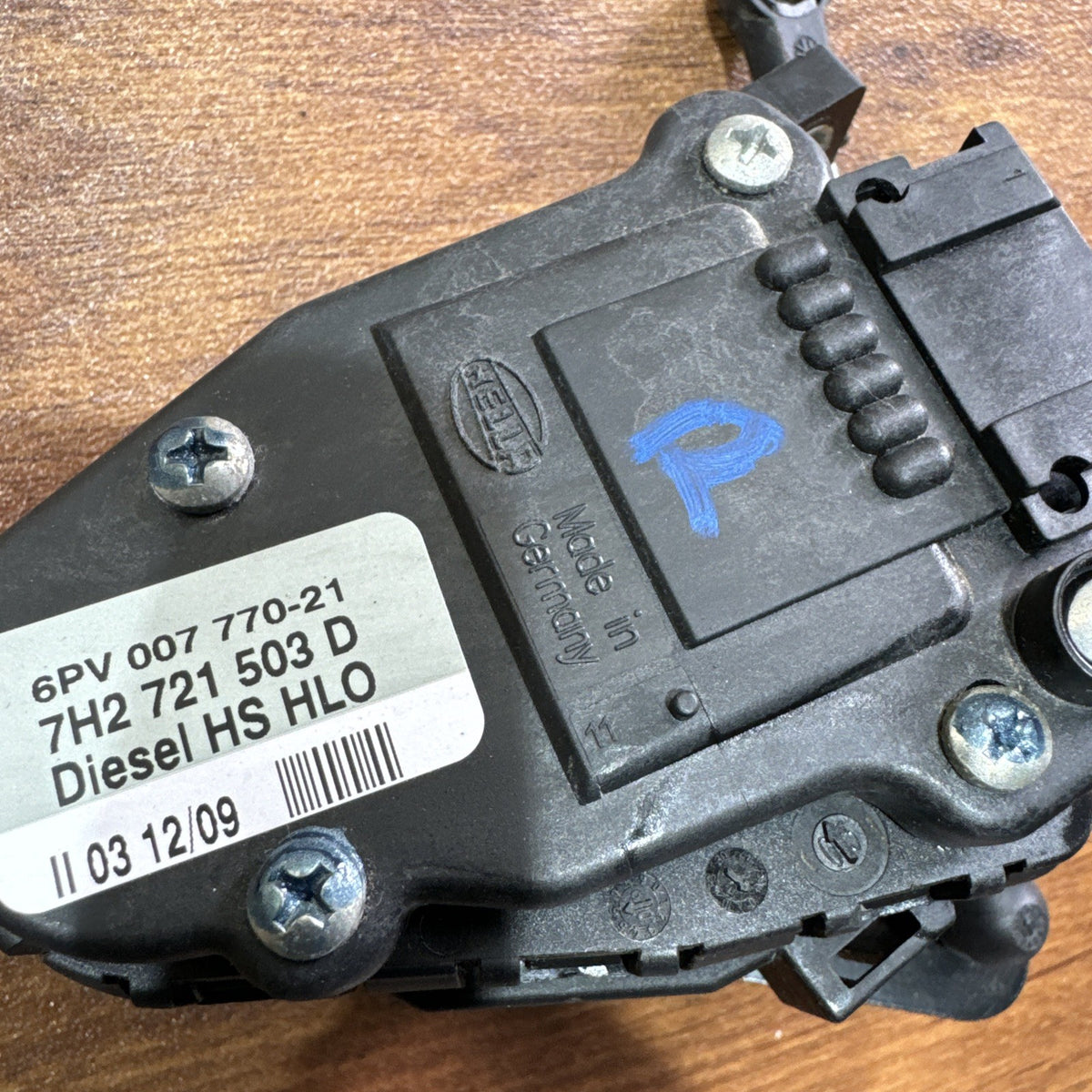

Part Number: 7H2721503D

VW OE Number: 7H2 721 503 D

Part Type: Accelerator Pedal / Throttle Pedal / Pedal Position Sensor Module

System: Electronic Throttle / Drive-by-Wire

Drive Configuration: Right-Hand Drive

PR Code: L0R – Right-Hand Drive Vehicle

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Volkswagen parts data confirms 7H2721503D as a right-hand-drive accelerator pedal with electronic module for Transporter T5 applications. (OEM Wolf)

Confirmed applications include selected:

* Volkswagen Transporter T5 – 2003–2009

* Selected early 2010 applications

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Caravelle / Multivan applications using the same RHD pedal specification

* Right-hand-drive vehicles only

A UK T5 specialist also lists 7H2721503D across the 2003–2009 Transporter T5 range. (vwbreakers.co.uk)

Confirmed Engine Applications

VW catalogue data specifically confirms 7H2721503D on selected:

* 1.9 TDI BRS – 102 HP / 75 kW

* 2.5 TDI AXE – 174 HP / 128 kW

* Selected other T5 engines where the same RHD pedal module was fitted

For example, VW’s 2007 catalogue lists 7H2721503D with PR code L0R on the BRS 1.9 TDI, while the 2003 and 2006 catalogues list the same pedal on AXE 2.5 TDI applications. (OEM Wolf)

The 2010 catalogue also still shows 7H2721503D on selected RHD BRS applications, so some early 2010 vehicles can use this pedal. (OEM Wolf)

Technical Information

The accelerator pedal is an electronic input device rather than a traditional cable-operated throttle.

Its main functions include:

* Detecting accelerator pedal position

* Measuring driver throttle demand

* Sending an electrical signal to the engine ECU

* Allowing the ECU to control fuel delivery

* Supporting turbocharger and torque management

* Supporting cruise-control and traction-related functions where applicable

* Providing redundant pedal-position signals for safety monitoring

The pedal contains integrated position sensors which change output as the pedal is pressed.

Engine Management / Drive-by-Wire Information

The pedal works together with:

* Engine ECU

* Fuel injection system

* Throttle / intake control system

* Turbocharger control

* Brake and clutch pedal switches

* Cruise control where fitted

* Traction / stability systems

The ECU continuously compares pedal-position signals to ensure they remain within the expected range.

If the signals disagree, the ECU may reduce engine power as a safety measure.

Common Symptoms of a Faulty Accelerator Pedal

Replacement may be required if the vehicle develops:

* No throttle response

* Intermittent accelerator response

* Engine enters limp mode

* Delayed acceleration

* Engine management light

* Pedal-position fault codes

* Engine speed limited despite pressing the pedal

* Throttle response cuts out intermittently

* Vehicle responds only over part of the pedal travel

Common Reasons for Failure

Typical causes include:

* Internal pedal-position sensor wear

* Electrical track failure

* Damaged wiring

* Corroded connector terminals

* Water or moisture ingress

* Physical damage to the pedal assembly

* Internal electronic failure

Important Diagnostic Information

Before replacing the accelerator pedal, also inspect:

* Electrical connector

* Pedal wiring loom

* ECU power and earth supplies

* Brake pedal switch

* Clutch pedal switch

* Engine-management fault codes

* Throttle / intake system

A throttle-response fault does not automatically mean the pedal itself is defective.

A diagnostic tool such as VCDS or ODIS can be used to monitor live accelerator-pedal position values and compare both internal sensor tracks.

Installation

Typical installation may involve:

1. Switching off the ignition.

2. Disconnecting the battery where appropriate.

3. Disconnecting the pedal electrical connector.

4. Removing the pedal retaining fixings.

5. Removing the original pedal assembly.

6. Installing the replacement unit.

7. Reconnecting the electrical connector.

8. Checking pedal movement.

9. Clearing stored fault codes if necessary.

10. Confirming pedal-position readings with diagnostics.

Programming / Coding

No vehicle-specific coding is normally required when fitting the correct matching accelerator pedal.

The ECU should recognise the pedal once installed.

However:

* Stored fault codes may need clearing.

* Pedal-position values should be checked if the fault persists.

* Basic engine-management diagnostics are recommended after replacement.

Important Compatibility Note

Before ordering, please compare:

* OE number 7H2721503D

* RHD configuration

* PR code L0R

* Electrical connector

* Pedal mounting pattern

* Pedal shape

* Engine code

* Your original unit against the listing photographs

* Vehicle VIN where possible

Do not confuse this pedal with similar T5 accelerator units carrying other suffixes or with LHD versions.

VW’s own catalogue explicitly identifies 7H2721503D as RHD. (OEM Wolf)

The safest main fitment is:

Volkswagen Transporter T5 RHD – selected 2003–2009 and early 2010 applications using OE 7H2721503D.

Condition

Genuine used Volkswagen part.

As a used electronic pedal assembly, it may show normal signs of previous use including:

* Surface marks

* Scuffs to the pedal pad

* Dust

* Minor oxidation around mounting points

* General age-related wear

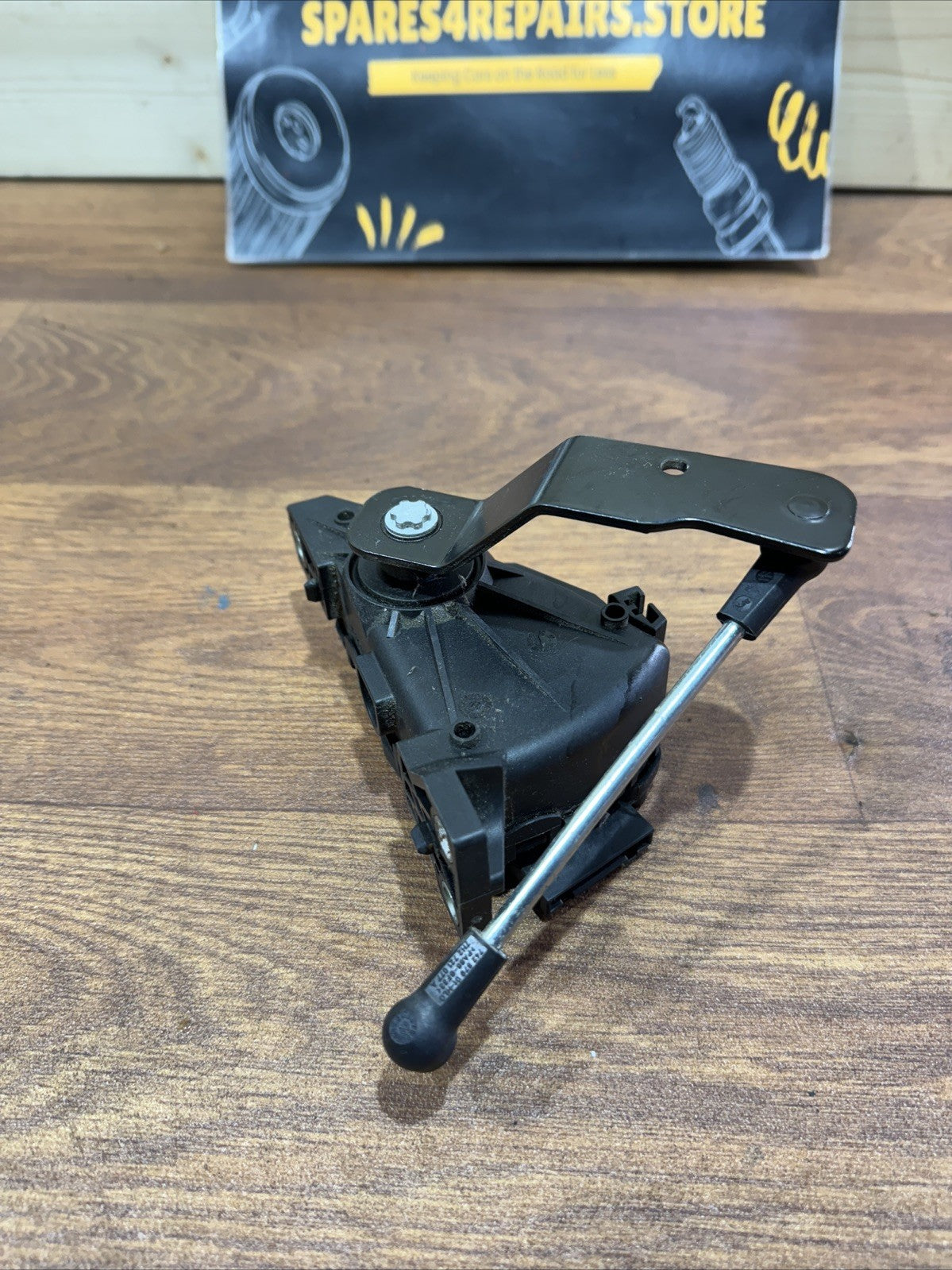

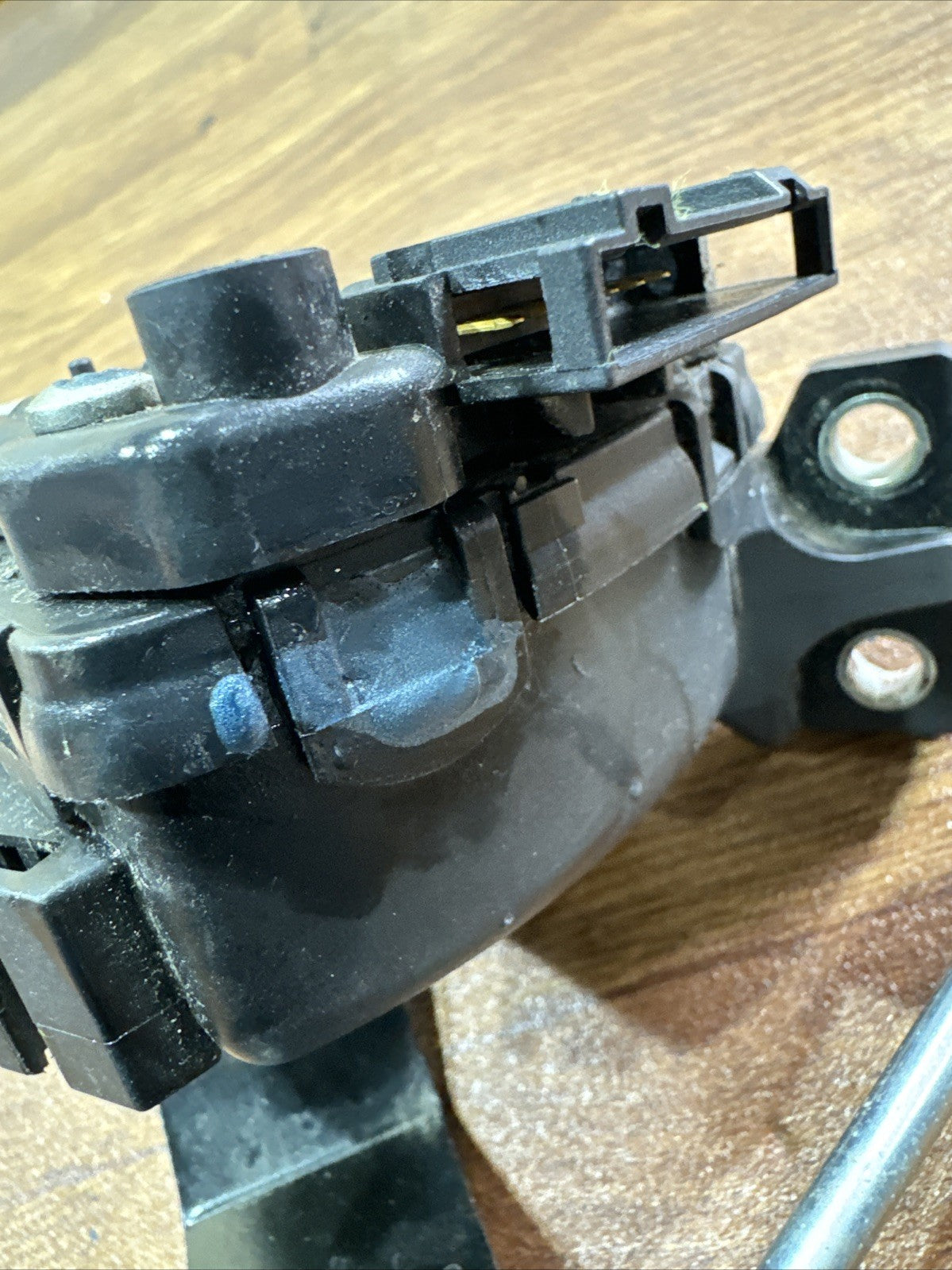

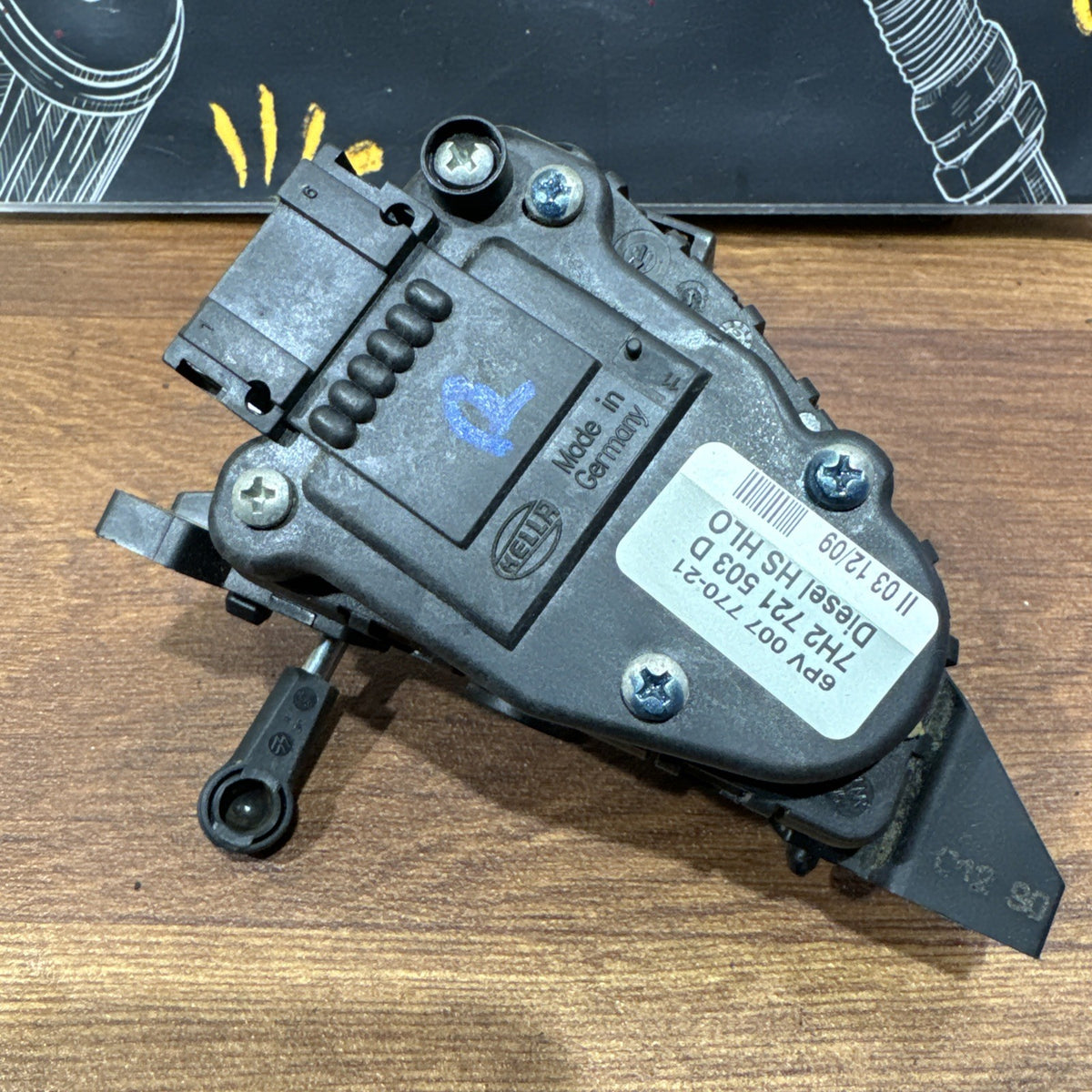

Please inspect all listing photographs carefully for the exact condition, connector, pedal pad and mounting points.

An ideal genuine replacement for a faulty, intermittent or damaged VW Transporter T5 RHD electronic throttle / accelerator pedal 7H2721503D.
