VW Transporter T5.1 Bonnet Release Cable 1J2823533C 7H2823530A

#85

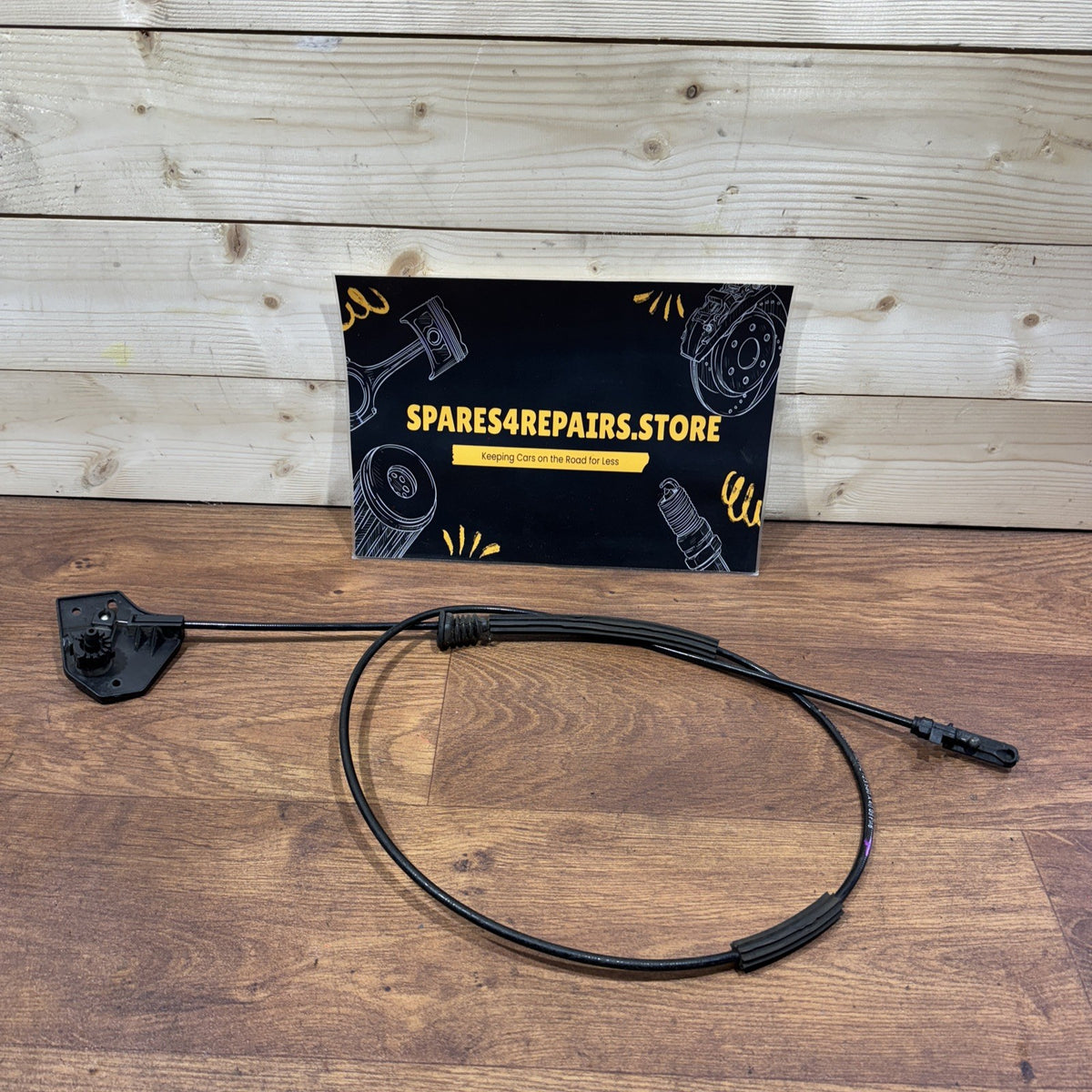

Genuine used Volkswagen Transporter T5 / T5.1 bonnet release cable with interior pull handle, part numbers 7H2823530A and 1J2823533C.

This factory bonnet-release assembly is designed for right-hand-drive (RHD) vehicles and mechanically connects the driver’s interior bonnet-release handle to the bonnet latch mechanism, allowing the bonnet to be released from inside the vehicle.

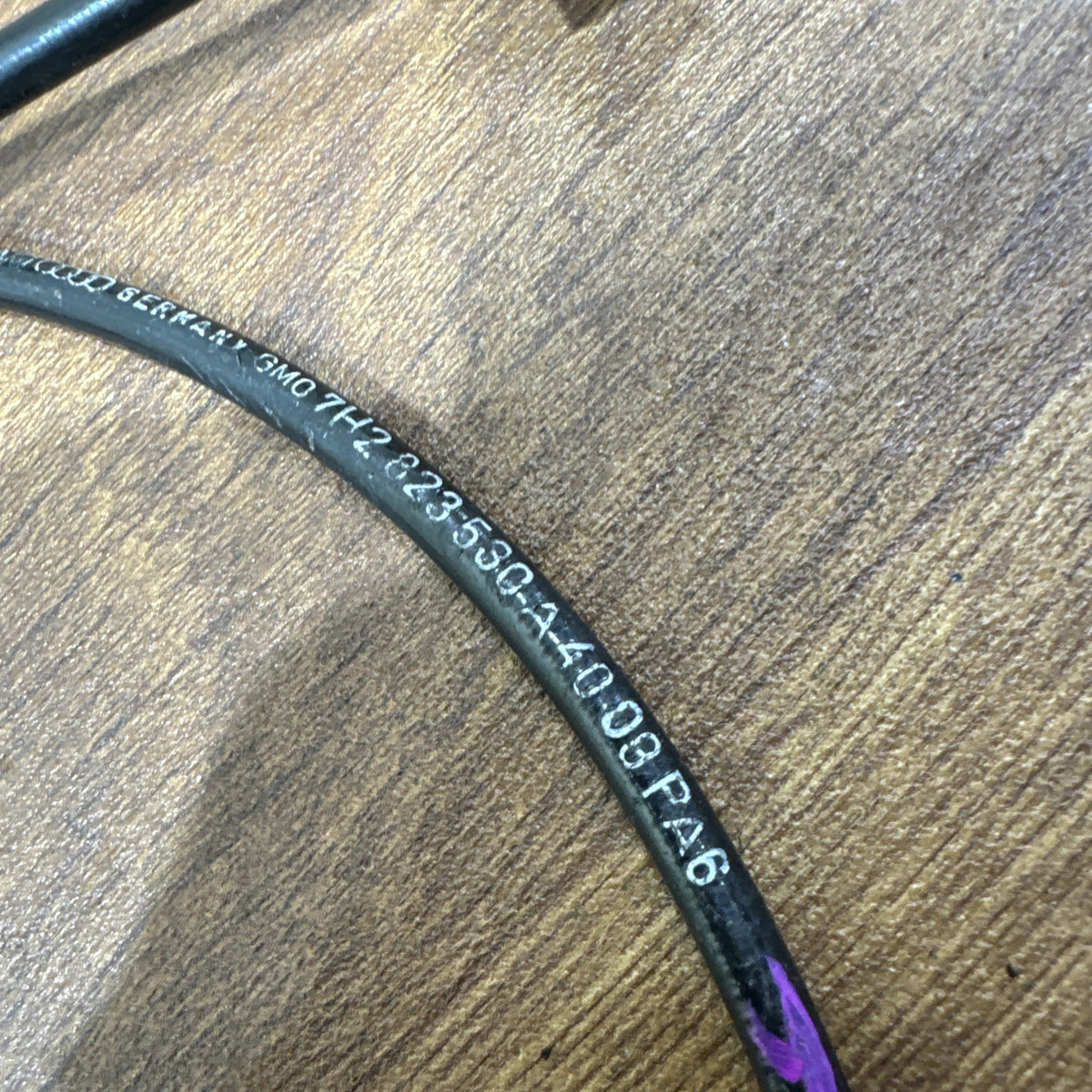

Bonnet Release Cable: 7H2823530A

VW OE Number: 7H2 823 530 A

Interior Release Handle / Grip: 1J2823533C

VW OE Number: 1J2 823 533 C

Later Cable Reference: 7E2823530A

Part Type: Bonnet Release Cable & Interior Pull Handle / Grip

Application: Bonnet / Hood Lock Release System

Vehicle Configuration: Right-Hand Drive (RHD)

UK Application: Driver’s Side Interior Release

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Stock Reference: D321

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 – 2010–2015

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California T5 / T5.1

* Volkswagen Shuttle

* Panel Van

* Kombi

* Passenger variants

* Chassis cab / platform variants where the same RHD bonnet-release arrangement is fitted

7H2823530A is specifically catalogued for RHD vehicles.

The cable is documented throughout the T5/T5.1 generation, making this suitable for considerably more applications than one particular engine or model year.

Part Number Information

The assembly consists of two important components:

7H2823530A

* Bonnet / hood release cable

* RHD specification

* Runs between the interior release mechanism and bonnet latch system

1J2823533C

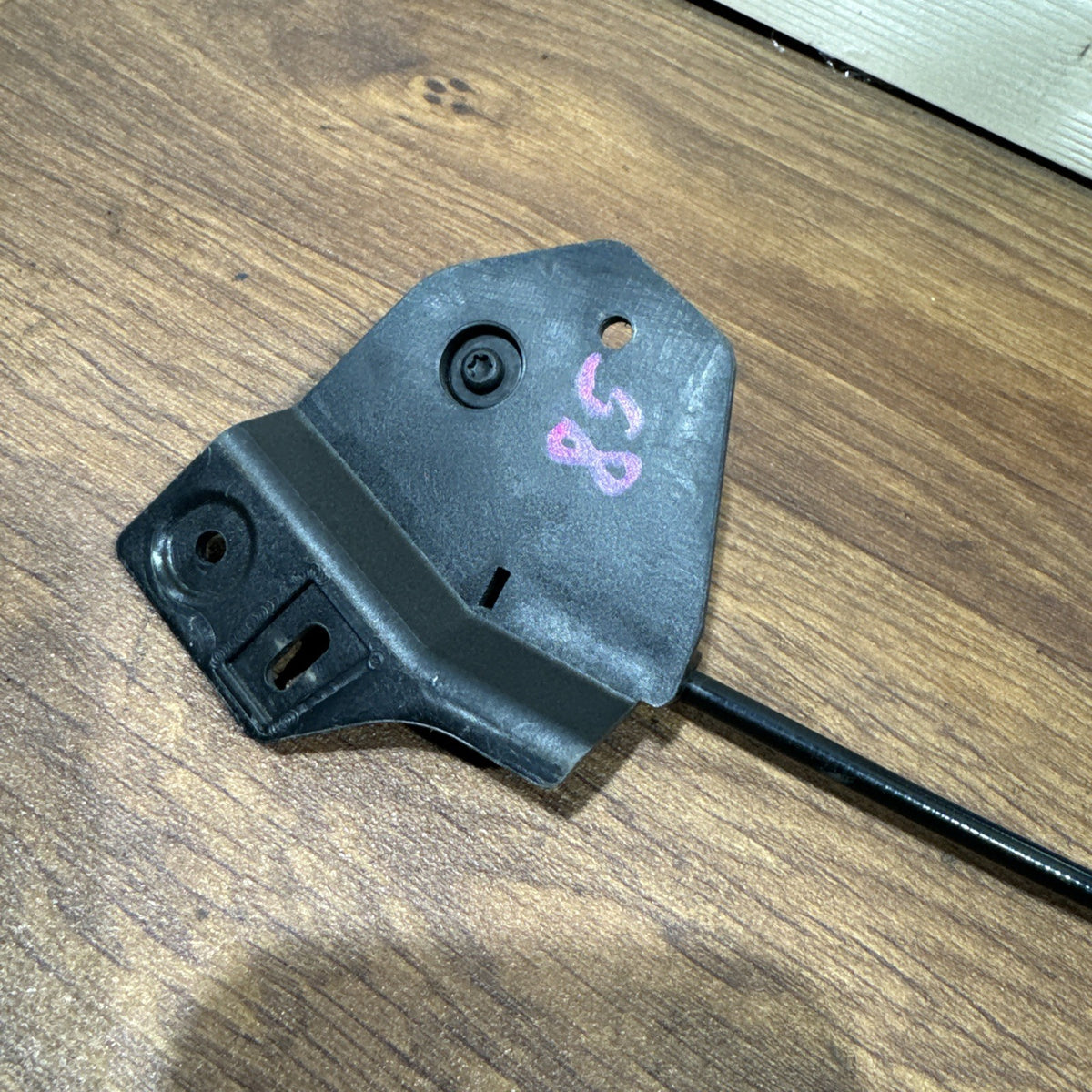

* Interior bonnet release handle / grip

* RHD specification

* Operated by the driver from inside the vehicle

The cable 7H2823530A is also catalogued with the later reference:

7E2823530A

Always compare the complete assembly with the original component before ordering.

Technical Information

The bonnet release system is mechanically operated.

When the interior handle is pulled:

1. The handle pulls the inner release cable.

2. The cable transfers movement towards the bonnet latch.

3. The bonnet lock releases from its primary locked position.

4. The bonnet lifts sufficiently to access the secondary safety catch.

5. The secondary catch can then be released manually to open the bonnet.

The cable must move freely through its outer sheath for the mechanism to operate correctly.

Bonnet Release System Information

The T5/T5.1 bonnet release system includes components such as:

* Interior bonnet release handle

* Handle mounting bracket

* Bonnet release cable

* Cable outer sheath

* Cable retaining points

* Bonnet latch/lock

* Secondary bonnet safety catch

A fault with any of these components can make the bonnet difficult or impossible to open.

Right-Hand-Drive Information

This is an important compatibility point.

7H2823530A = RHD bonnet release cable

VW catalogue information identifies the alternative:

7H1823530A = LHD bonnet release cable

Likewise, the handle/grip configuration differs according to steering position.

Therefore, buyers should not assume that a bonnet cable removed from a European LHD Transporter will be suitable for a UK RHD vehicle.

This listing is for the UK / Right-Hand-Drive configuration.

Common Symptoms / Reasons for Replacement

Typical reasons for replacing the bonnet release cable or handle include:

* Bonnet release handle broken

* Handle becoming loose

* Cable snapped

* Cable stretched

* Cable becoming stiff

* Excessive force required to pull the handle

* Bonnet not releasing

* Handle pulls but bonnet remains locked

* Damaged cable outer sheath

* Corroded inner cable

* Damaged cable end

* Broken retaining point

* Previous accident or front-end repair damage

A progressively heavier bonnet-release handle should be investigated before the cable fails completely.

Important Diagnostic Information

If the bonnet is difficult to open, do not automatically assume the cable itself is faulty.

Inspect:

* Interior release handle

* Cable attachment to the handle

* Cable routing

* Cable outer sheath

* Bonnet latch

* Latch return mechanism

* Secondary safety catch

* Bonnet alignment

* Latch lubrication

* Bonnet striker/alignment

A partially seized bonnet latch can significantly increase the load placed on the cable and interior handle.

Replacing the cable without correcting a stiff latch can eventually damage the replacement cable or handle.

Bonnet Latch Maintenance

The bonnet latch should move freely.

Accumulated:

* Dirt

* Road contamination

* Corrosion

* Old grease

* Moisture

can make the mechanism progressively stiffer.

When installing the replacement cable, inspect and service the bonnet latch as appropriate.

The latch should release and return smoothly without requiring excessive force from the interior handle.

Cable Inspection

Before installation, inspect the replacement cable for:

* Kinks

* Fraying

* Damaged outer sheath

* Broken end fittings

* Corrosion

* Excessive stiffness

* Damaged mounting points

The cable should move smoothly without binding.

Installation

During installation:

* Compare the replacement assembly with the original

* Route the cable through the correct factory path

* Secure all retaining points

* Avoid sharp bends or kinks

* Connect the cable securely to the release handle

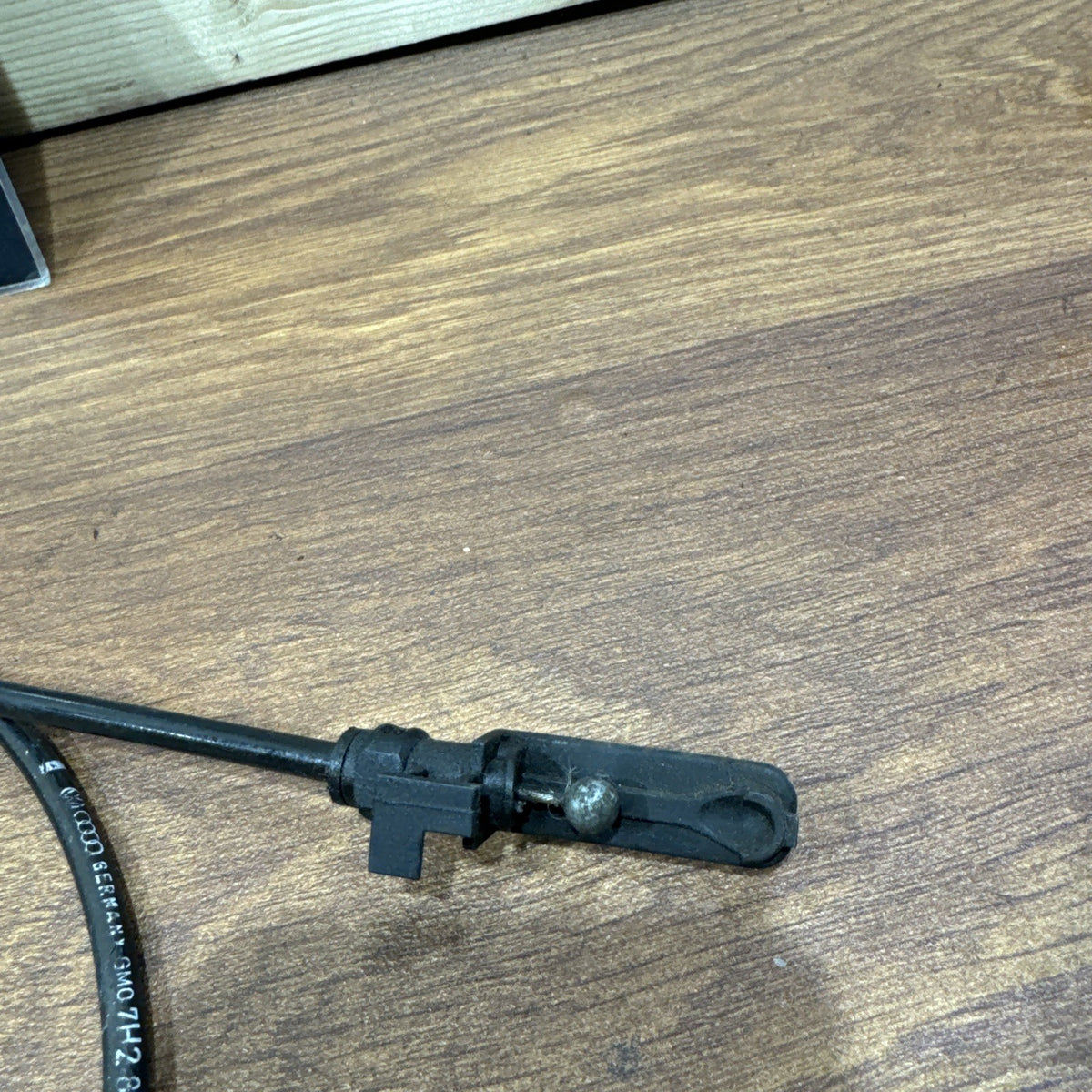

* Connect the opposite end correctly to the bonnet latch mechanism

* Confirm the outer cable sheath is properly seated

Incorrect cable routing can increase friction and prevent the bonnet release mechanism from operating correctly.

Important Testing Procedure

Test the bonnet release mechanism before fully closing the bonnet.

After installation:

1. Operate the interior handle several times.

2. Confirm the cable moves freely.

3. Manually test operation of the bonnet latch.

4. Confirm the latch returns correctly.

5. Check cable attachment at both ends.

6. Only close the bonnet fully once correct release operation has been confirmed.

This is particularly important because an incorrectly installed cable can leave the bonnet locked shut.

Programming / Coding

No programming or coding is required.

The bonnet release cable and interior handle are purely mechanical components.

Important Compatibility Note

Please compare before ordering:

* Cable number – 7H2823530A

* Handle number – 1J2823533C

* RHD/LHD specification

* Cable length

* Cable end fittings

* Handle design

* Mounting arrangement

* Cable routing

* Bonnet latch connection

* Vehicle production year

For UK vehicles, 7H2823530A is the correct RHD-type cable reference.

The corresponding LHD cable uses a different reference, so matching the part number is particularly important.

Condition

Genuine Volkswagen used bonnet-release components.

As used mechanical/interior components, normal signs of previous use may include:

* Surface marks

* Scratches

* Dirt

* Light cosmetic wear

* Minor oxidation to metal components

* General signs of removal

Please inspect all listing photographs carefully for the exact condition of the cable, outer sheath, cable ends, interior release handle and mounting points.

Only the cable, handle, brackets or associated components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a snapped, stretched, stiff or damaged Volkswagen Transporter T5 / T5.1 RHD bonnet release cable and interior handle assembly, provided 7H2823530A / 1J2823533C match the original components.
