VW Transporter T5.1 Front Door Latch Locking Mechanism Right 3B2837016AA

#12

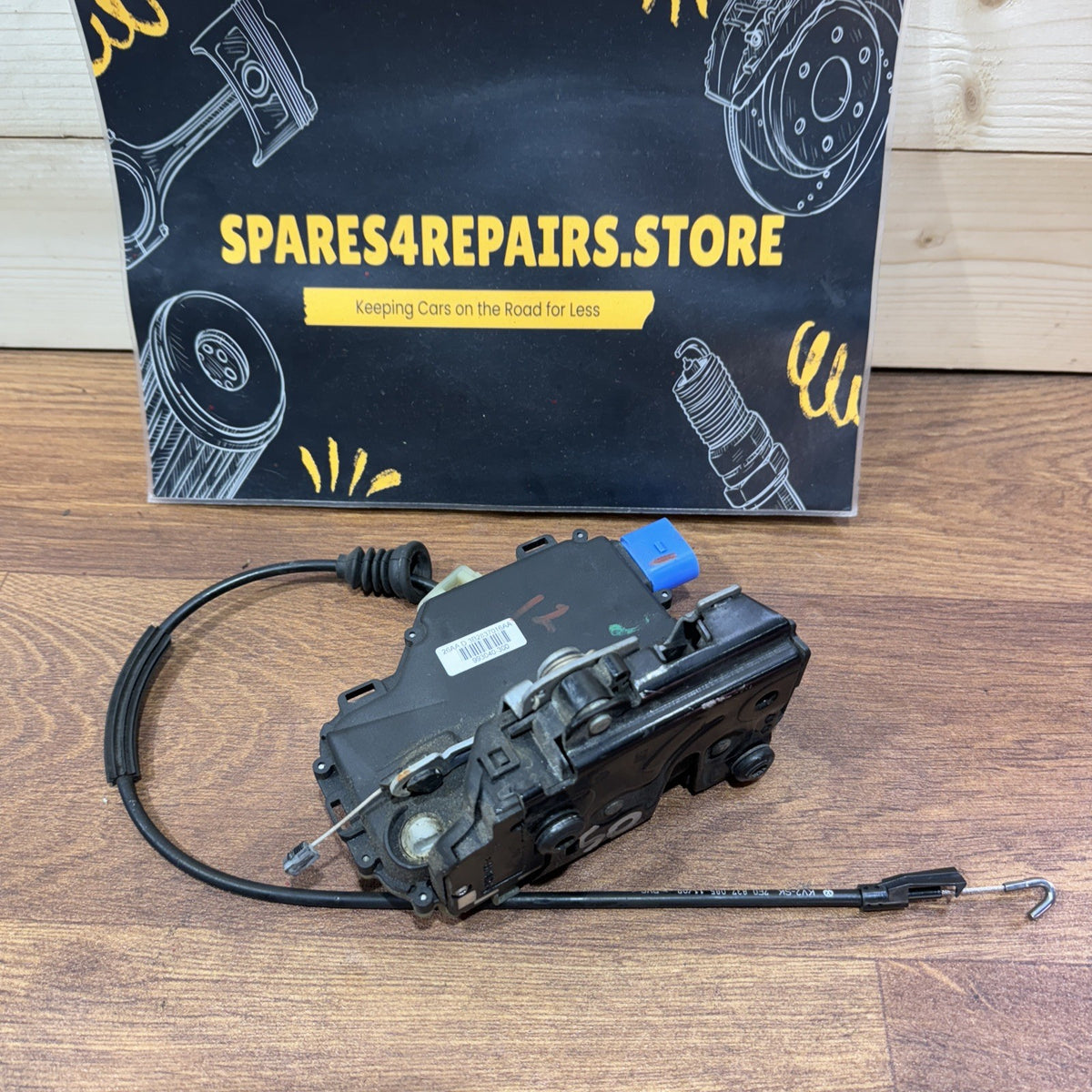

Genuine used Volkswagen Transporter T5 / T5.1 front right door latch and central locking mechanism, part number 3B2837016AA. This unit fits inside the front right-hand door and combines the mechanical door latch with the electrical central-locking actuator and door-status switching functions.

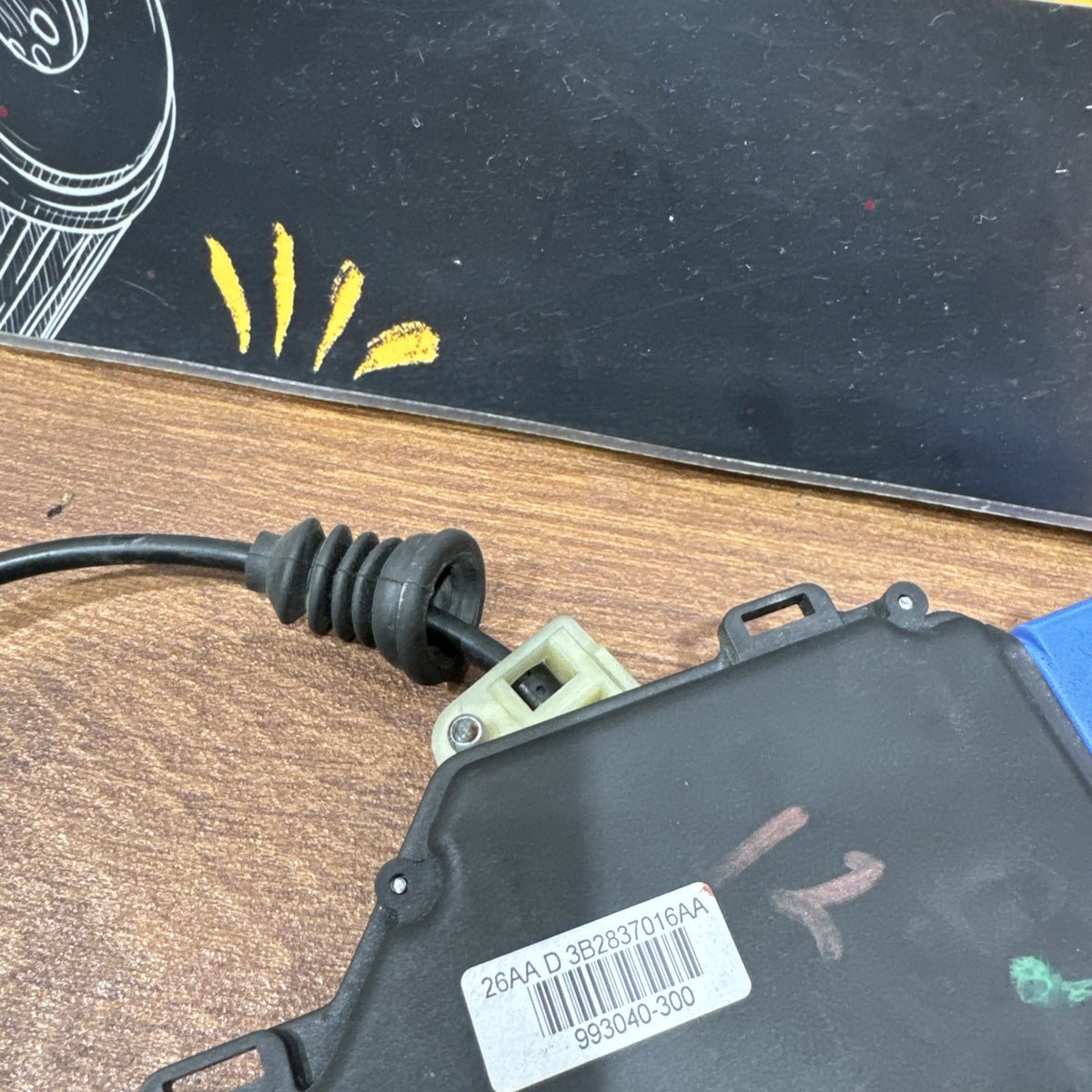

Part Number: 3B2837016AA

VW OE Number: 3B2 837 016 AA

Part Type: Front Door Lock / Latch / Central Locking Mechanism

Position: Front Right

UK Vehicle Side: Driver Side / O/S / Offside

Vehicle Type: RHD models

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 – 2010–2015

* VW Caravelle T5 / T5.1

* VW Multivan T5 / T5.1

* VW California T5 / T5.1

* Panel van, Kombi and passenger variants with the appropriate central-locking system

VW parts information identifies 3B2837016AA as a front-right door lock for right-hand-drive vehicles, and catalogues list applications across Transporter T5 production. (WWSpares)

Some catalogues also list the same OE reference for later Transporter applications, but fitment should always be established using the original part number, electrical connector and vehicle specification rather than model year alone. (heritagepartscentre.com)

Technical Information

The door latch assembly is mounted internally at the rear edge of the front driver’s door.

It performs several functions within one assembly:

* Mechanically secures the door to the body striker

* Releases the door when the interior or exterior handle is operated

* Electrically locks and unlocks the door

* Interfaces with the vehicle’s central-locking system

* Provides door-open / door-closed information through internal microswitches

* Allows the vehicle’s security system to determine door-lock status

An aftermarket application catalogue for this OE number specifies an 8-pin electrical connection on Transporter T5 RHD central-locking applications. (cardoorlock.co.uk)

Central Locking & Door Monitoring System

The electrical actuator incorporated into the latch responds to commands from the vehicle’s central-locking system.

Internal switches can also communicate whether the door is:

* Open

* Closed

* Locked

* Unlocked

Because these switches are integrated into the latch mechanism, a failed latch can sometimes create electrical symptoms even when the door still mechanically opens and closes.

Common Symptoms of a Faulty Door Lock

A failing front door latch may cause:

* Driver’s door not locking with the central locking

* Door not unlocking from the remote

* Intermittent locking or unlocking

* Door immediately unlocking again after locking

* Interior handle not releasing correctly

* Exterior handle operating inconsistently

* Door requiring excessive force to close

* Door-open warning remaining active

* Vehicle failing to recognise that the driver’s door is open

* Interior light not responding correctly to the driver’s door

* Alarm or security-system irregularities

* Mechanical clicking or grinding from inside the door

Important Diagnostic Information

Before replacing the latch, check the complete door-locking system.

Similar symptoms may be caused by:

* Damaged wiring inside the door

* Broken wiring in the door-to-body rubber loom

* Poor electrical connector contacts

* Incorrectly adjusted door striker

* Damaged exterior handle linkage

* Damaged interior handle cable

* Central-locking control fault

* Low vehicle battery voltage

* Door alignment problems

If the door locks correctly mechanically but does not respond electrically, check power supply, wiring and connector condition before condemning the lock mechanism.

Installation

Installation requires removal of the driver’s door trim and access to the internal door components.

Depending on vehicle specification, removal or repositioning of associated handle cables, wiring and other door components may be necessary to reach the latch.

After installation, check:

* Interior handle operation

* Exterior handle operation

* Manual locking

* Central locking

* Remote locking

* Door-open recognition

* Correct engagement with the body striker

The door should close securely without excessive force.

Programming / Coding

Programming is not normally required when replacing the latch with a matching unit.

However, central-locking operation should be tested after installation and any stored door-locking or convenience-system fault codes should be checked if problems remain.

Important Compatibility Note

Please compare before ordering:

* OE number – 3B2837016AA

* Front-right / driver’s-side position

* RHD vehicle specification

* Electrical connector and pin arrangement

* Mounting points

* Handle/cable connections

* Central-locking specification

This OE number is specifically listed as a front-right / UK driver’s-side lock for RHD applications. (Deutsche Parts)

Do not order purely by vehicle model or year because different lock mechanisms can be fitted depending on production date, market and central-locking specification.

Condition

Genuine Volkswagen used part.

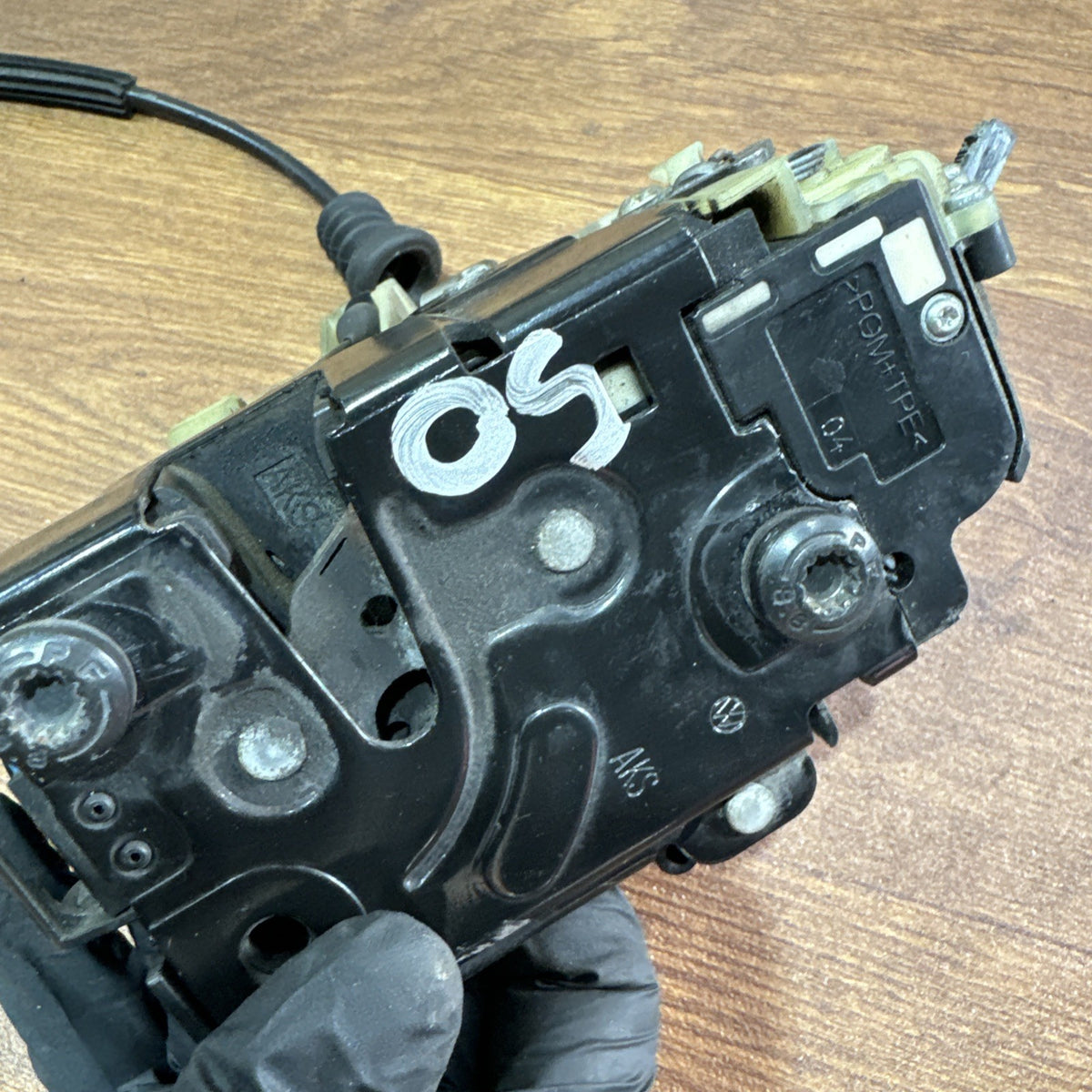

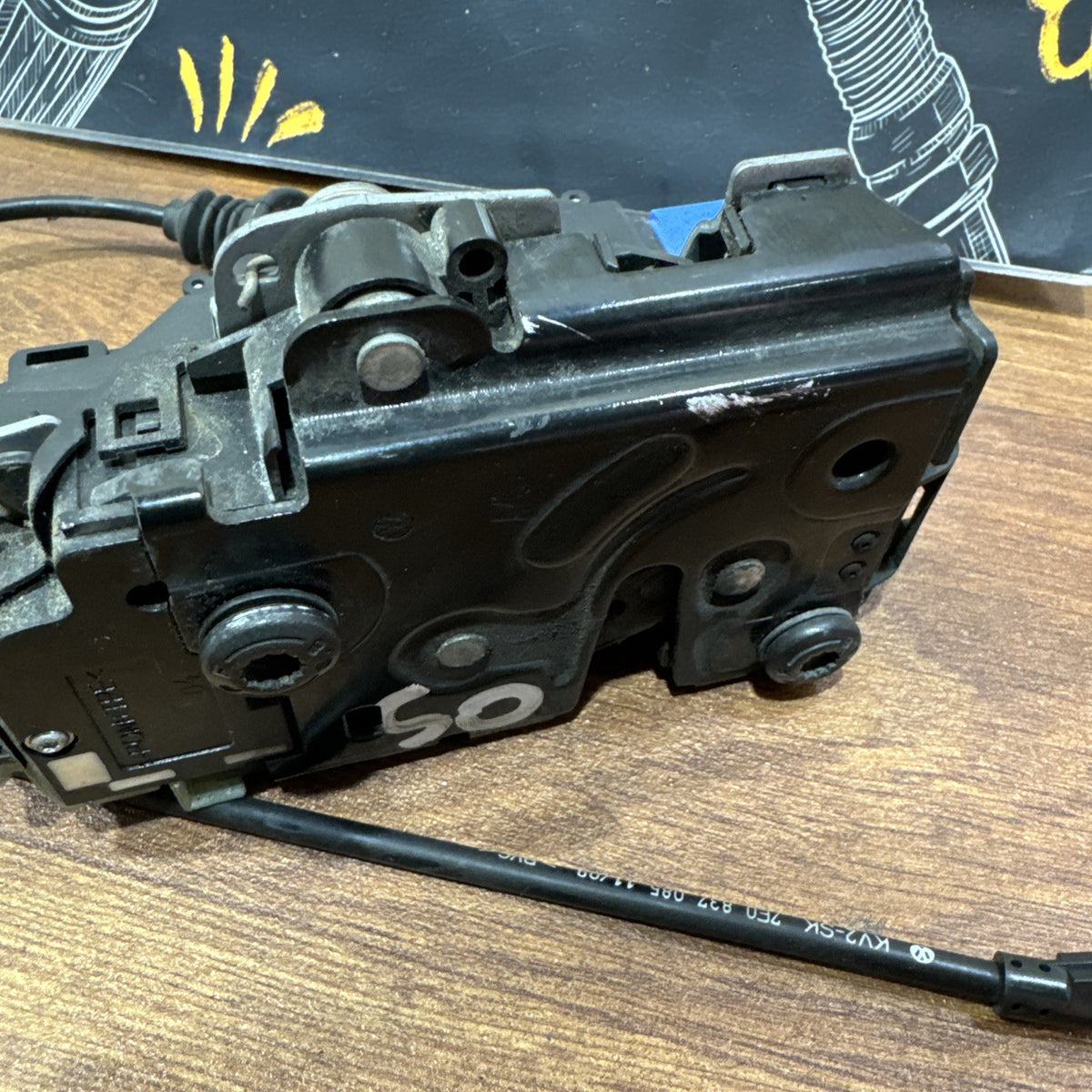

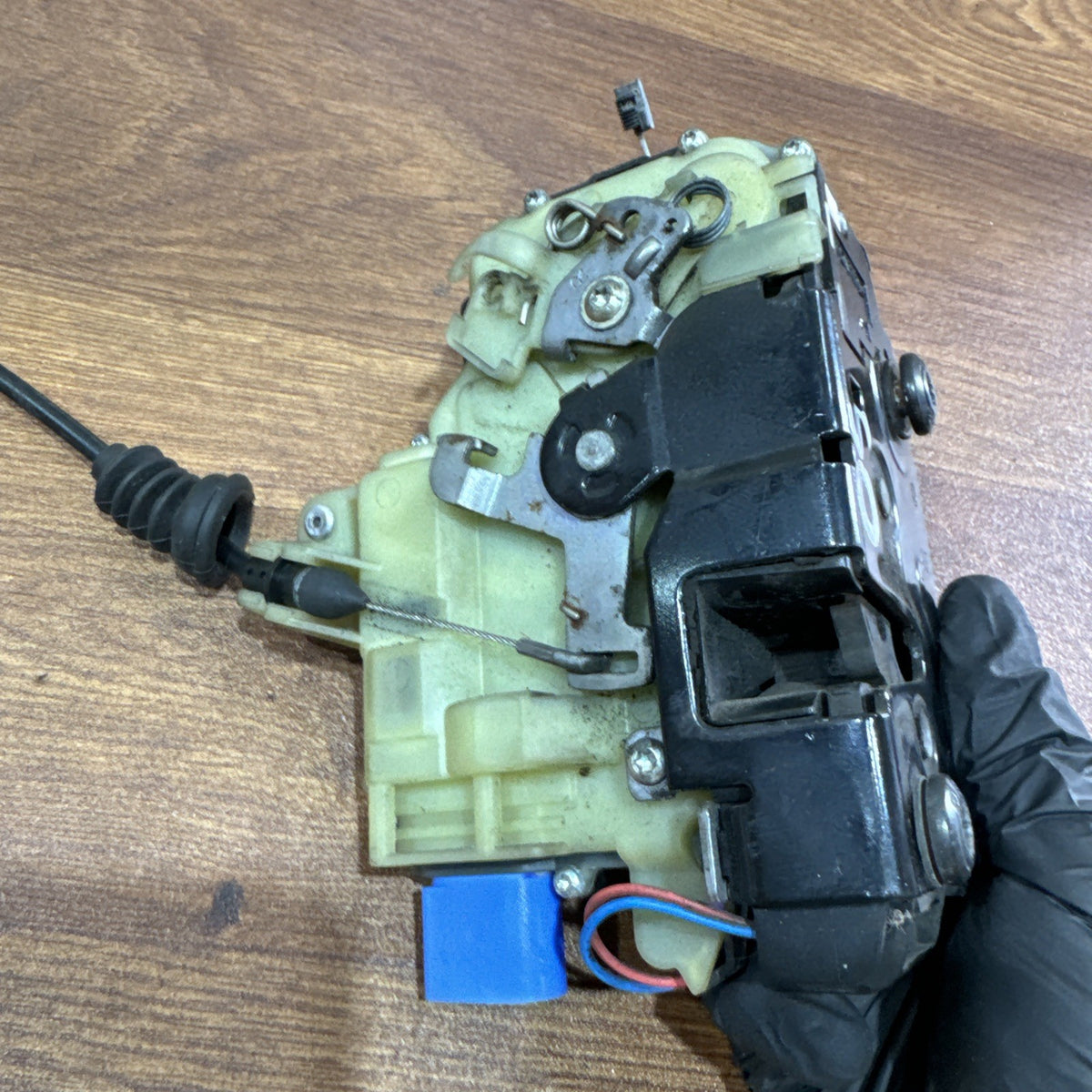

The item may show normal cosmetic signs of previous use, storage or removal. Please inspect the listing photographs carefully for the exact condition, electrical connector and components supplied.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a faulty, damaged or intermittently operating VW Transporter T5 / T5.1 driver’s front door locking mechanism.
