VW Transporter T5.1 Turbo Intercooler Pipe 2.0 7E0145762C

#102

♻ GENUINE VW TRANSPORTER T5.1 2.0 TDI TURBO INTERCOOLER PRESSURE PIPE 7E0145762C ♻

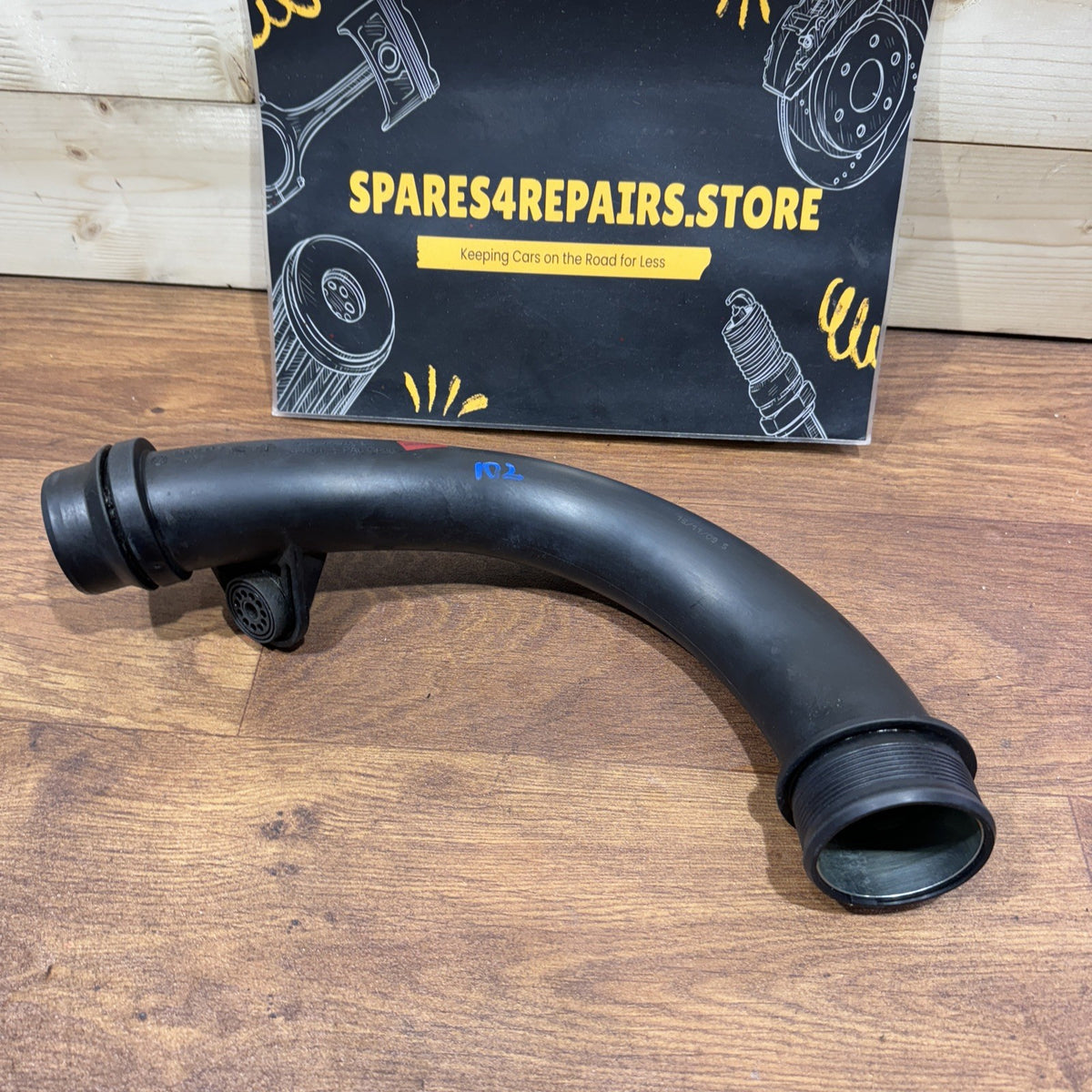

Genuine used Volkswagen Transporter T5.1 turbo intercooler pressure pipe / charge-air pipe, fitted within the pressurised intake system on selected 2.0 TDI common-rail diesel engines. This pipe connects sections of the turbocharger and intercooler system, carrying compressed air while maintaining the boost pressure required for correct engine performance.

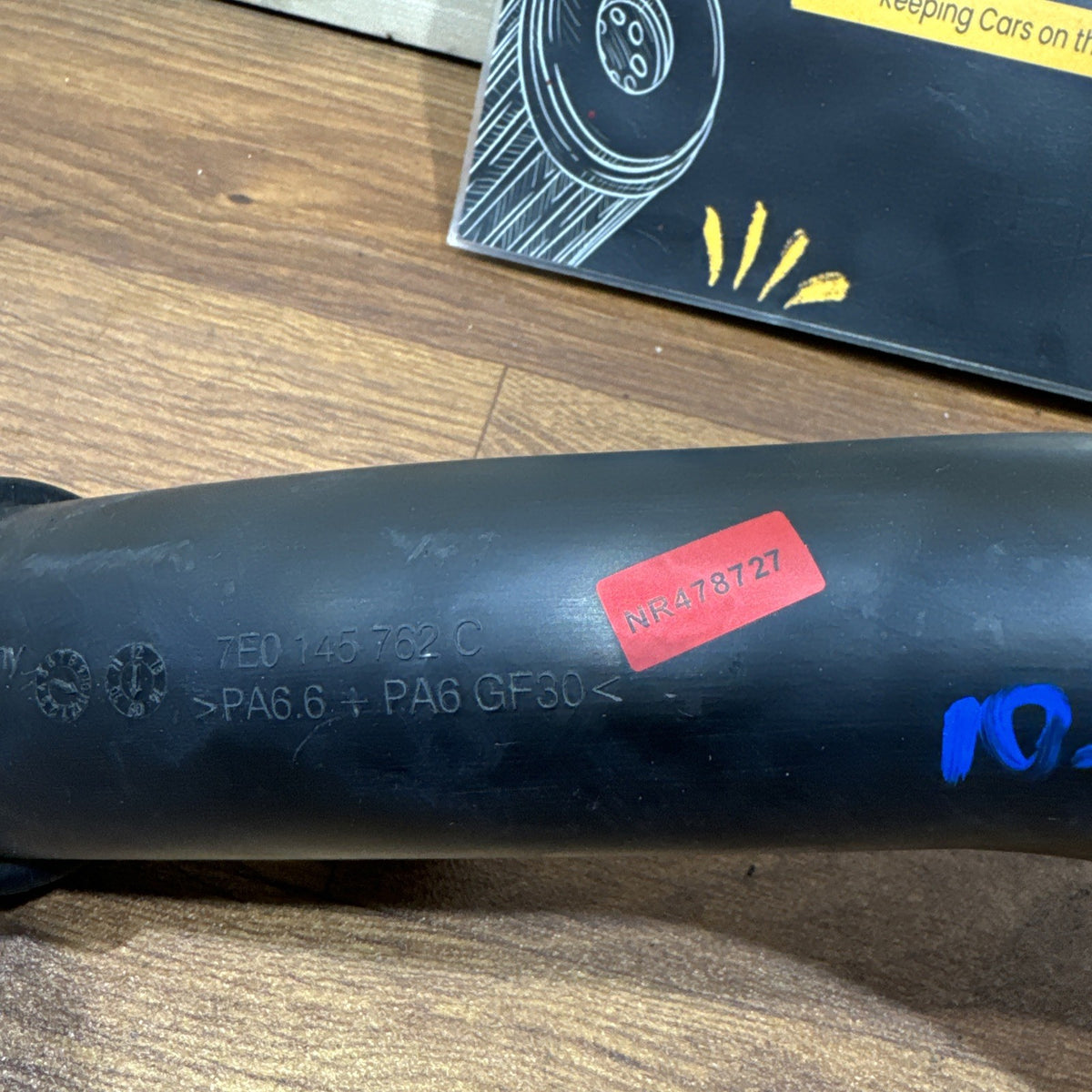

Part Number: 7E0145762C

VW OE Number: 7E0 145 762 C

Part Type: Intercooler Pressure Pipe / Turbo Boost Pipe / Charge Air Pipe

System: Turbocharger / Intercooler / Charge-Air System

Fuel Type: Diesel

Engine: 2.0 TDI Common Rail

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Genuine and OE-reference data confirms 7E0145762C as an intercooler-to-turbo / pressure pipe used on Volkswagen Transporter applications from approximately 2010 onward. A genuine-parts supplier lists the exact number for Transporter 2010–2019, although it correctly warns that it does not fit every engine/configuration within that range. (Deutsche Parts⁠)

For the T5.1 generation, suitable applications include selected:

* Volkswagen Transporter T5.1 – 2010–2015

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Caravelle T5.1

* Multivan T5.1

* California T5.1

* Selected chassis/platform variants

* 2.0 TDI common-rail diesel engines using OE 7E0145762C

Confirmed Engine Applications

There is strong evidence for the following T5.1 engines:

* CAAA – 2.0 TDI 84 PS / 62 kW

* CAAB – 2.0 TDI 102 PS / 75 kW

* CAAD – 2.0 TDI 114 PS / 84 kW

* CAAC – 2.0 TDI 140 PS / 103 kW

* CCHA – selected 2.0 TDI applications

A 2010 Transporter with CAAB 102 PS is documented with OE 7E0145762C, while another documented 2013 T5 application uses the same OE pipe on the CAAD 114 PS engine. (Autoparts24⁠)

Most importantly, a genuine Volkswagen parts catalogue for the Transporter intercooler system explicitly lists 7E0145762C as the pressure pipe in the intercooler arrangement for CAAA, CAAB and CAAC diesel engines. (PartSouq⁠)

T6 Compatibility

The same OE number continued into selected:

* Volkswagen Transporter T6 – approx. 2015–2019

* Selected 2.0 TDI engines using the same charge-air arrangement

A genuine-parts supplier specifically gives the application range as Volkswagen Transporter 2010–2019. (Deutsche Parts⁠)

For an eBay listing, however, I would make T5.1 2010–2015 the primary fitment and mention T6 only as:

“Also fits selected T6 2015–2019 applications – match OE number/VIN before ordering.”

Technical Information

Volkswagen identifies 7E0145762C as a pressure pipe within the intercooler system. (PartSouq⁠)

Its main functions include:

* Carrying compressed turbocharged air

* Connecting the turbo/intercooler charge-air system

* Maintaining correct boost pressure

* Providing a sealed path for pressurised intake air

* Supporting correct engine power and torque

* Helping maintain requested air mass

* Preventing pressure losses within the intake system

A genuine-parts specialist describes this exact component as an “intercooler to turbo pressure pipe.” (Deutsche Parts⁠)

Turbo / Intercooler System Information

The pipe works together with:

* Turbocharger

* Intercooler

* Charge-air hoses

* Pressure pipes

* Intake manifold

* Throttle / anti-shudder valve

* MAP / boost-pressure sensor

* MAF sensor

* EGR system

* Engine ECU

The turbocharger compresses the intake air, which is then passed through the intercooler to reduce its temperature before entering the engine.

All connections in this system must remain properly sealed because even a relatively small leak can result in loss of boost pressure.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Pipe is cracked

* Pipe has split

* Connection flange is damaged

* Retaining point is broken

* Pipe has suffered impact damage

* Sealing connection is worn

* Oil is leaking heavily around a joint

* Pipe has become distorted

* Existing pipe has been damaged during engine repairs

Common Symptoms of a Boost Leak

A leaking or damaged intercooler pressure pipe may cause:

* Loss of engine power

* Poor acceleration

* Turbo lag

* Limp mode

* Hissing or whooshing under acceleration

* Black exhaust smoke

* Engine management light

* Underboost fault codes

* Increased fuel consumption

* Oil staining around charge-air connections

A light oil film inside the boost system can be normal on a diesel engine.

However, significant oily residue around the outside of a connection can indicate escaping pressurised air carrying oil mist.

Important Diagnostic Information

Before replacing this pipe, also inspect:

* Intercooler

* 7E0145708B pressure hose

* 7E0145709C pressure hose

* Sealing rings / O-rings

* Retaining clips

* Turbocharger connections

* MAP sensor

* MAF sensor

* EGR system

* Turbo actuator

* Other charge-air connections

Interestingly, Volkswagen’s intercooler diagram shows 7E0145762C, 7E0145708B and 7E0145709C as separate components within the same charge-air system. (PartSouq⁠)

Therefore, buyers should not confuse this pipe with the other two intercooler hoses even though all three form part of the same system.

Installation

Typical installation may involve:

1. Allowing the engine to cool.

2. Removing any engine covers or undertrays required for access.

3. Releasing the relevant hose clamps / retaining clips.

4. Disconnecting the existing pressure pipe.

5. Inspecting mating connections.

6. Checking seals and O-rings.

7. Installing the replacement pipe.

8. Securing all clamps and retaining points.

9. Checking adjacent intercooler hoses.

10. Running the engine and checking the system for boost leaks.

Any hardened, flattened or damaged sealing rings should be replaced during installation.

Programming / Coding

No programming or coding is required.

This is a mechanical charge-air system component.

If the vehicle previously recorded an underboost or charge-pressure fault, stored diagnostic codes may need to be cleared after the repair.

Important Compatibility Note

Before ordering, please compare:

* OE number 7E0145762C

* Engine code

* Engine power output

* Pipe shape

* Pipe diameter

* Turbo/intercooler connections

* Mounting brackets

* Retaining clips

* Sealing arrangement

* FWD / 4Motion specification where applicable

* Your original pipe against the listing photographs

* VIN where possible

Do not purchase solely because the vehicle is a 2.0 TDI Transporter. Different charge-air components were fitted according to engine and production specification.

The safest primary fitment is:

VW Transporter T5.1 2.0 TDI 2010–2015 – selected CAAA / CAAB / CAAD / CAAC / CCHA applications using OE 7E0145762C.

Selected T6 applications through approximately 2019 are also documented, but OE/VIN confirmation is recommended. (Deutsche Parts⁠)

Condition

Genuine used Volkswagen part.

As a used turbo/intercooler component, it may show normal signs of previous use including:

* Oil mist / residue

* Surface marks

* Light staining

* Scratches

* Marks around hose connections

* General age-related wear

Please inspect all listing photographs carefully for the exact condition, connections and mounting points.

An ideal genuine replacement for a cracked, leaking, damaged or faulty VW Transporter T5.1 2.0 TDI turbo intercooler / charge-air pressure pipe 7E0145762C.

For this part, 7E0145762C is the pressure pipe itself, while the 7E0145708B and 7E0145709C parts from your other listings are separate hoses in the same intercooler system. Volkswagen’s parts diagram shows all three separately, which is useful for keeping your eBay titles distinct.
