VW Transporter T5.1 Turbo Intercooler Pipe 7E0145709A/D 2.0

#102

♻ GENUINE VW TRANSPORTER T5.1 2.0 TDI TURBO INTERCOOLER / CHARGE AIR PIPE 7E0145709A / 7E0145709D ♻

Genuine used Volkswagen Transporter T5.1 turbo intercooler pressure hose / charge air pipe, fitted within the turbocharged intake system on selected 2.0 TDI diesel engines. This hose carries pressurised intake air between the turbocharger, intercooler and intake system and must remain properly sealed to maintain correct boost pressure.

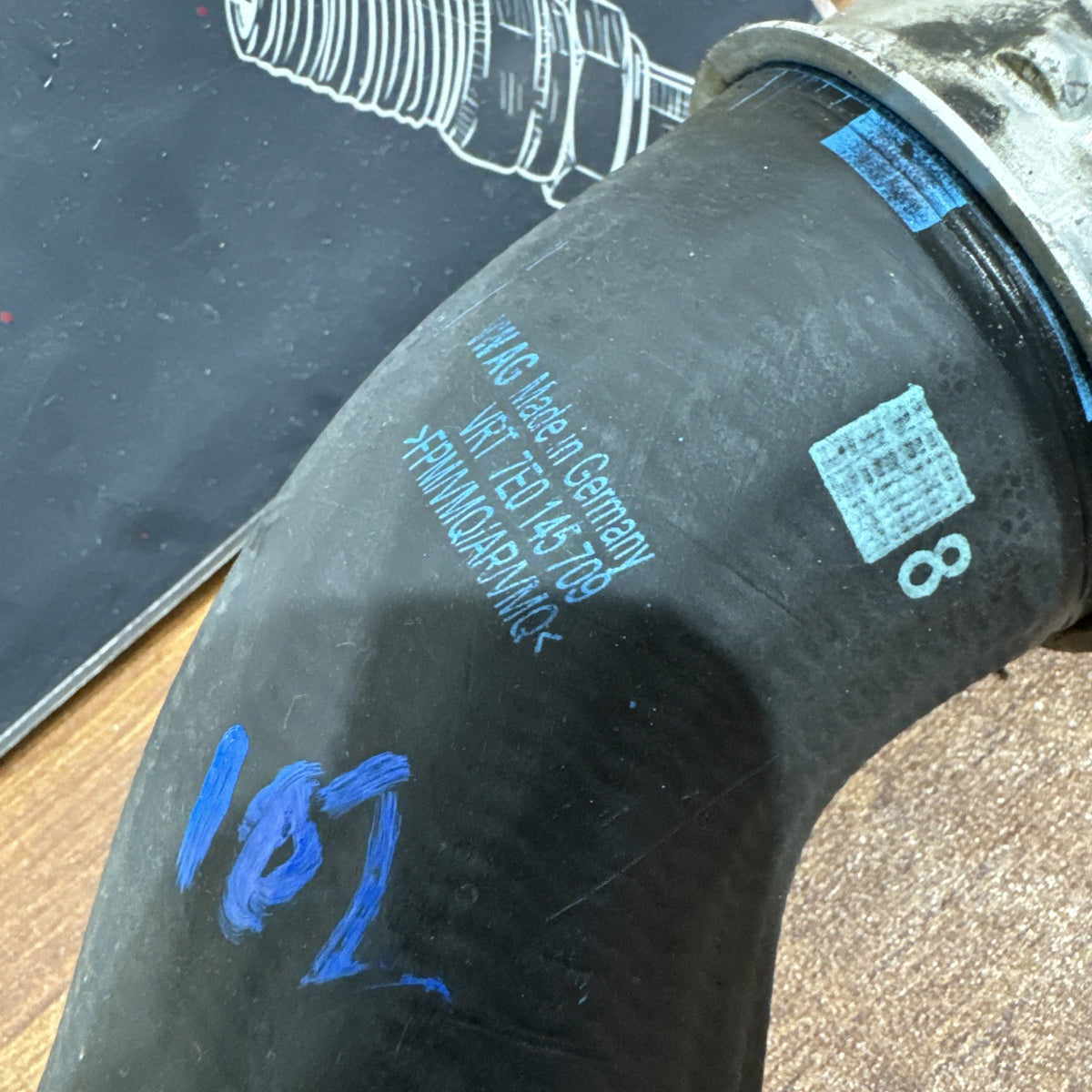

Part Number: 7E0145709A / 7E0145709D

VW OE Base Number: 7E0 145 709

Part Type: Turbo Intercooler Hose / Charge Air Pressure Pipe / Boost Hose

System: Turbocharger / Intercooler / Charge Air System

Fuel Type: Diesel

Engine Family: 2.0 TDI Common Rail

Vehicle: Volkswagen Transporter T5.1

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

The 7E0145709… pressure-hose family is confirmed by VAG parts data for Volkswagen Transporter applications from 2010 through 2015. The later 7E0145709D revision is specifically catalogued as a genuine VW pressure hose for Transporter and Campmobile applications throughout that period.

For T5.1 applications, confirmed fitment includes selected:

* Volkswagen Transporter T5.1 – 2010–2015

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Transporter Platform / Chassis Cab

* Caravelle / Multivan T5.1

* Selected 4Motion applications using the same charge-air arrangement

For OE 7E0145709D, aftermarket OE-cross-reference data confirms T5 applications with:

* 2.0 TDI – 84 HP / 62 kW

* 2.0 TDI – 102 HP / 75 kW

* 2.0 TDI – 114 HP / 84 kW

* 2.0 TDI – 140 HP / 103 kW

* Selected 2.0 TDI 4Motion

with a general manufacture range of 2009–2015.

Common T5.1 Engine Applications

The 2.0 TDI T5.1 range includes engines such as:

* CAAA – 84 PS

* CAAB – 102 PS

* CAAC – 140 PS

* CAAD / CAAE – selected applications

* CCHA / CCHB – selected applications

The exact hose should still be matched by OE number because turbo/charge-air routing varies between power outputs and drivetrain configurations.

I would not automatically include CFCA 180 PS BiTDI unless the original hose number matches, because the twin-turbo system uses different charge-air pipework in several locations.

Supersession / Revision Information

VAG catalogue data shows the base 7E0145709 pressure hose was later replaced by 7E0145709C in various markets during 2013–2014.

The later 7E0145709D is separately catalogued across 2010–2015 Transporter applications.

Therefore, if your physical pipe is marked 7E0145709A and also cross-references 7E0145709D, I would keep both numbers in the listing but tell buyers to compare the complete suffix, hose shape and connections before ordering.

Technical Information

This hose forms part of the engine’s pressurised charge-air system.

Its main functions include:

* Carrying compressed air through the turbo system

* Connecting intercooler / intake pipework

* Maintaining turbo boost pressure

* Delivering cooled compressed air toward the engine

* Supporting correct engine power and torque

* Helping the ECU maintain the requested air mass

* Preventing pressure loss from the charge-air circuit

Aftermarket technical data describes 7E0145709D specifically as a charge-air cooler hose / lower-section intercooler pipe, approximately 325 mm long, with connection diameters around 65 mm and 55 mm on an OE-equivalent replacement.

Turbo / Intercooler System Information

The hose works together with:

* Turbocharger

* Intercooler

* Charge-air pipes

* Boost hoses

* Intake manifold

* Throttle / anti-shudder valve

* MAP / boost pressure sensor

* MAF sensor

* EGR system

* Engine ECU

The turbocharger compresses incoming air. The intercooler reduces the air temperature before it enters the engine, increasing air density and supporting efficient combustion.

A leak anywhere in this system can reduce boost pressure significantly.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Hose is split

* Rubber has cracked

* Pipe has developed a hole

* Connection has become loose

* Retaining clip is damaged

* Seal / O-ring is worn

* Hose has become oil-soaked and softened

* Pipe has been damaged during engine work

* Connection flange is cracked

* Hose has collapsed or distorted

Common Symptoms of a Boost Leak

A leaking charge-air hose can cause:

* Loss of power

* Poor acceleration

* Turbo lag

* Limp mode

* Hissing / whooshing under acceleration

* Black exhaust smoke

* Engine management light

* Underboost fault codes

* Increased fuel consumption

* Oil staining around the hose connection

A light oil film inside diesel turbo hoses can be normal, but heavy external oily residue around a joint often indicates escaping boost pressure.

Important Diagnostic Information

Before replacing the hose, also inspect:

* Intercooler

* Adjacent boost pipes

* Retaining clips

* O-rings / seals

* Turbo outlet

* Intake manifold connections

* MAP sensor

* MAF sensor

* EGR system

* Turbo actuator

* Vacuum / boost-control system

A turbo underboost fault does not automatically mean the turbocharger itself has failed.

Split hoses, damaged seals and loose charge-air connections can produce very similar symptoms and should be checked first.

Installation

Typical installation may involve:

1. Allowing the engine to cool.

2. Removing the undertray or intake components where necessary.

3. Releasing the hose retaining clips.

4. Disconnecting the old charge-air hose.

5. Inspecting both mating connections.

6. Checking the sealing rings / O-rings.

7. Installing the replacement hose.

8. Securing the clips fully.

9. Checking adjacent charge-air joints.

10. Running the engine and checking for boost leaks.

New seals are advisable if the existing seals are flattened, damaged or hardened.

Programming / Coding

No programming or coding is required.

This is a mechanical charge-air component.

However, stored boost-pressure or underboost fault codes may need to be cleared following repair.

Important Compatibility Note

Before ordering, please compare:

* OE number 7E0145709A / 7E0145709D

* Full suffix on your original pipe

* Engine code

* Engine power output

* FWD / 4Motion configuration

* Hose length

* Hose bends and shape

* Connection diameters

* Retaining-clip arrangement

* Intercooler / intake connection

* Your original part against the listing photographs

* VIN where possible

The safest main fitment is:

VW Transporter T5.1 2.0 TDI 2010–2015 – selected 84–140 PS applications using the 7E0145709 pressure-hose family.

Do not assume every T5.1 2.0 TDI or BiTDI uses the same pipe purely because the engine capacity is 2.0 litres.

Condition

Genuine used Volkswagen part.

As a used turbo / intercooler hose, it may show normal signs of previous use including:

* Oil mist or residue

* Surface marks

* Light staining

* Wear around clip locations

* General age-related use

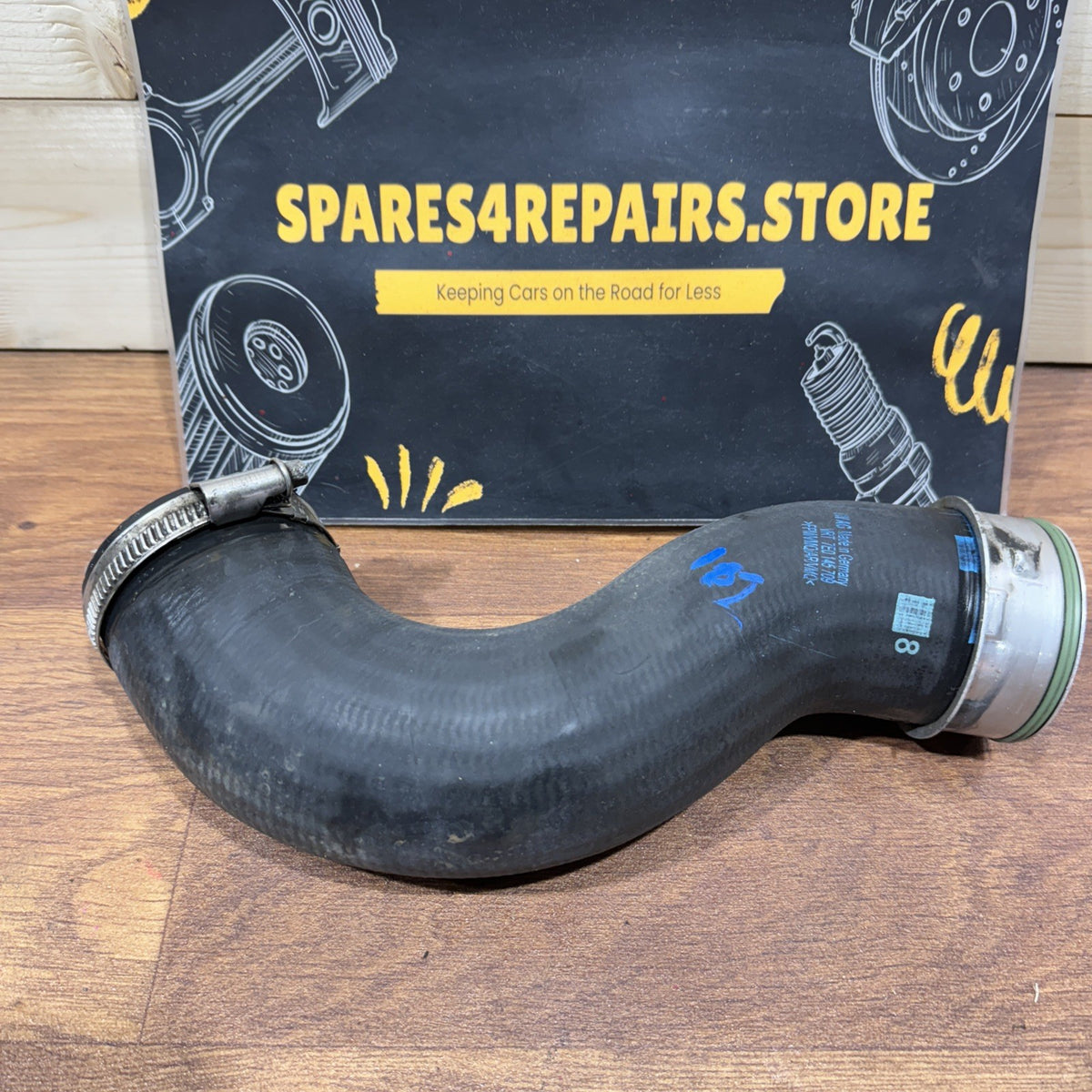

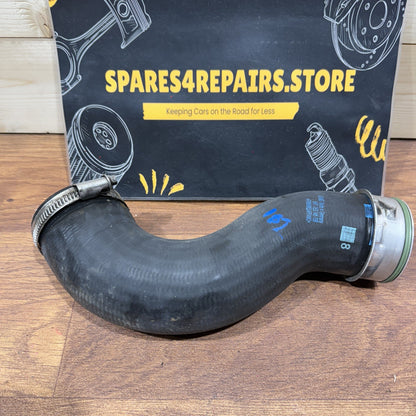

Please inspect all listing photographs carefully for the exact condition, hose ends, retaining points and sealing surfaces.

An ideal genuine replacement for a split, leaking, damaged or faulty VW Transporter T5.1 2.0 TDI turbo intercooler / charge-air pressure hose 7E0145709A / 7E0145709D.

For eBay, I’d make the core fitment T5.1 2.0 TDI 2010–2015, 84–140 PS, and leave 180 PS BiTDI out unless your actual hose number/shape confirms it.
