Vw Transporter T5 2.0 CAAA EGR connecting pipe d3l131521d

#123

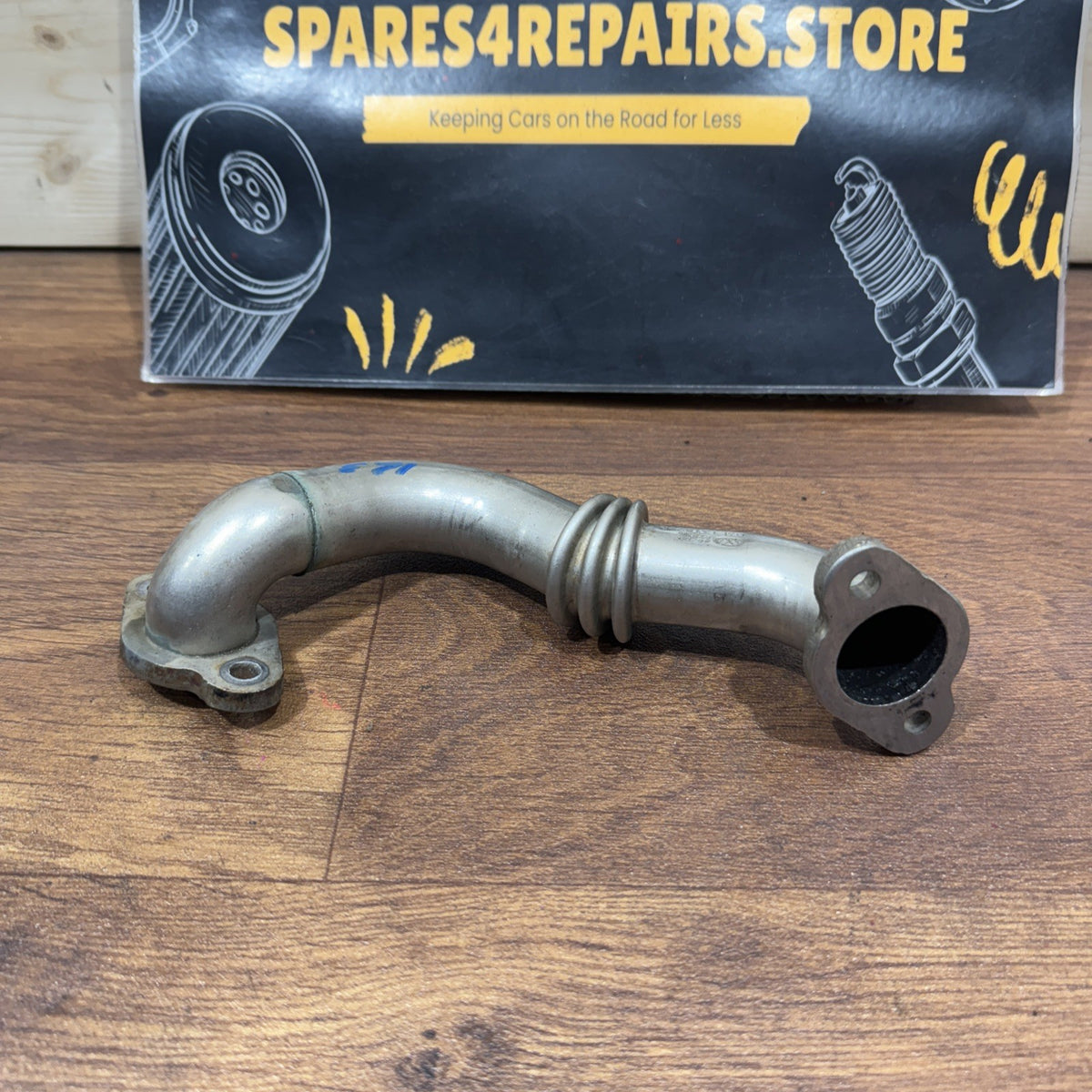

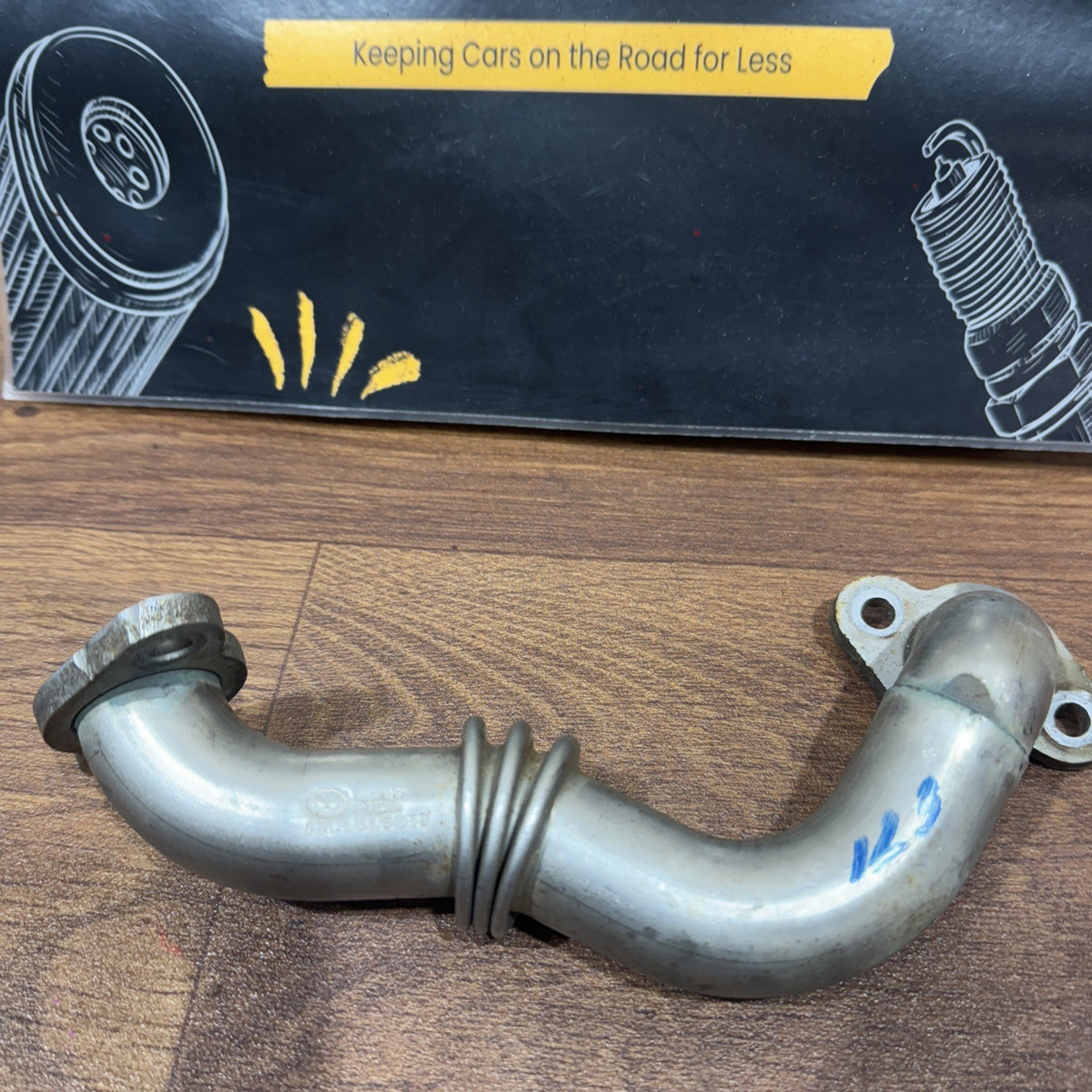

Genuine used Volkswagen Transporter T5.1 2.0 TDI EGR connecting pipe / exhaust gas recirculation pipe, part number 03L131521D. This metal pipe forms part of the diesel EGR system and provides a connection for routing exhaust gases through the EGR circuit before they are reintroduced into the engine intake system.

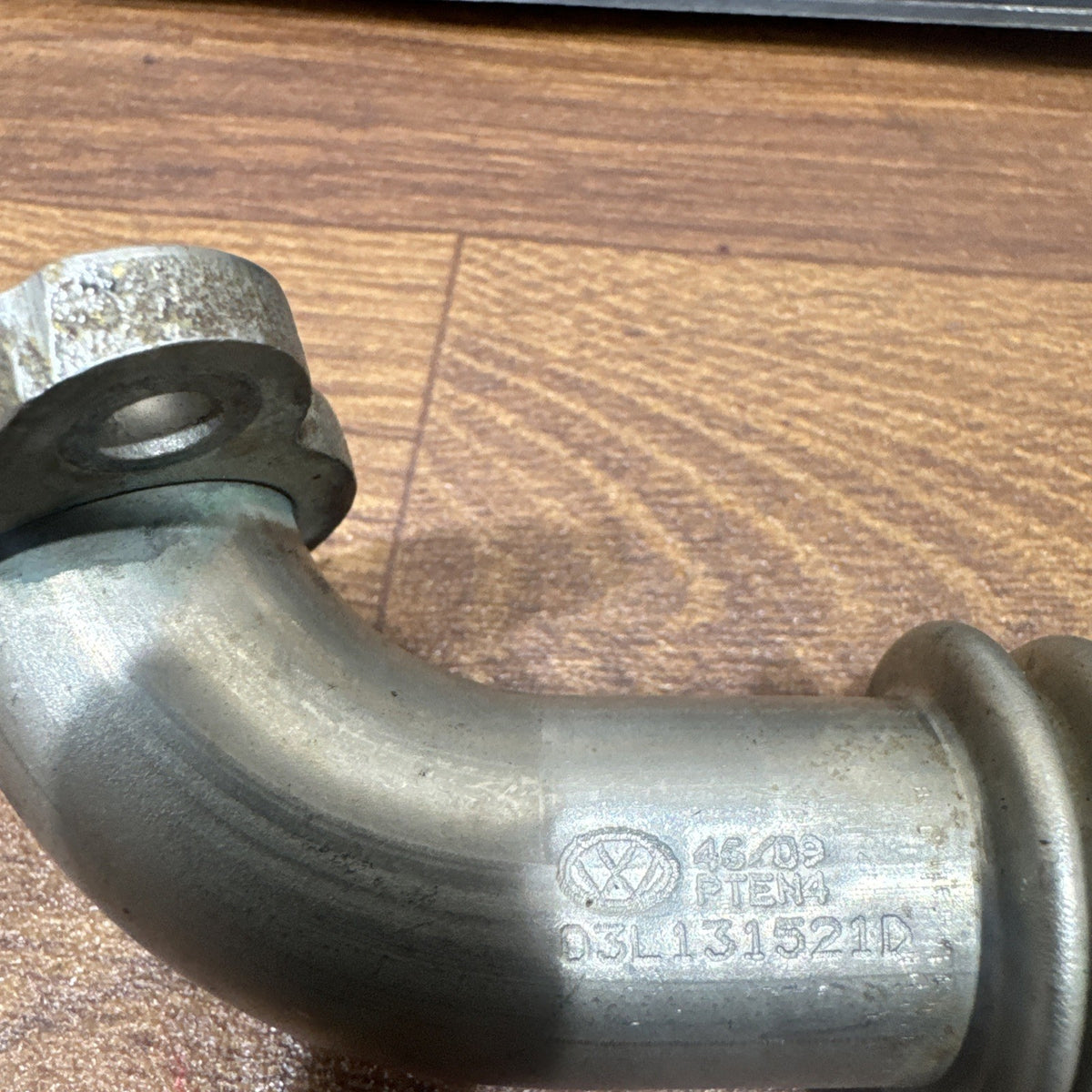

Part Number: 03L131521D

VW OE Number: 03L 131 521 D

Part Type: EGR Connecting Pipe / EGR Transfer Pipe / Exhaust Gas Recirculation Pipe

Engine Type: 2.0 TDI Common Rail

Known Engine Application: CAAA

CAAA Output: 62 kW / 84 PS

Position: Engine EGR / Exhaust Gas Recirculation System

Material: Metal / Steel

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5.1 – 2010–2015

* Volkswagen Caravelle T5.1 – 2010–2015

* Volkswagen Multivan T5.1 – selected versions

* Volkswagen California T5.1 – selected versions

* Panel van

* Kombi

* Shuttle / passenger variants

* Selected chassis cab / flatbed versions

Known application:

* 2.0 TDI CAAA – 62 kW / 84 PS

The 03L131521D pipe is not exclusive to the CAAA engine. It is catalogued across a number of VW Group 2.0 TDI applications, so compatibility should be established using the OE number, engine configuration and physical pipe design.

Technical Information

The EGR connecting pipe forms part of the Exhaust Gas Recirculation system.

The EGR system redirects a controlled quantity of exhaust gas back into the engine’s intake airflow.

This reduces peak combustion temperature and helps control nitrogen oxide (NOx) emissions.

The connecting pipe provides a sealed passage for these gases between components of the EGR system.

The 03L131521D reference is commonly described as the connecting pipe between the EGR/EGR cooler system and engine side.

EGR System Information

On the T5.1 2.0 TDI Common Rail engine, the EGR system operates together with components including:

* EGR valve

* EGR cooler

* EGR connecting pipes

* Engine ECU

* Intake manifold

* Throttle/intake control valve

* Exhaust system

* Temperature and pressure sensors

The ECU determines how much exhaust gas should be recirculated according to engine load, temperature and operating conditions.

The EGR pipe itself contains no electronic components. Its purpose is to provide the physical gas passage between EGR-system components.

Flexible Pipe Section

Depending on the exact version, the EGR connecting pipe incorporates a corrugated/flexible section.

This allows a small amount of movement caused by:

* Engine vibration

* Thermal expansion

* Heating and cooling cycles

* Movement between connected engine components

Over time, repeated heat cycles and vibration can cause the flexible section to crack.

This is one of the areas that should be inspected carefully on a used EGR pipe.

Common Symptoms / Reasons for Replacement

A cracked or leaking EGR pipe may cause:

* Exhaust gas smell in the engine bay

* Exhaust fumes around the vehicle

* Hissing or blowing noise

* Ticking noise from the engine area

* Soot deposits around the pipe

* Engine-management warning light

* EGR-related fault codes

* Reduced EGR system performance

* Increased emissions

* Visible crack in the flexible section

* Damaged flange

* Broken mounting point

A small crack can initially be difficult to see but may leave black soot deposits around the leaking area.

Important Diagnostic Information

Before replacing the pipe, inspect the complete EGR system.

Check:

* EGR pipe flexible section

* Flanges

* Gaskets/seals

* Mounting bolts

* EGR valve

* EGR cooler

* EGR cooler connections

* Intake manifold

* Exhaust connections

* Nearby wiring and hoses

If black soot is visible around one of the flanges, the problem may be a failed gasket or loose connection rather than a cracked pipe.

Carbon & Soot Information

Because exhaust gas passes directly through this component, internal carbon/soot deposits are normal on a used EGR pipe.

Some carbon contamination does not necessarily indicate that the component is faulty.

However, excessive restriction should be investigated because heavy carbon accumulation elsewhere in the EGR/intake system can affect EGR flow.

If the vehicle has EGR-flow fault codes, the EGR valve, cooler and intake system should also be inspected.

Installation

Before installation:

* Allow the engine/exhaust system to cool completely

* Inspect the replacement pipe for cracks

* Check both flange surfaces

* Clean mating surfaces appropriately

* Inspect mounting hardware

* Use suitable replacement gaskets/seals where required

During installation:

* Position the pipe without forcing it

* Align both flanges correctly

* Start fasteners before final tightening

* Avoid twisting or stressing the flexible section

* Tighten fasteners to the correct VW specification

After installation, start the engine and check carefully for exhaust leakage around both connections.

Programming / Coding

No programming or coding is required.

This is a mechanical EGR-system component.

If EGR-related diagnostic fault codes were previously stored, they may need to be cleared after the underlying fault has been repaired.

Important Compatibility Note

Please compare before ordering:

* OE number – 03L131521D

* Engine code

* Pipe shape

* Flexible section

* Flange design

* Bolt-hole positions

* Mounting points

* EGR system configuration

* Vehicle production date

Although this part is known to fit selected Transporter T5.1 2.0 TDI CAAA applications, 03L131521D is also used with other 2.0 TDI engines and VW Group vehicles.

Do not purchase solely because your vehicle has a 2.0 TDI engine.

Matching 03L131521D directly with the original component is strongly recommended.

Condition

Genuine Volkswagen used EGR system component.

As a used exhaust/EGR part, normal signs of previous use may include:

* Carbon deposits

* Black soot

* Heat discolouration

* Surface oxidation

* Light corrosion

* Scratches and marks

* General signs of removal

Please inspect all listing photographs carefully, particularly the flexible section, flanges, mounting points and pipe body.

New EGR pipe gaskets/seals are recommended during installation where applicable.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a cracked, leaking or damaged Volkswagen Transporter T5.1 2.0 TDI CAAA EGR connecting pipe, provided 03L131521D matches the original component.
