VW TRANSPORTER T5 2008 FRONT RIGHT DRIVERS WIRING LOOM SHUTTLE 7H0971161JQ

#123

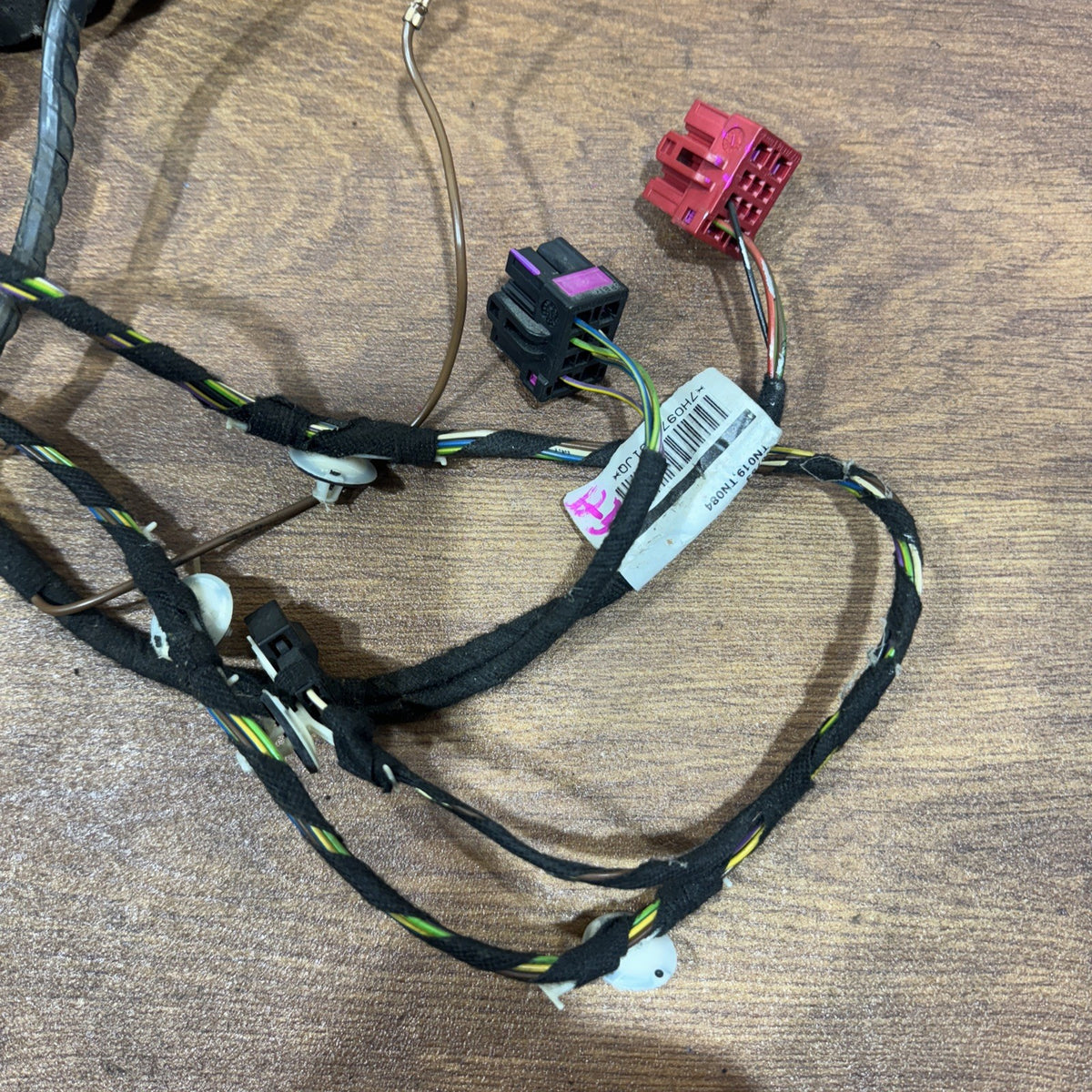

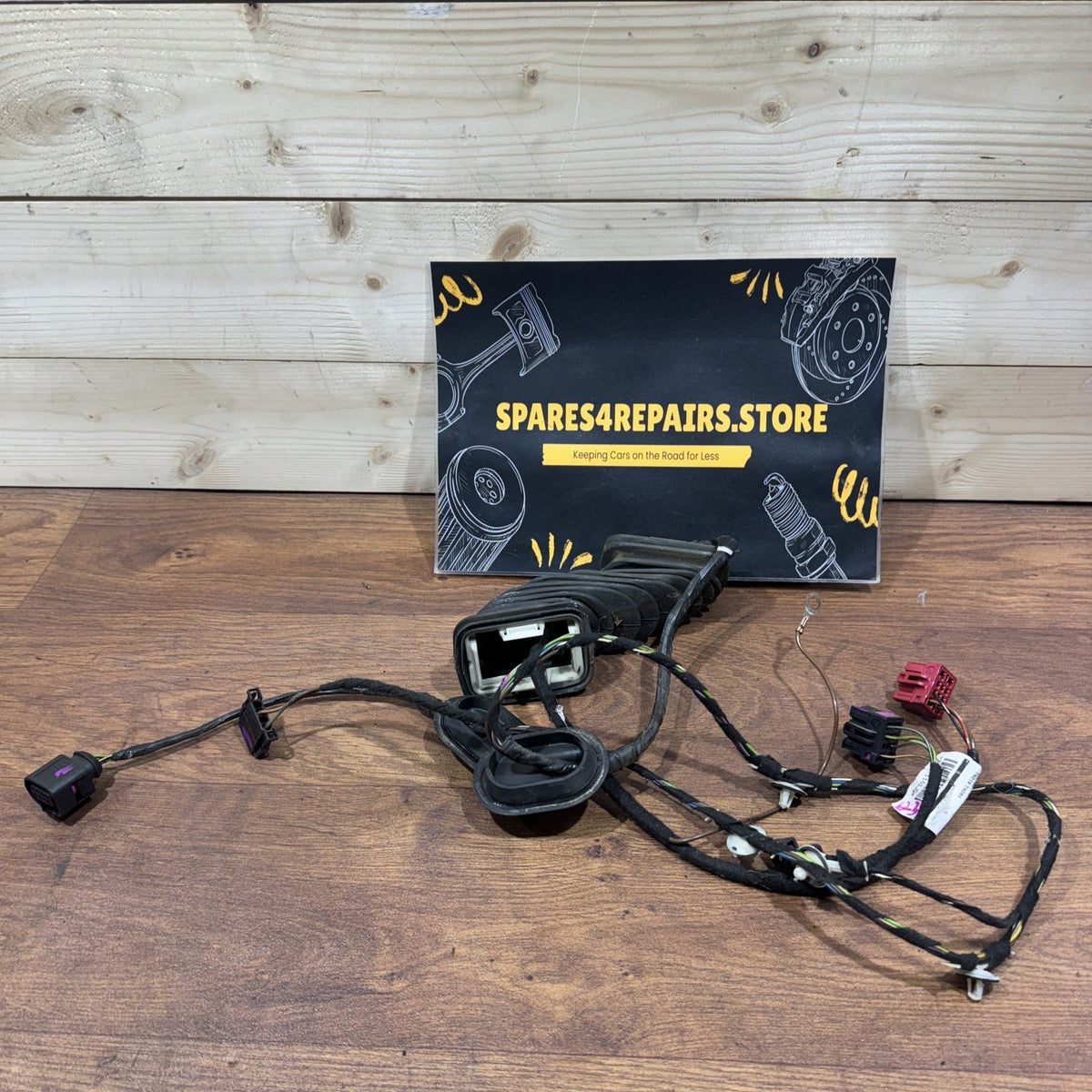

Genuine used Volkswagen Transporter T5 front right driver’s door wiring loom / wiring harness, part number 7H0971161JQ, removed from a 2008 VW Transporter T5 Shuttle UK RHD vehicle.

This factory door harness carries the electrical connections between the vehicle’s main wiring system and the electrical components fitted within the front driver’s door.

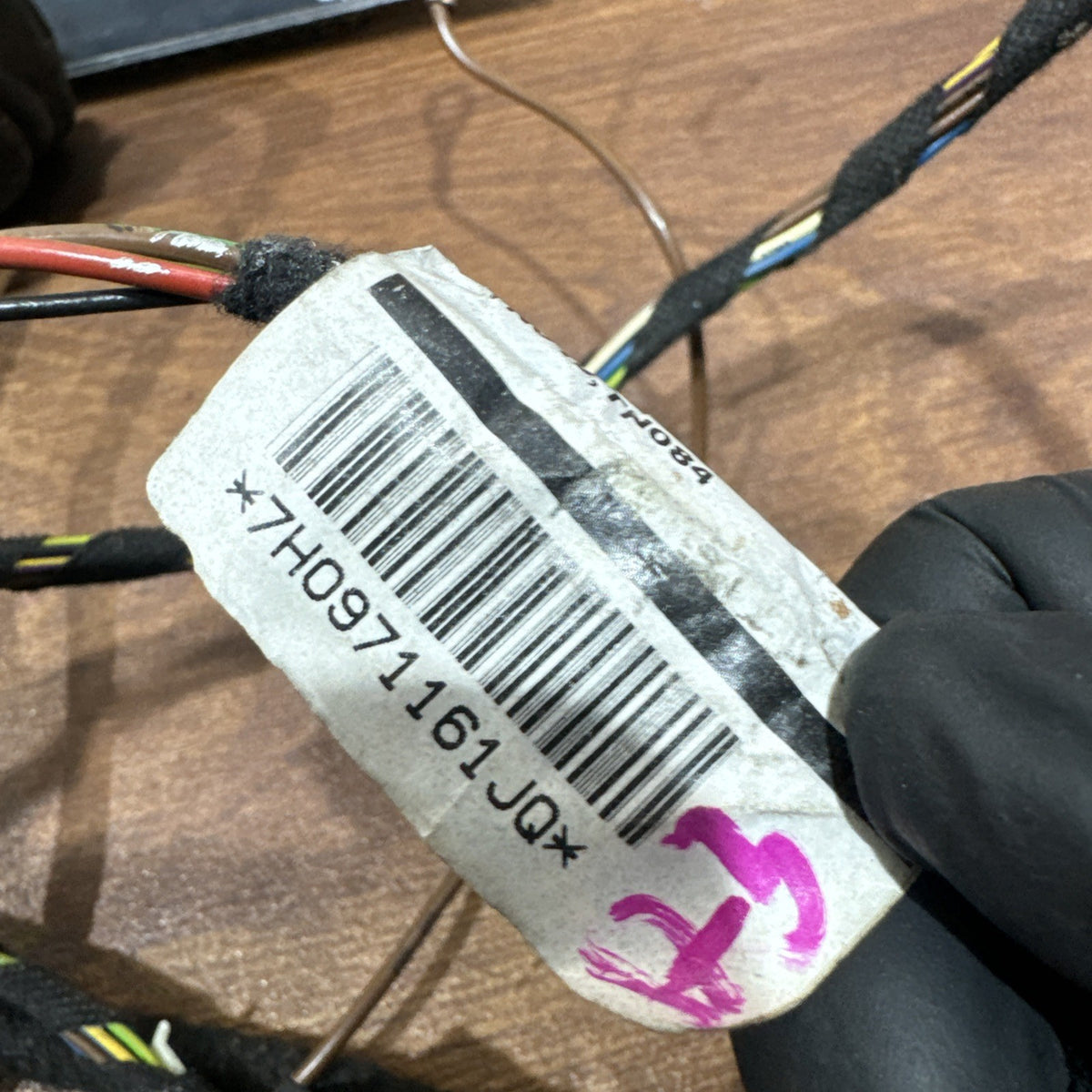

Part Number: 7H0971161JQ

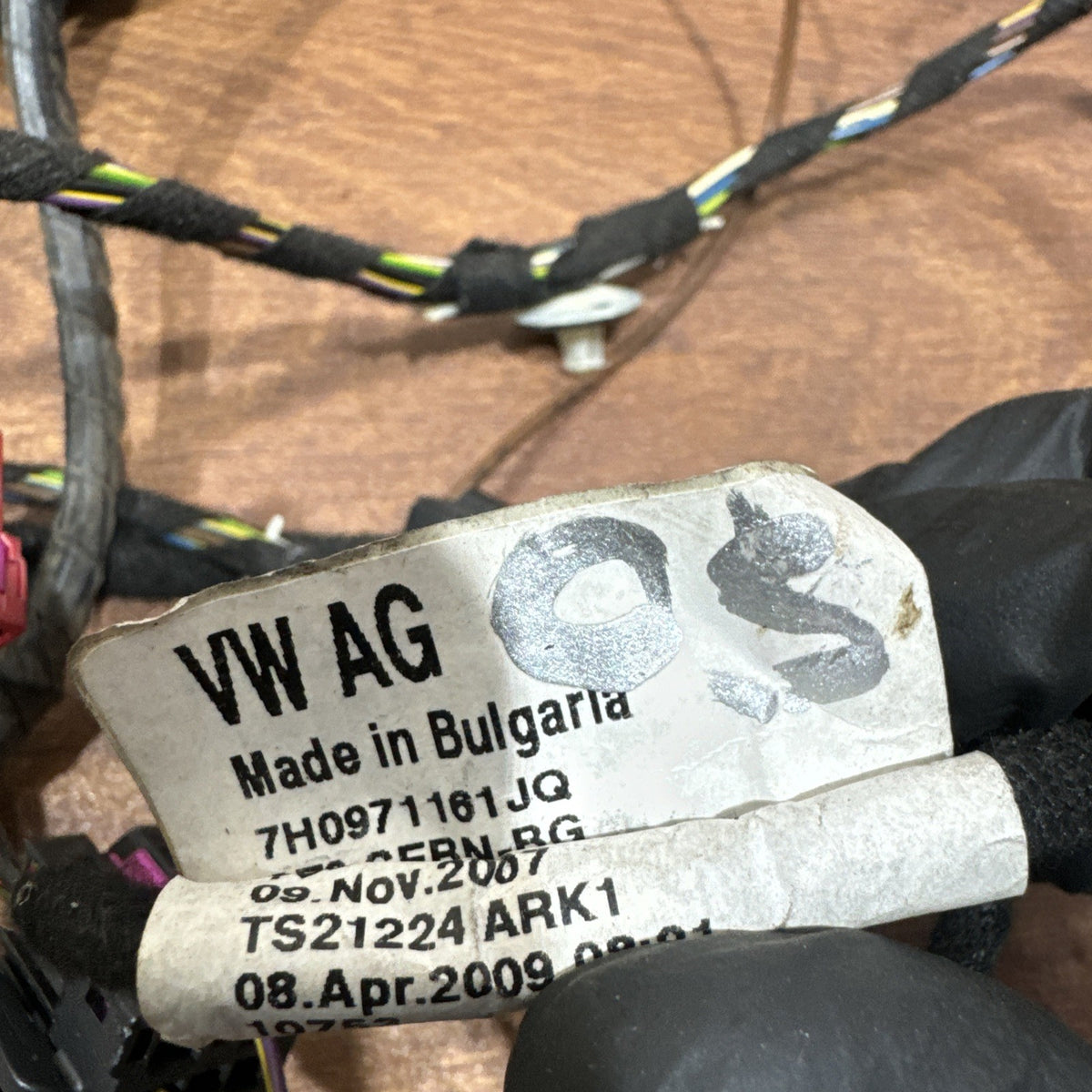

VW OE Number: 7H0 971 161 JQ

Superseding Reference: 7H0971161LF – catalogue replacement reference

Part Type: Front Door Wiring Loom / Door Wiring Harness / Cable Harness

Position: Front Right Door

UK Vehicle Side: O/S – Driver’s Side

Vehicle Configuration: UK RHD

Donor Vehicle: Volkswagen Transporter T5 Shuttle – 2008

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected versions

* Volkswagen Multivan T5 – selected versions

* Volkswagen Shuttle T5

* Transporter Kombi / passenger variants

Known donor application:

* 2008 Volkswagen Transporter T5 Shuttle

* UK Right-Hand Drive

* Front Right / O/S Driver’s Door

The exact door wiring loom fitted to a T5 varies considerably according to the vehicle’s factory equipment.

Therefore, 7H0971161JQ should be matched directly against the original wiring loom whenever possible.

Technical Information

The front door wiring harness distributes electrical power and control signals to components installed within the driver’s door.

Depending on vehicle specification, these can include:

* Central locking / door-lock mechanism

* Door-open detection

* Electric or manual window-related connections

* Electrically adjustable mirror

* Heated mirror

* Door speaker

* Door control switches

* Courtesy/door lighting where equipped

* Associated earth connections

Not every 7H0971161JQ application necessarily uses every function listed above.

The equipment fitted to the donor vehicle and the connectors physically present on the loom determine its exact specification.

Important Equipment Specification

T5 door wiring looms were produced in numerous configurations.

Differences can relate to:

* Manual or electric windows

* Manual or electric mirrors

* Heated mirrors

* Central locking

* Speaker configuration

* Additional door equipment

* RHD versus LHD vehicle configuration

UK used-parts data specifically identifies 7H0971161JQ on T5 O/S driver’s-door looms, including manual-window configurations.

For this reason, buyers should not purchase solely by model and year.

The complete OE number and connectors should be compared with the original loom.

Door Wiring System Information

The door loom connects the electrical equipment inside the door to the vehicle’s main electrical system.

Because the door opens and closes repeatedly, part of the harness is subjected to continuous movement.

Over many years this can cause individual wires to:

* Stretch

* Crack internally

* Break

* Develop intermittent continuity

* Suffer damaged insulation

The flexible section between the body and door is particularly important to inspect when diagnosing electrical faults.

Common Symptoms of a Faulty Door Wiring Loom

A damaged front-door harness can potentially cause:

* Central locking not operating correctly

* Driver’s door not locking or unlocking

* Electric mirror not operating

* Heated mirror not working

* Door speaker cutting out

* Electric window problems on equipped vehicles

* Door-open signal problems

* Intermittent electrical faults

* Functions working only when the door is moved

* Blown fuse caused by damaged wiring

* Communication/electrical fault codes

* Multiple door functions failing simultaneously

Intermittent faults that change when the door is opened or closed are particularly suggestive of damaged wiring around the flexible door-to-body section.

Important Diagnostic Information

Before replacing the complete wiring loom, inspect:

* Door-to-body wiring section

* Electrical connectors

* Connector pins

* Earth connections

* Door lock/latch

* Window components where fitted

* Mirror wiring

* Speaker connections

* Relevant fuses

* Main vehicle-side connector

If several unrelated electrical components inside the same door fail simultaneously, checking the common wiring harness and connections is particularly important.

Wiring Inspection

Inspect the loom carefully for:

* Broken wires

* Cracked insulation

* Previous repairs

* Corroded terminals

* Bent connector pins

* Water ingress

* Heat damage

* Chafing

* Damaged plugs

* Missing retaining clips

A wire can sometimes be broken internally while the outer insulation still appears intact.

Continuity testing with a multimeter can help locate these faults.

Installation

Installation normally requires removal of the driver’s door trim and access to the internal door wiring.

During installation:

* Disconnect the vehicle battery where appropriate

* Compare the replacement loom with the original

* Check every electrical connector

* Route the loom through the original locations

* Use the factory retaining clips

* Avoid trapping or pinching wiring

* Ensure the door-to-body flexible section is positioned correctly

* Secure all electrical connectors fully

After installation, test all applicable door functions before refitting the interior trim completely.

Programming / Coding

The wiring loom itself does not require programming or coding.

It is a passive electrical harness.

However, if other electronic components are changed at the same time, separate diagnostic procedures may be required depending on the vehicle specification.

Supersession Information

The original reference:

7H0971161JQ

is catalogued as having been superseded by:

7H0971161LF

This does not mean that every used JQ and LF loom should automatically be considered physically interchangeable without checking equipment specification.

For a used replacement, matching the original 7H0971161JQ loom and connector configuration remains the safest option.

Important RHD / LHD & Side Information

There is conflicting catalogue/listing information regarding the side designation of 7H0971161JQ.

Some European LHD sources describe it as a front-left door loom, while UK parts listings identify it as an O/S driver’s/front-right door loom.

For this listing, the component is identified according to its known donor application:

UK RHD Volkswagen Transporter T5 Shuttle – Front Right / O/S Driver’s Door.

Buyers outside the UK, or anyone converting between RHD/LHD specifications, should not rely solely on the words “left”, “right” or “driver’s side”.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H0971161JQ

* RHD/LHD configuration

* Front door side

* Manual/electric window specification

* Mirror specification

* Central-locking configuration

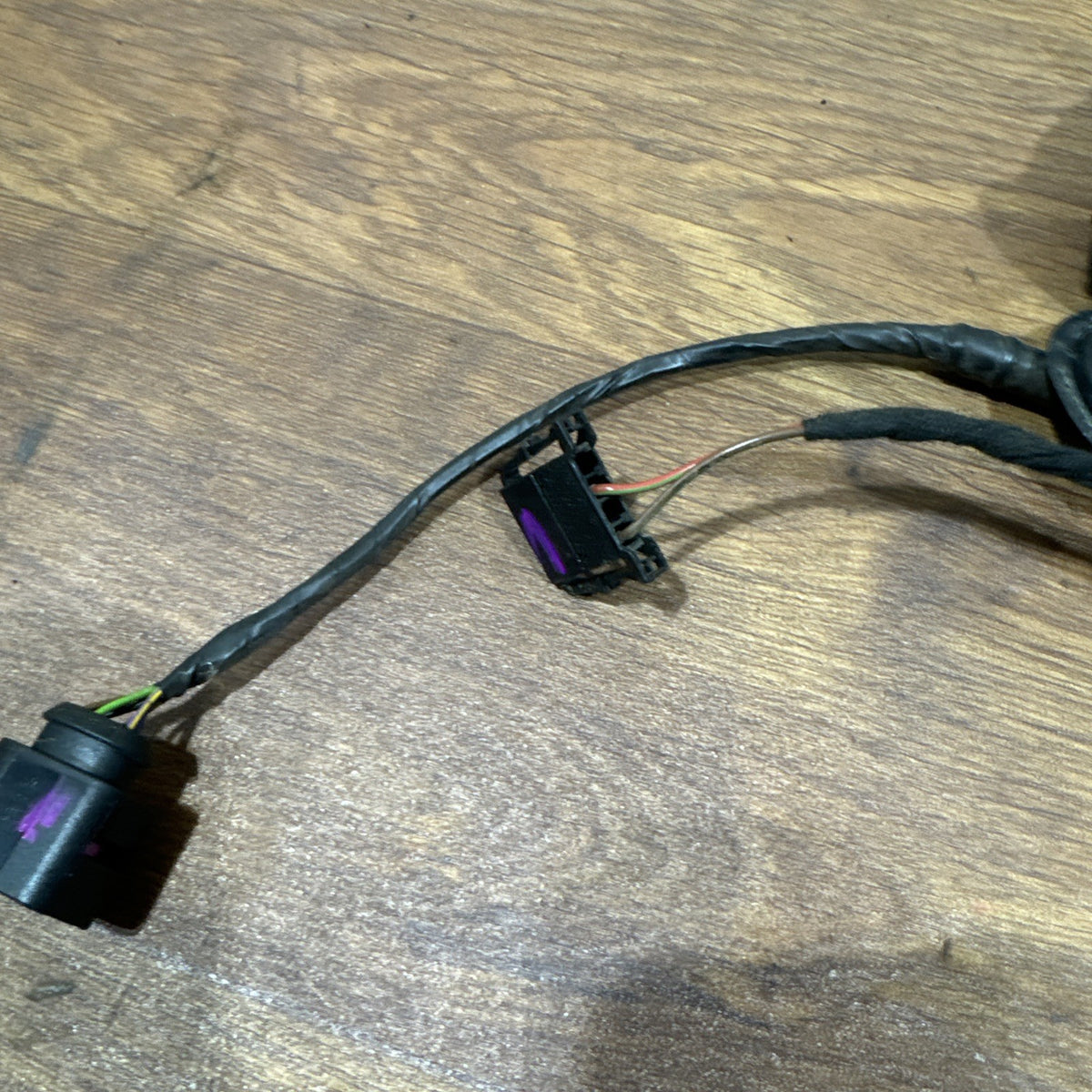

* Number of electrical connectors

* Connector shapes

* Connector pin counts

* Speaker connections

* Overall loom layout

* Vehicle production date

Matching the complete 7H0971161JQ number and all electrical connectors with the original loom is strongly recommended.

A loom from the correct year and model may still be incompatible if the vehicle has different factory equipment.

Condition

Genuine Volkswagen used electrical component.

As a used door wiring harness, normal signs of previous installation may include:

* Surface marks

* Dirt

* Tape wear

* Minor cosmetic wear

* Marks around connectors

* General signs of removal

Please inspect all listing photographs carefully, particularly the electrical plugs, pins, wiring insulation, flexible door section and retaining clips.

Any plugs, brackets, clips or additional components are included only where shown in the listing photographs.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a damaged, broken or faulty Volkswagen Transporter T5 Shuttle front right O/S driver’s-door wiring loom, provided 7H0971161JQ and the connector/equipment configuration match the original harness.
