VW TRANSPORTER T5 2010 Rear Right Door Top Hinge 7H0827152

#102

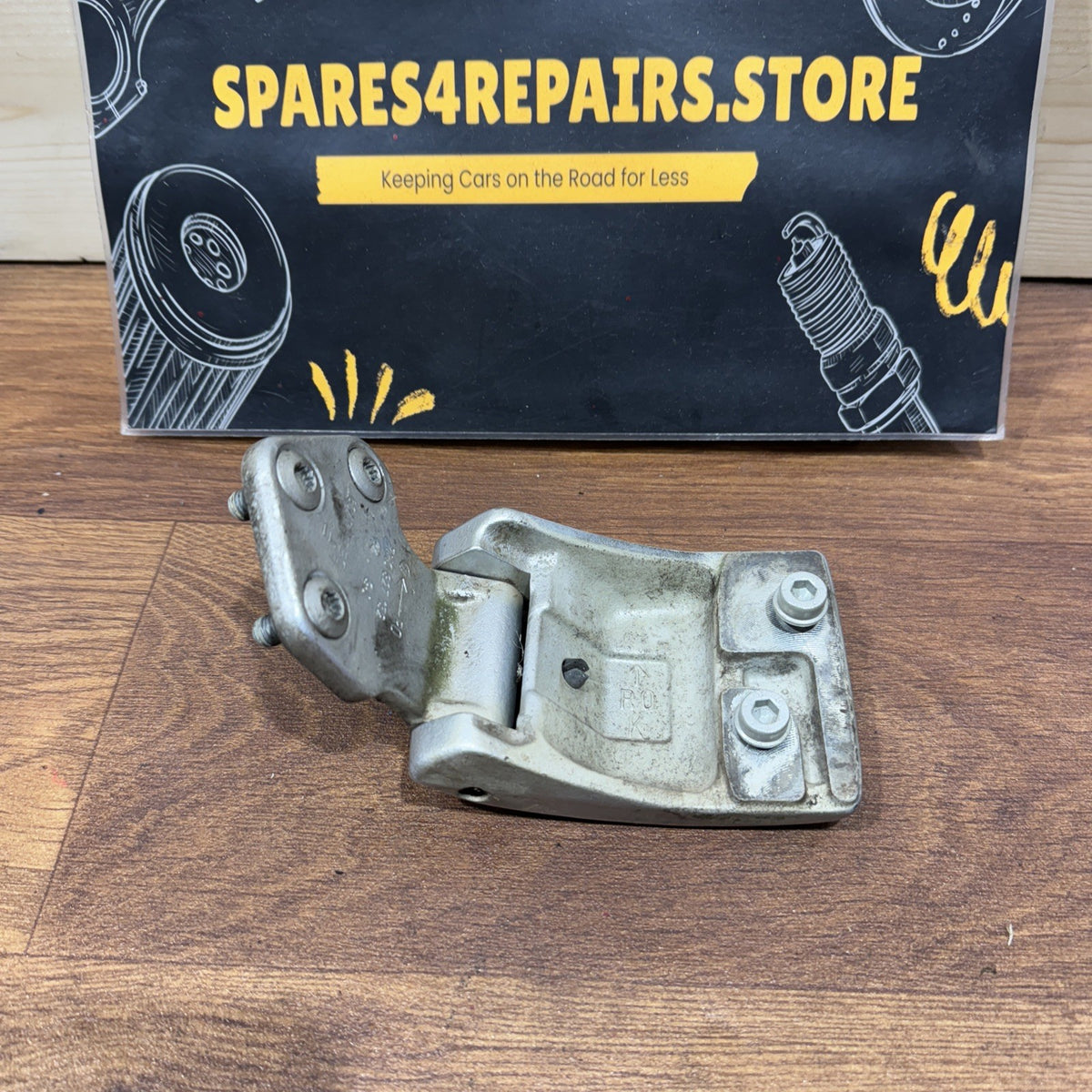

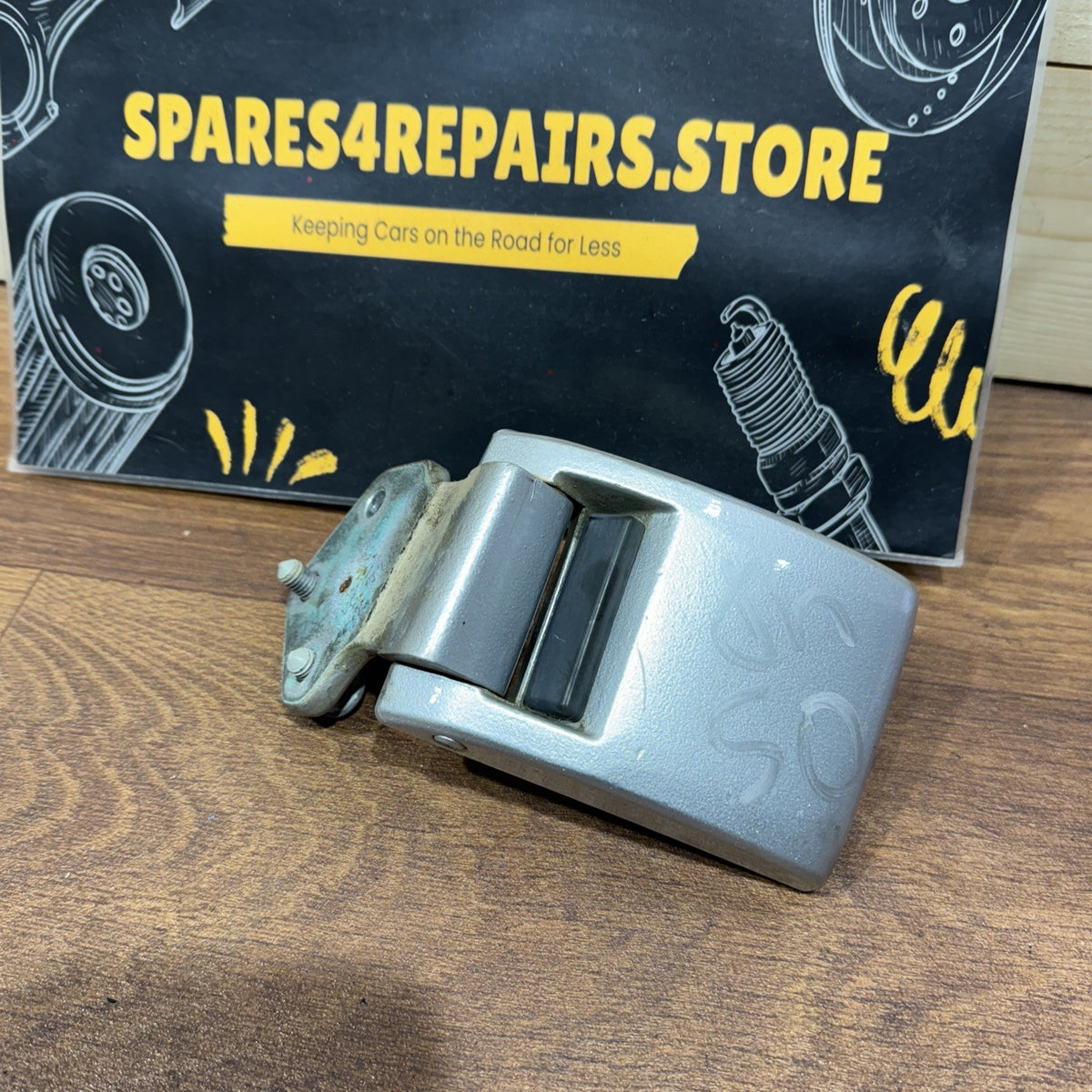

♻ GENUINE VW TRANSPORTER T5 REAR RIGHT UPPER BARN DOOR HINGE 7H0827152 ♻

Genuine used Volkswagen Transporter T5 rear right upper barn door / wing door hinge, removed from a 2010 vehicle. This hinge supports the upper section of the right-hand rear door and allows the barn door to open and close while maintaining correct alignment with the body and locking system.

Part Number: 7H0827152

VW OE Base Number: 7H0 827 152

Part Type: Rear Door Hinge / Upper Barn Door Hinge / Wing Door Hinge

Position: Rear Right Upper

UK Vehicle Side: O/S / Offside / Driver Side

Rear Door Type: Twin Rear Barn Doors / Wing Doors

Donor Year: 2010

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

VW parts catalogues confirm the 7H0827152… family as the rear right upper hinge for Transporter T5 twin rear wing-door configurations. Exact suffix depends on production date and door opening-angle specification.

Confirmed applications include selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 – 2010–2015

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Selected Caravelle / passenger derivatives equipped with twin rear wing doors

For 2010 production, Volkswagen lists:

* 7H0827152F – Right Upper, PR code 5V3, standard rear-door hinge/opening arrangement

* 7H0827152J – Right Upper, PR code 5V4, increased-opening-angle rear doors

Important Suffix / Opening-Angle Information

The base casting or seller reference may be shown simply as 7H0827152, but Volkswagen used several suffix revisions.

Documented right-upper versions include:

* 7H0827152B

* 7H0827152F – standard opening, PR 5V3

* 7H0827152A

* 7H0827152C

* 7H0827152K

* 7H0827152J – increased opening angle, PR 5V4

Earlier catalogue data also distinguishes the standard and increased-opening versions, so suffix and hinge geometry matter.

Technical Information

The upper rear-door hinge mounts between the right-hand rear wing door and vehicle body.

Its main functions include:

* Supporting the rear door

* Providing the upper pivot point

* Maintaining correct door height

* Keeping the rear door aligned with the body opening

* Maintaining correct latch and striker alignment

* Allowing smooth opening and closing

* Supporting the door at its intended opening angle

The upper hinge works together with the corresponding lower hinge to carry the weight of the rear door.

Rear Barn Door System Information

The hinge operates together with:

* Rear right lower hinge

* Rear door check strap

* Upper door latch

* Lower door latch

* Rear door lock mechanism

* Door striker

* Door seals

* Door handle linkage

Volkswagen used different hinge specifications depending on whether the rear doors had a standard opening angle or increased opening angle.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Rear door has dropped

* Door sits unevenly

* Door requires lifting to close

* Hinge is bent

* Excessive hinge play is present

* Door catches the body or opposite door

* Hinge makes cracking or grinding noises

* Accident damage has distorted the hinge

* Hinge mounting points are damaged

* Severe corrosion is present

Important Diagnostic Information

Before replacing the hinge, also inspect:

* Rear right lower hinge

* Door check strap

* Upper and lower latch mechanisms

* Door alignment

* Body mounting points

* Door shell

* Strikers

If the door has dropped, wear or distortion may be present in both hinges, not only the upper hinge.

If the vehicle has suffered rear-impact damage, the body hinge mounting area should also be checked for distortion.

Installation

Typical installation may involve:

1. Supporting the rear door securely.

2. Marking the original hinge position.

3. Removing the upper hinge fixings.

4. Removing the existing hinge.

5. Installing the replacement hinge.

6. Loosely aligning the rear door.

7. Adjusting height and panel gaps.

8. Tightening all mounting bolts correctly.

9. Checking latch engagement.

10. Testing full door opening and closing.

The rear wing door is large and heavy, so correct support during replacement is important.

Programming / Coding

No programming or coding is required.

This is a purely mechanical body component.

Important Compatibility Note

Before ordering, please compare:

* Base number 7H0827152

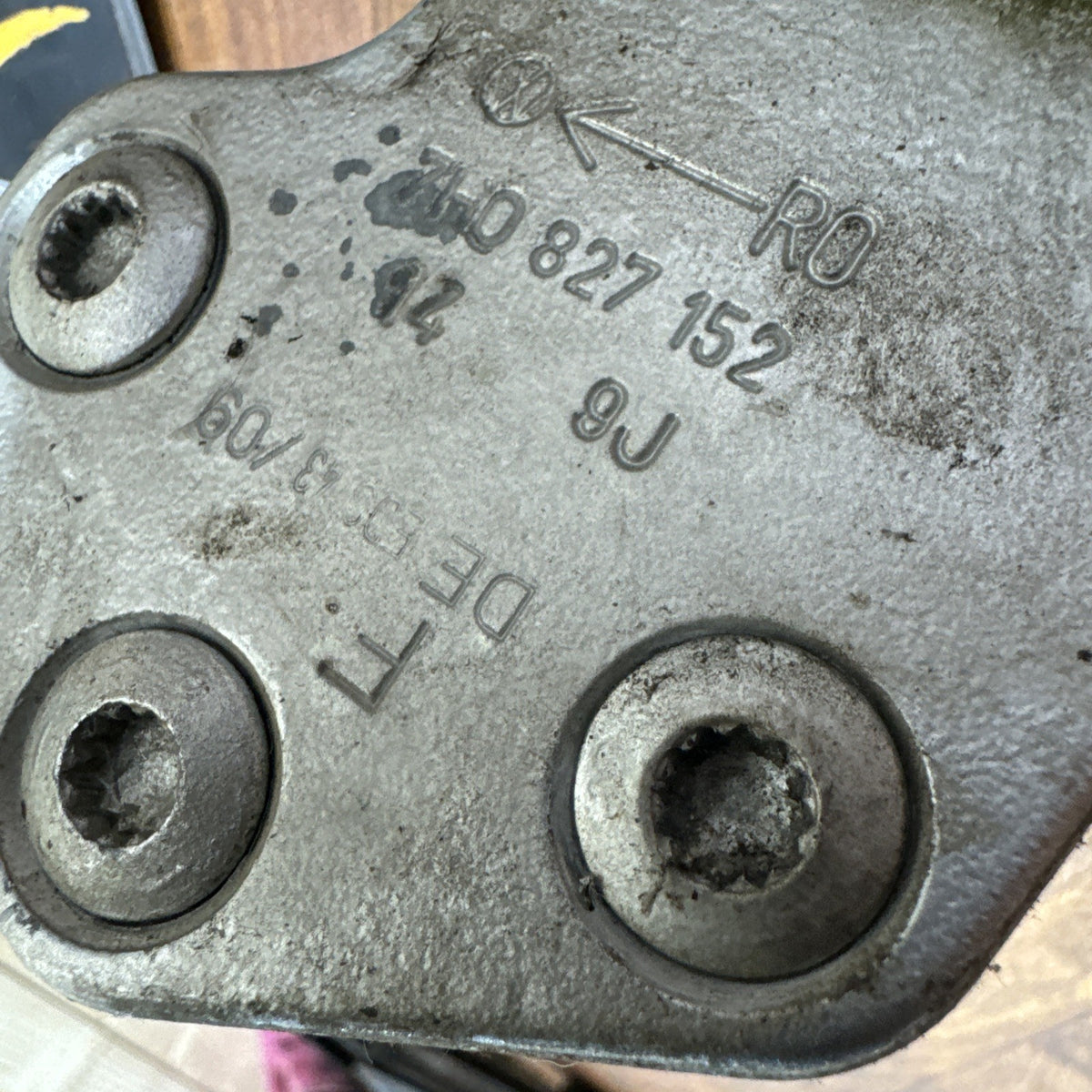

* Full suffix stamped on the hinge

* Rear right / upper position

* Twin barn-door configuration

* PR code 5V3 or 5V4

* Standard or increased opening angle

* Hinge shape

* Mounting-hole pattern

* Your original hinge against the listing photographs

* VIN where possible

For a 2010 Transporter, the OE catalogue specifically shows 7H0827152F for standard-opening rear doors and 7H0827152J for increased-opening-angle doors.

Do not confuse this with the rear right lower hinge, which uses the 7H0827154… family.

Condition

Genuine used Volkswagen part.

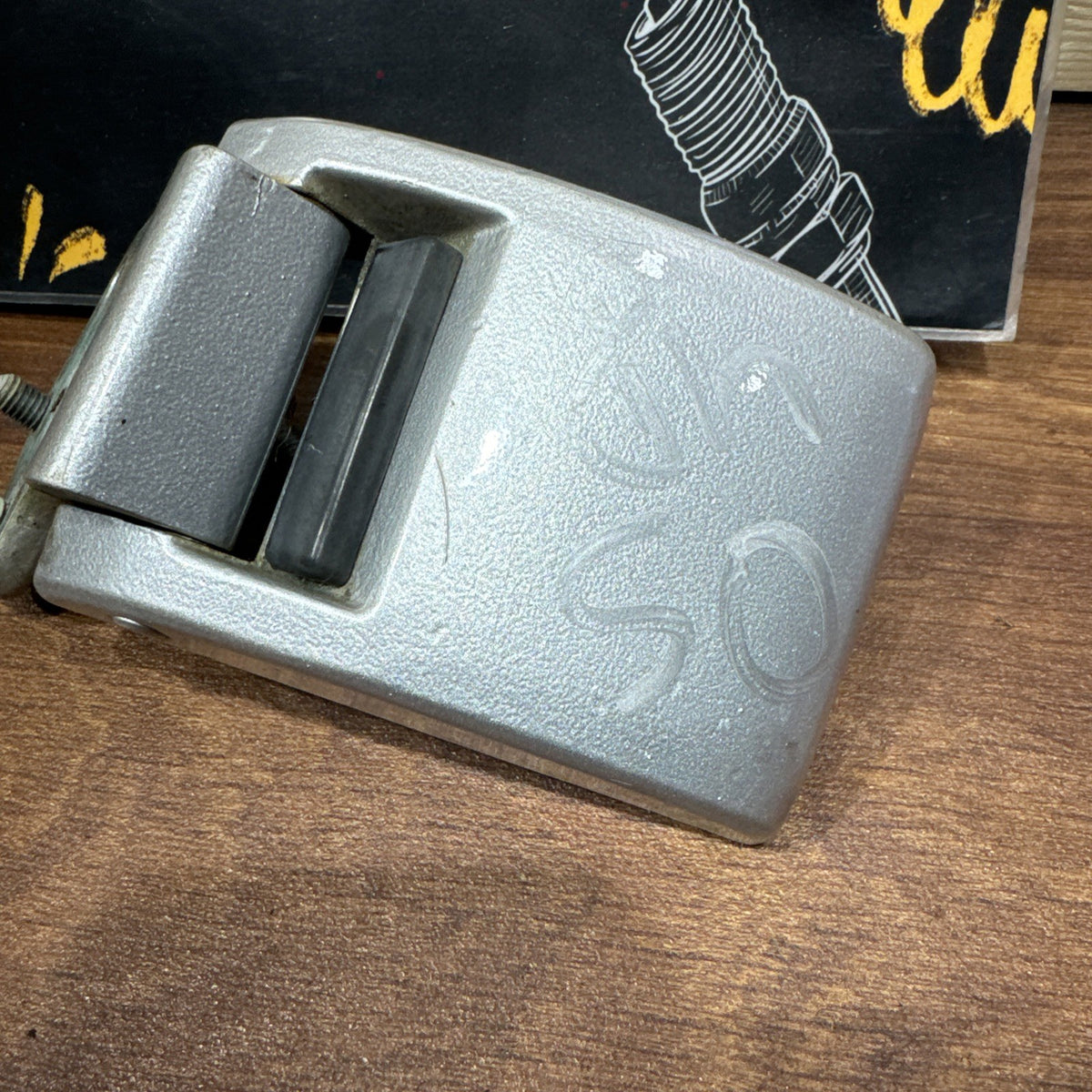

As a used mechanical body component, it may show normal signs of previous use including:

* Surface scratches

* Paint marks

* Grease residue

* Light corrosion

* Marks around mounting bolts

* General age-related wear

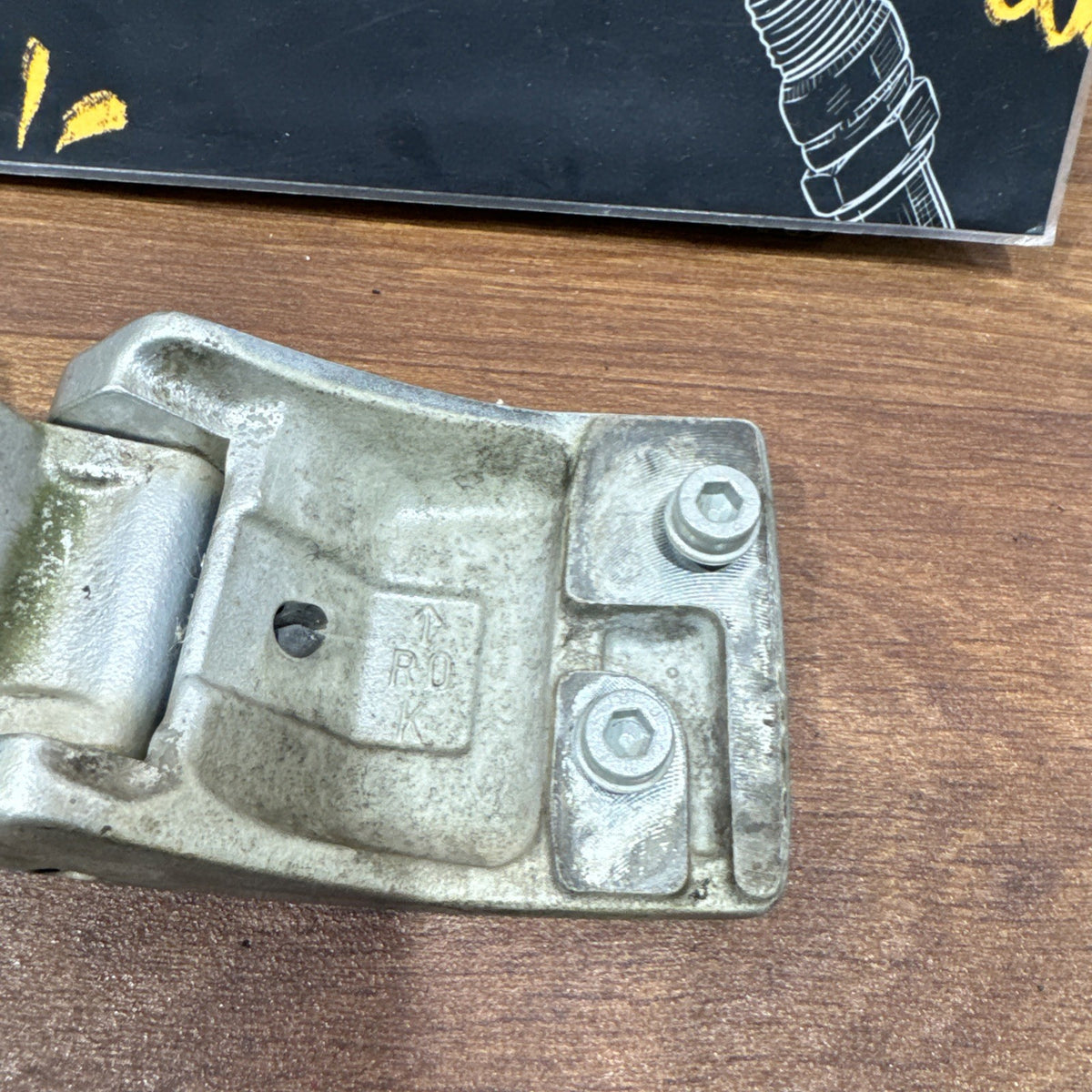

Please inspect all listing photographs carefully for the exact suffix, opening-angle design, pivot condition and mounting points.

An ideal genuine replacement for a bent, worn, damaged or loose VW Transporter T5/T5.1 rear right O/S upper barn door hinge 7H0827152.
