VW Transporter T5 Caravelle 2.5 TDI 2003-10 Speedometer Cluster 7H0920951T

#12

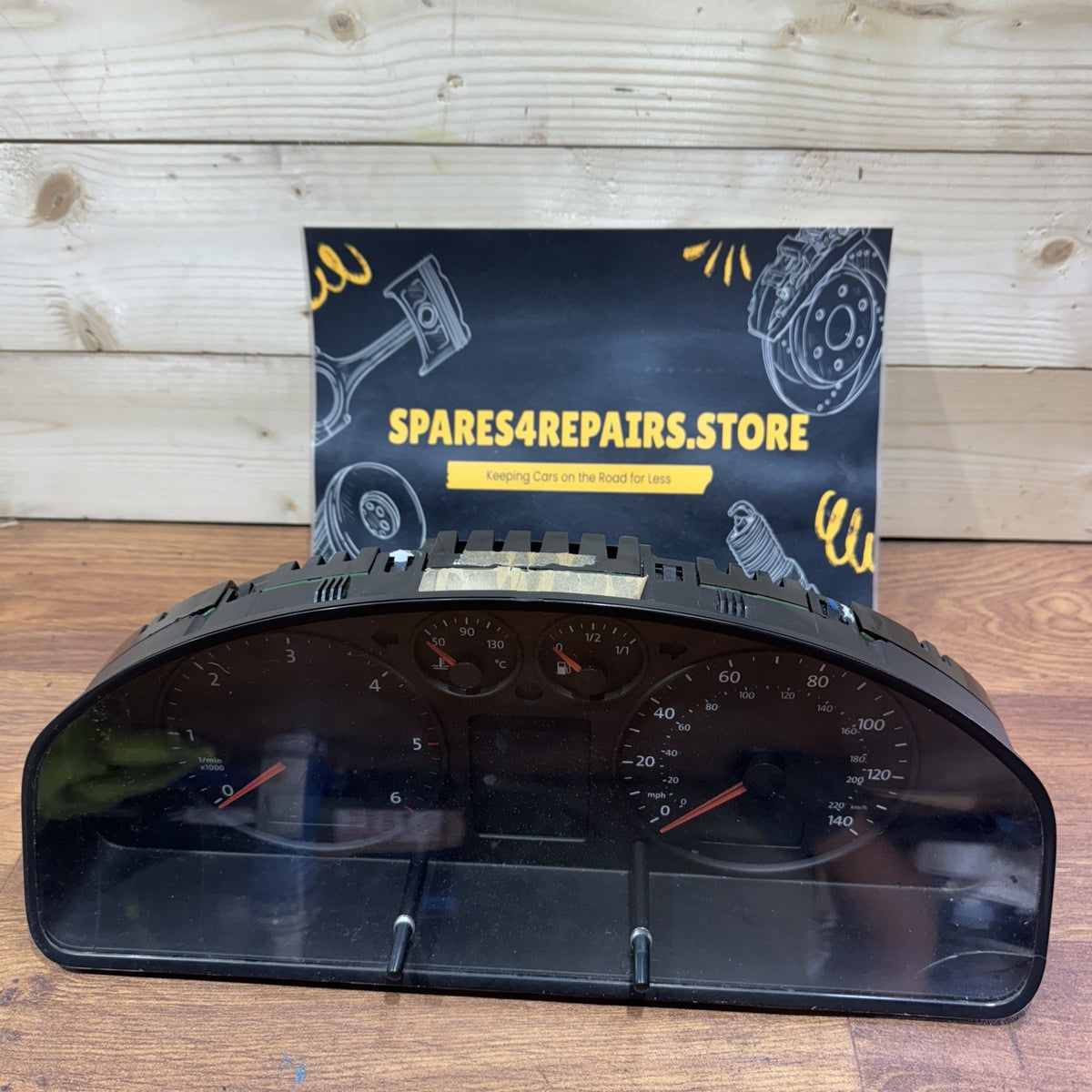

♻ GENUINE VW TRANSPORTER T5 / CARAVELLE SPEEDOMETER INSTRUMENT CLUSTER 7H0920951T – CRACKED LENS ♻

Genuine used Volkswagen Transporter T5 / Caravelle instrument cluster / speedometer unit, fitted in the driver’s dashboard and used to display vehicle speed, engine RPM, fuel level, coolant temperature, warning lamps and other vehicle information.

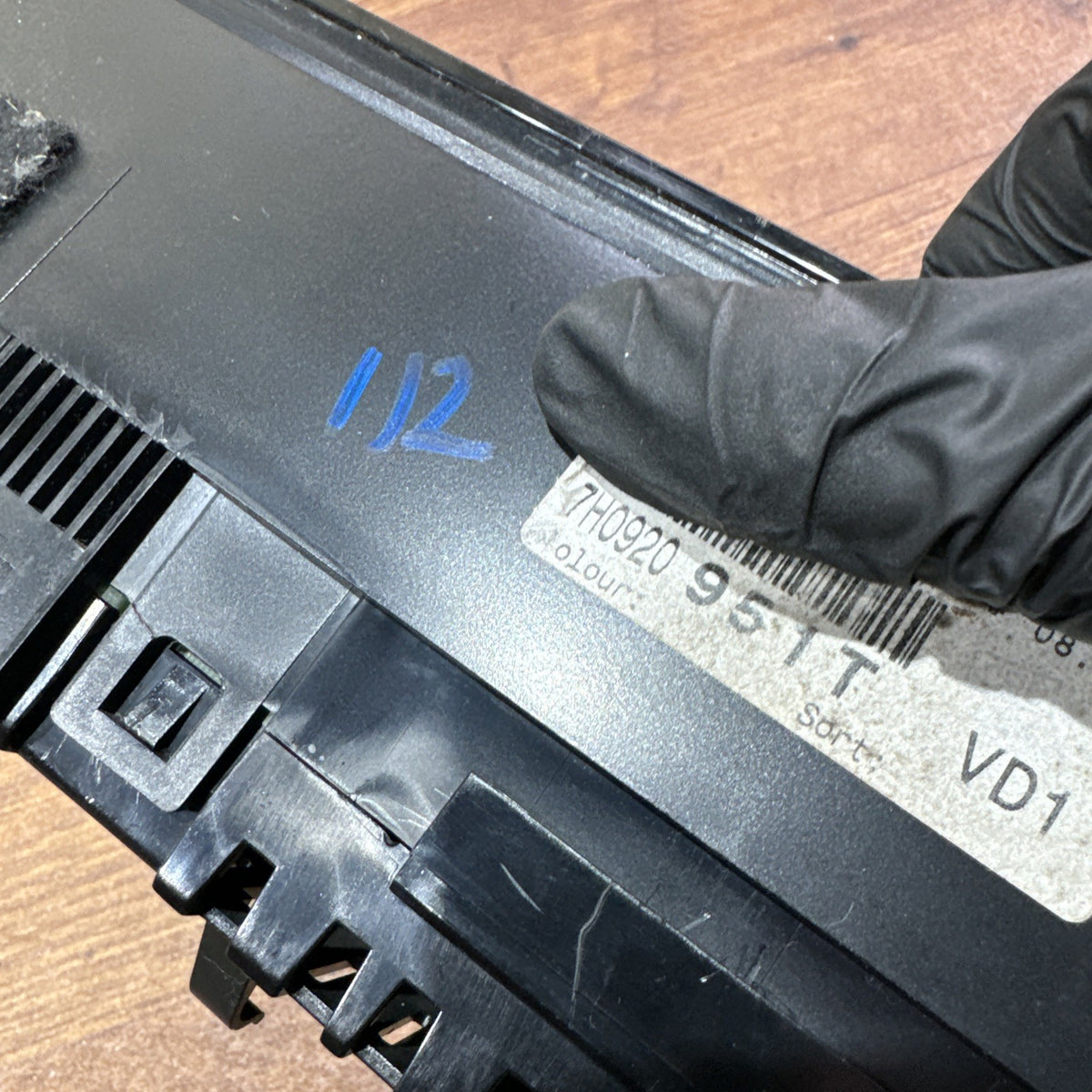

Part Number: 7H0920951T

VW OE Number: 7H0 920 951 T

Part Type: Instrument Cluster / Speedometer / Dashboard Clocks

Position: Driver Dashboard / Instrument Panel

Vehicle: Volkswagen Transporter T5 / Caravelle

Approx. Years: 2003–2010, subject to exact specification

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Important Condition Note: Front clear lens is cracked

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – approx. 2003–2009

* Selected early 2010 T5 applications, depending on production date

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Other T5 variants using instrument cluster 7H0920951T

Compatibility is not determined by model year alone.

Volkswagen used numerous instrument cluster variations depending on:

* Petrol or diesel engine

* Engine specification

* Manual or automatic gearbox

* MPH / km/h display

* Driver information display specification

* Immobiliser generation

* Production date

* Vehicle equipment

* Software / coding configuration

For that reason, the original 7H0920951T number should be matched whenever possible.

Technical Information

The instrument cluster is the main driver information display within the vehicle.

Depending on specification, it can provide:

* Vehicle speed

* Engine RPM

* Fuel level

* Engine coolant temperature

* Mileage / odometer

* Trip mileage

* Warning lights

* Indicator tell-tales

* High-beam warning

* ABS / airbag / engine-management warnings

* Service information

* Driver-information messages where equipped

The cluster communicates with multiple vehicle control modules through the vehicle electrical network.

Vehicle Network / Immobiliser Information

On the Transporter T5, the instrument cluster is an electronic control unit and can form part of the vehicle’s immobiliser / vehicle identity system.

A replacement cluster may therefore not be plug-and-play.

Depending on vehicle production date and specification, replacement may require:

* Immobiliser adaptation

* Key matching

* Vehicle coding

* Configuration transfer

* Mileage / odometer-related procedures where legally permitted

* Diagnostic fault clearing

* Software or coding configuration

Professional diagnostic equipment such as VCDS, ODIS or suitable specialist equipment may be required.

Common Symptoms of a Faulty Instrument Cluster

Replacement may be required if:

* Speedometer stops working

* Rev counter is faulty

* Fuel gauge gives incorrect readings

* Temperature gauge fails

* Display becomes intermittent

* Warning lights fail to illuminate correctly

* Cluster switches off intermittently

* Backlighting fails

* LCD display develops missing pixels

* Communication faults are stored

* Internal electronics fail

* Lens or housing is physically damaged

Important Diagnostic Information

Before replacing the complete cluster, also inspect:

* Vehicle battery voltage

* Relevant fuses

* Cluster wiring connector

* Earth connections

* CAN communication

* Vehicle speed sensor / ABS data

* Fuel-level sender

* Coolant temperature sensor

* Engine ECU fault codes

A faulty gauge reading does not automatically mean the instrument cluster itself has failed.

For example, an incorrect fuel reading may be caused by the tank sender, while speedometer problems can originate from ABS / wheel-speed data depending on vehicle configuration.

Installation

Typical replacement may involve:

1. Disconnecting the battery where required.

2. Removing the instrument-cluster surround trim.

3. Removing the cluster retaining screws.

4. Carefully withdrawing the cluster.

5. Disconnecting the rear electrical connector.

6. Installing the replacement unit.

7. Reconnecting the vehicle wiring.

8. Carrying out required coding / immobiliser adaptation.

9. Testing all gauges, displays and warning lamps.

Professional installation is recommended because the cluster may be linked to the vehicle immobiliser and coding system.

Programming / Coding

Programming / coding is likely to be required when fitting a used instrument cluster to another vehicle.

Depending on the T5 specification, this may involve:

* Immobiliser adaptation

* Key synchronisation

* Coding to vehicle equipment

* Engine / transmission configuration

* Service interval settings

* Diagnostic fault clearing

Do not assume the vehicle will start and operate correctly simply by connecting another used cluster.

Important Compatibility Note

Before ordering, please compare:

* OE number 7H0920951T

* MPH / km/h scale

* Diesel / petrol specification

* Maximum RPM scale

* Display type

* Warning-light arrangement

* Electrical connector

* Production year

* Transmission type

* Immobiliser generation

* Your original cluster against the listing photographs

* Vehicle VIN where possible

The safest fitment wording is:

Volkswagen Transporter T5 / Caravelle – selected 2003–2010 applications using instrument cluster 7H0920951T.

Do not buy solely by vehicle model and year because numerous T5 cluster variants were fitted.

Condition

Genuine used Volkswagen part.

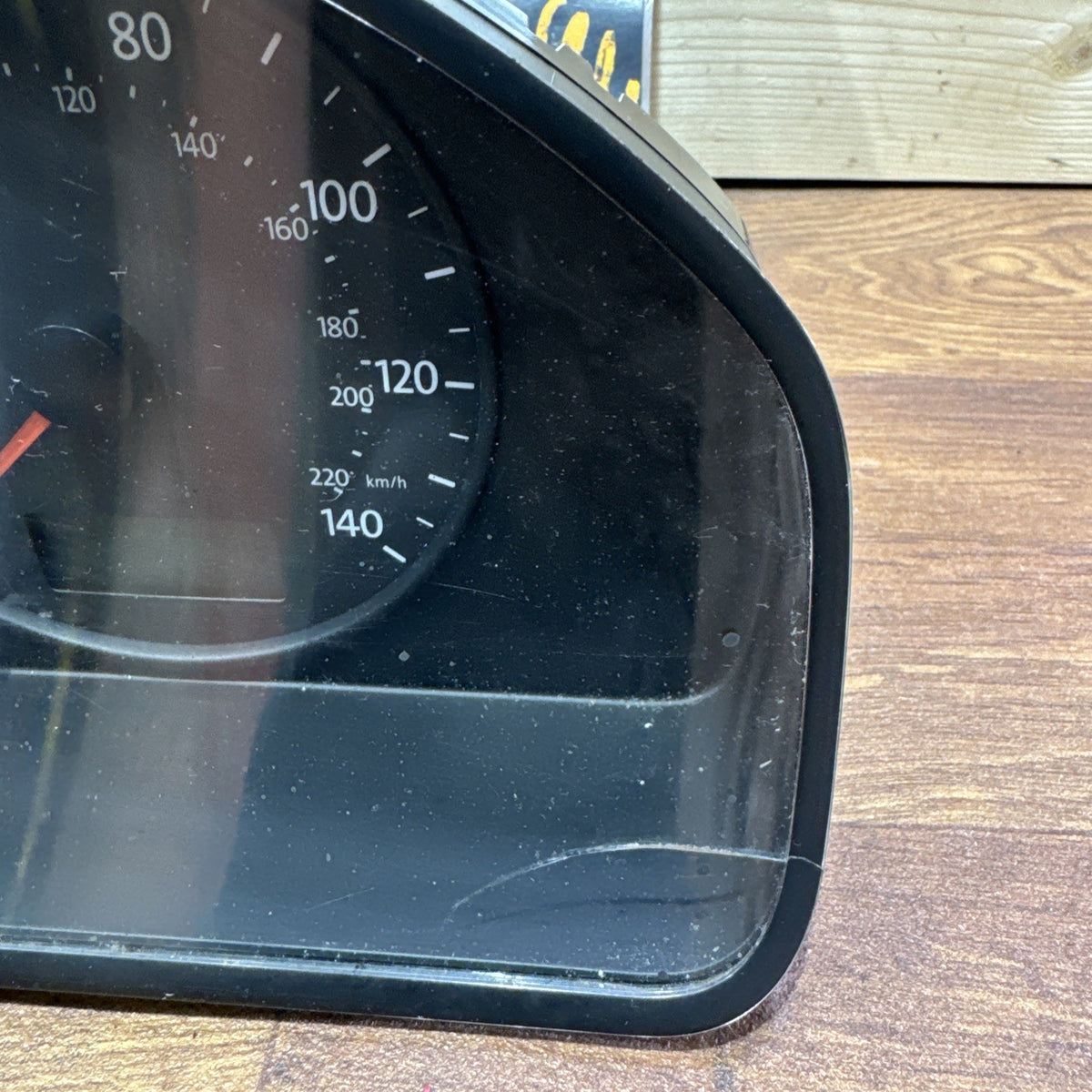

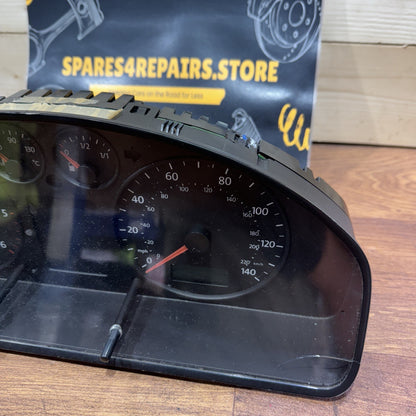

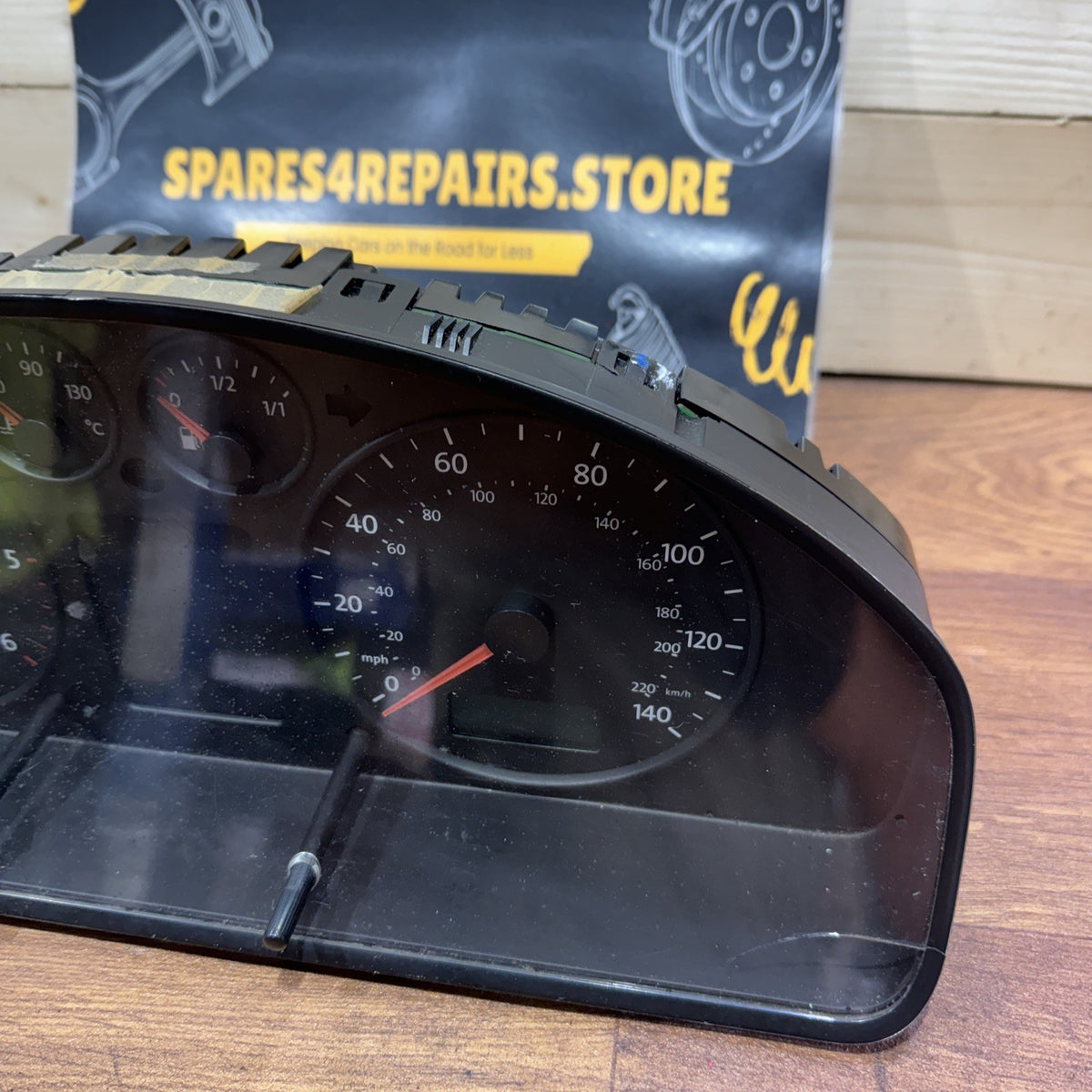

IMPORTANT: THE FRONT CLEAR PLASTIC LENS IS CRACKED.

The cluster is therefore being sold with a known cosmetic defect.

It may also show normal signs of previous use including:

* Surface scratches

* Marks

* Dust

* General age-related wear

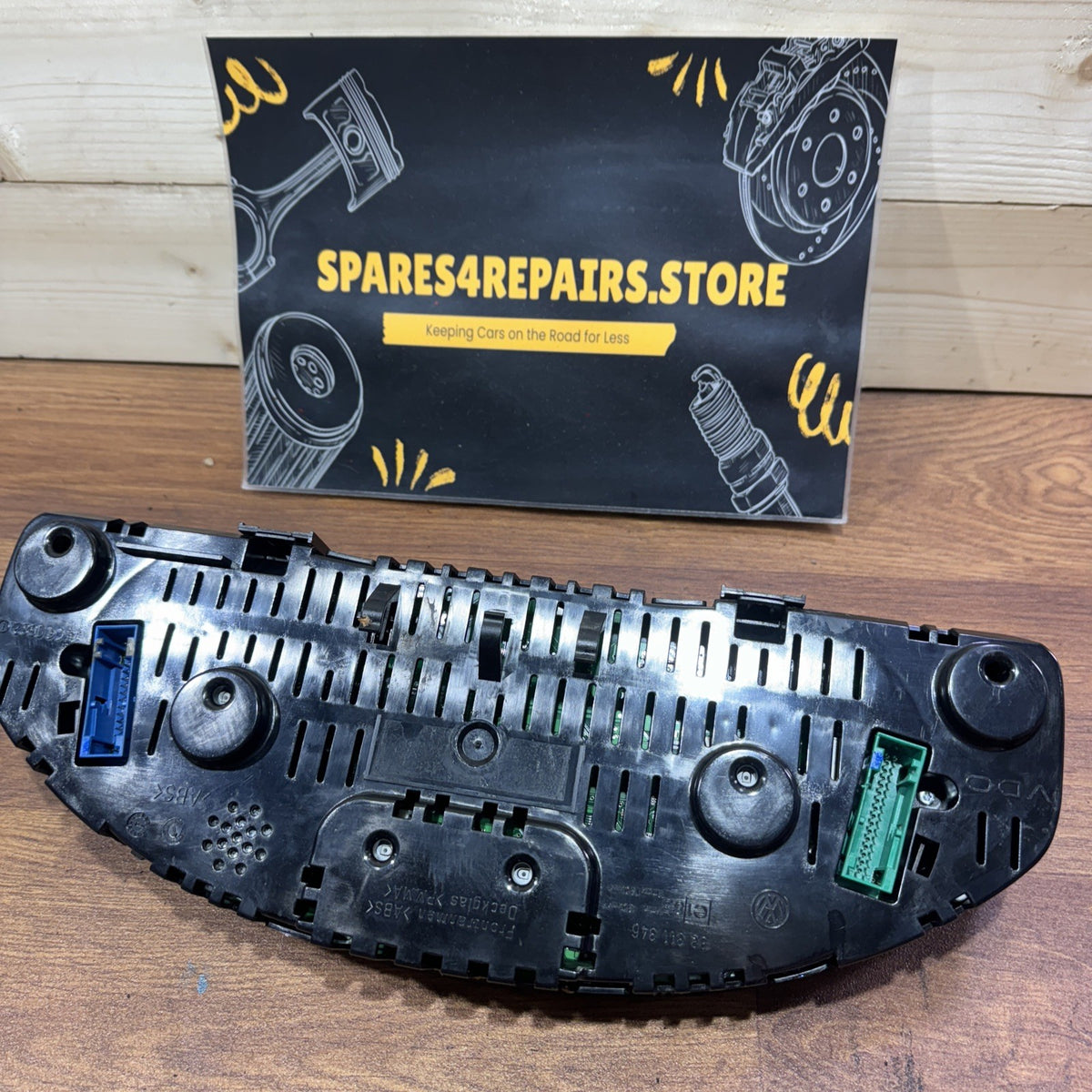

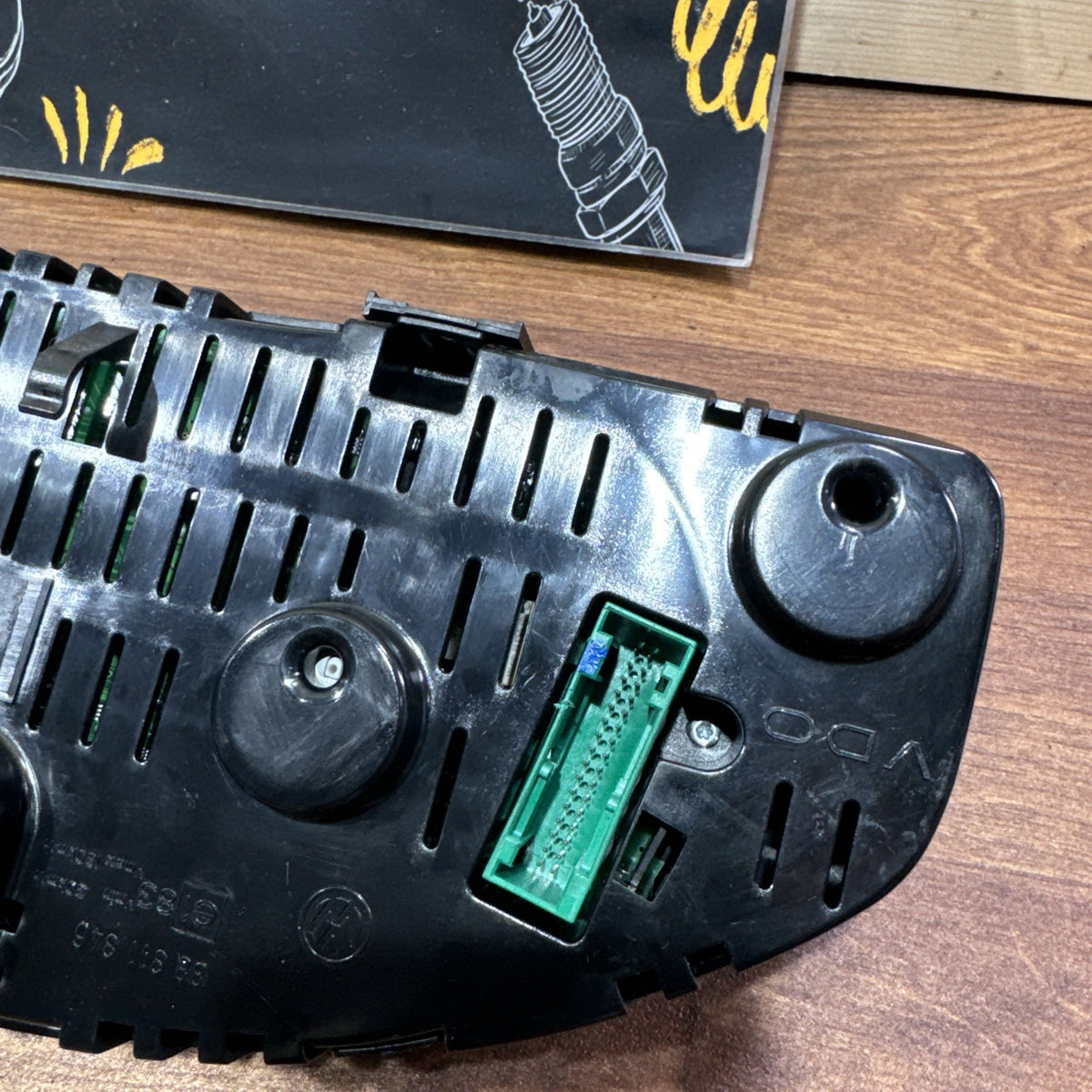

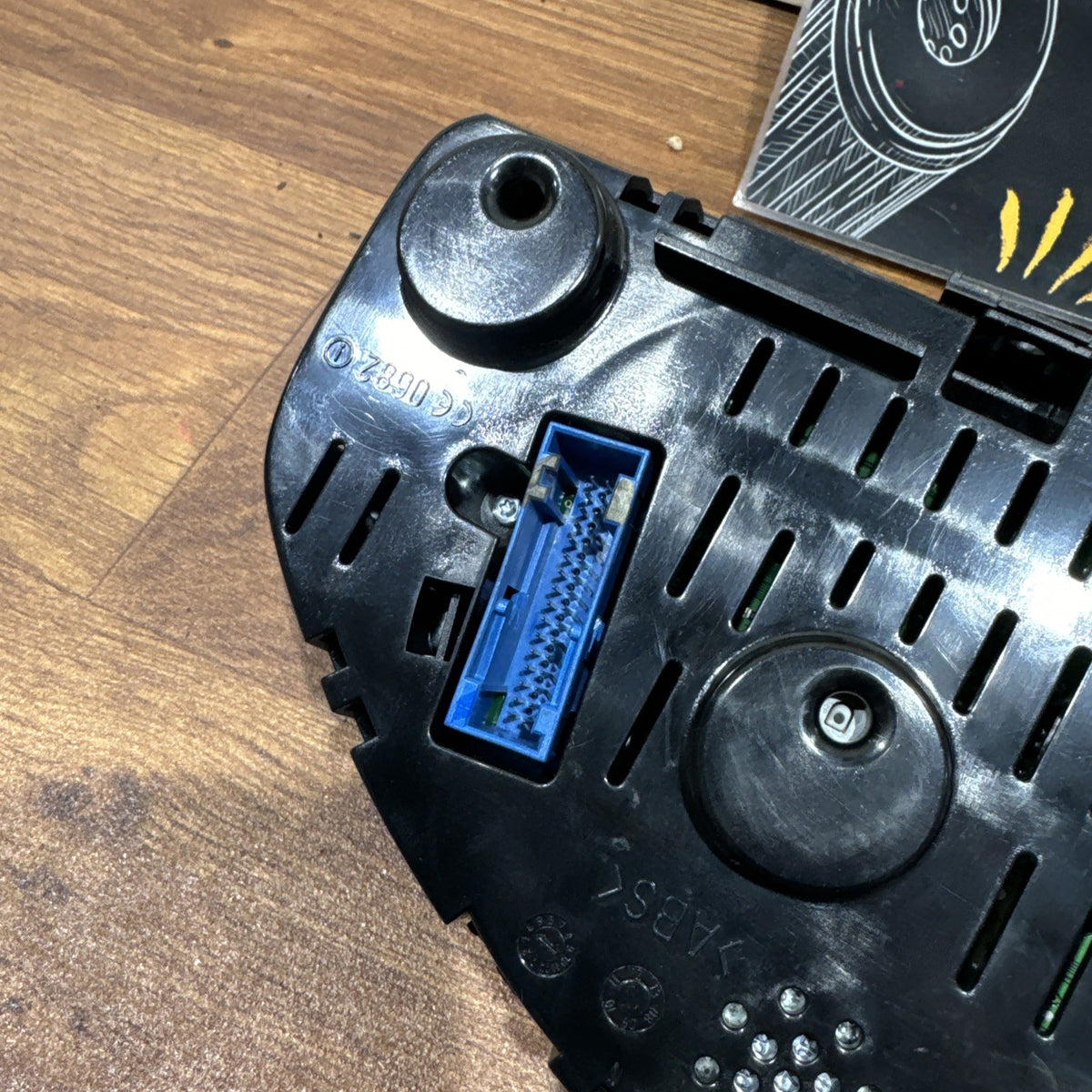

Please inspect all listing photographs carefully before purchase, particularly the cracked front lens, display, warning-light area, connector and mounting points.

An ideal genuine replacement unit for repair, refurbishment, parts use or for a vehicle requiring VW Transporter T5 / Caravelle instrument cluster 7H0920951T, provided the buyer accepts the cracked lens and confirms electronic compatibility before installation.
