VW TRANSPORTER T5 Defroster Flap Cable RHD 7H2819835a

#85

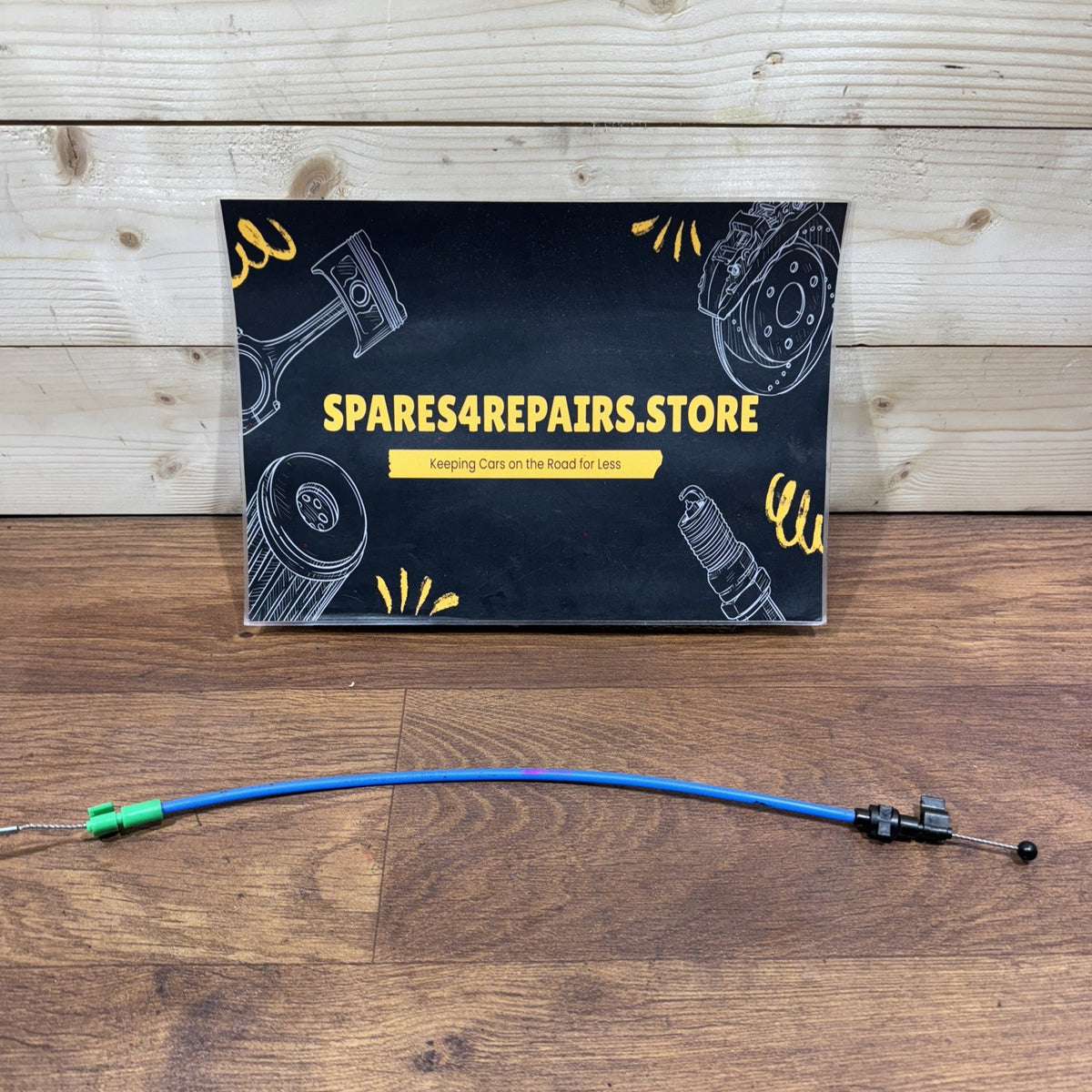

Genuine used Volkswagen Transporter T5 / T5.1 RHD defroster / windscreen demister flap control cable, part number 7H2819835A.

This mechanical HVAC control cable connects the dashboard heater/air-distribution controls to the defroster flap mechanism within the heater box. It transfers movement from the dashboard control to the internal flap responsible for directing airflow towards the windscreen for demisting and defrosting.

Part Number: 7H2819835A

VW OE Number: 7H2 819 835 A

Later OE Revisions: 7H2819835B / 7H2819835C / 7H2819835D

Part Type: Defroster Flap Cable / Demister Flap Cable / Heater Control Bowden Cable

System: Heating / Ventilation / HVAC

Function: Windscreen Defrost / Demist Air Distribution

Vehicle Configuration: Right-Hand Drive – RHD

UK Application: Yes – selected UK vehicles

Manufacturer: Volkswagen / VAG

Condition: Genuine used OEM part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 / T5 GP – 2010–2015

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California T5 / T5.1

* Volkswagen Shuttle

* Transporter Panel Van

* Kombi

* Minibus / passenger versions

* Camper conversions retaining the corresponding factory heater system

* Selected platform / chassis cab versions

The original 7H2819835A belongs to the VW defroster-flap cable family subsequently revised through:

7H2819835B

7H2819835C

7H2819835D

The later 7H2819835D is catalogued across Transporter/Caravelle T5 and T5.1 applications, including 7H, 7E, 7J and 7F variants depending on production year.

OE Supersession Information

VW revised this component several times.

Earlier number:

7H2819835A

Later revisions:

7H2819835B

7H2819835C

Current/later replacement reference:

7H2819835D

Genuine VW replacement-part data cross-references 7H2819835A, B and C directly to 7H2819835D.

For a used original component, matching the cable length, end fittings and heater configuration is still recommended.

Important – Defroster / Demister Flap Cable

This cable controls the DEFROSTER / WINDSCREEN DEMISTER FLAP.

Its purpose is to operate the heater-box flap responsible for directing airflow towards the windscreen.

It should not be confused with the other T5 heater-control cables.

For example:

7H2819833C

→ Footwell air-distribution flap cable

7H2819835A / B / C / D

→ Defroster / windscreen demister flap cable

7H2819837C

→ Temperature-control flap cable – hot/cold adjustment

Although these components may look similar, they perform different functions and can have different lengths, end fittings and routing.

Technical Information

The manually controlled Transporter T5 heating and ventilation system uses mechanical control cables to operate selected internal HVAC flaps.

When the driver changes the air-distribution setting:

1. The dashboard heater control moves the cable.

2. The inner cable moves within its outer sheath.

3. Movement is transferred to the defroster flap lever.

4. The flap changes position inside the heater housing.

5. Airflow is redirected towards or away from the windscreen outlets.

Correct cable operation is therefore important for effective windscreen demisting.

Windscreen Demister System Information

When the heater control is placed into the windscreen/demister position, the HVAC system should direct a substantial proportion of airflow towards the windscreen.

This helps remove:

* Interior condensation

* Windscreen mist

* Moisture

* Light frost when combined with heated airflow

If the defroster flap cable is disconnected or damaged, the dashboard control may move normally while the internal flap fails to reach the correct position.

Common Symptoms / Reasons for Replacement

Typical symptoms include:

* No airflow towards windscreen

* Weak windscreen demisting

* Airflow stuck on dashboard vents

* Airflow stuck on footwell setting

* Heater direction control becoming stiff

* Air-distribution dial difficult to turn

* Control dial moving without changing airflow

* Cable snapped

* Cable kinked

* Cable stretched

* Inner cable seized

* Outer sheath damaged

* Broken cable end

* Damaged retaining clip

* Cable disconnected from heater box

* Cable disconnected from dashboard control

Windscreen Not Demisting Correctly

Poor windscreen demisting does not automatically mean the heater matrix or blower motor is faulty.

If blower speed is normal but airflow does not reach the windscreen correctly, inspect:

* Defroster flap cable

* Cable attachment points

* Air-distribution control

* Defroster flap lever

* Internal heater-box flap

* Windscreen air ducts

* Other air-distribution cables

A disconnected cable can result in strong airflow from other vents while very little reaches the windscreen.

Stiff Air-Distribution Control

If the dashboard air-direction control becomes unusually stiff, do not force it.

Possible causes include:

* Seized cable

* Bent inner cable

* Kinked outer sheath

* Incorrect cable routing

* Stiff heater-box flap

* Damaged flap lever

* Cable sheath incorrectly secured

* Damaged dashboard heater-control mechanism

Forcing a stiff control can damage both the cable and the heater-control panel.

Important Diagnostic Information

Before replacing 7H2819835A, inspect the complete mechanical air-distribution system.

Check:

* Dashboard heater-control panel

* Air-direction control

* Defroster cable

* Cable retaining clips

* Inner cable

* Outer sheath

* Cable routing

* Heater-box connection

* Defroster flap lever

* Internal flap movement

Where practical, disconnecting the cable and checking the flap and dashboard control independently can help identify which component is causing excessive resistance.

Cable Inspection

Before installation, inspect the replacement cable for:

* Kinks

* Bends

* Corrosion

* Damaged outer sheath

* Broken end fittings

* Missing retaining clips

* Excessive resistance

* Previous repair damage

The cable should transfer movement smoothly without excessive binding.

Installation

Before installation:

* Compare the replacement with the original

* Check 7H2819835A

* Compare cable length

* Compare both end fittings

* Inspect retaining clips

* Check the heater flap moves freely

* Check dashboard control operation

During installation:

* Follow the original factory cable routing

* Avoid sharp bends

* Do not kink the cable

* Secure the outer sheath correctly

* Connect both ends fully

* Fit all retaining clips correctly

Incorrect routing can make the heater control excessively stiff even when the cable itself is in good condition.

Testing After Installation

Before fully reassembling dashboard trim:

1. Move the air-distribution control slowly.

2. Check the cable moves freely.

3. Confirm movement at the defroster flap.

4. Run the blower motor.

5. Select dashboard vents.

6. Select footwell airflow.

7. Select windscreen/demister mode.

8. Confirm strong airflow reaches the windscreen outlets.

The control should move smoothly through its normal range.

Programming / Coding

No programming or coding is required.

This is a purely mechanical heater/HVAC control component.

Once correctly installed and adjusted, it operates directly from the dashboard heater-control mechanism.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H2819835A

* Later references 7H2819835B / 7H2819835C / 7H2819835D

* RHD configuration

* Cable length

* Outer sheath

* Cable end fittings

* Retaining clips

* Dashboard heater-control type

* HVAC configuration

* Vehicle production date

Do not confuse this cable with the footwell flap cable or temperature-control flap cable.

Compatibility is primarily determined by the heater/HVAC configuration rather than engine size.

Matching 7H2819835A directly against the original component is recommended.

Condition

Genuine Volkswagen used heater/HVAC control component.

As a used interior mechanical component, normal signs of previous use may include:

* Surface marks

* Dust

* Light dirt

* Minor cosmetic wear

* General installation/removal marks

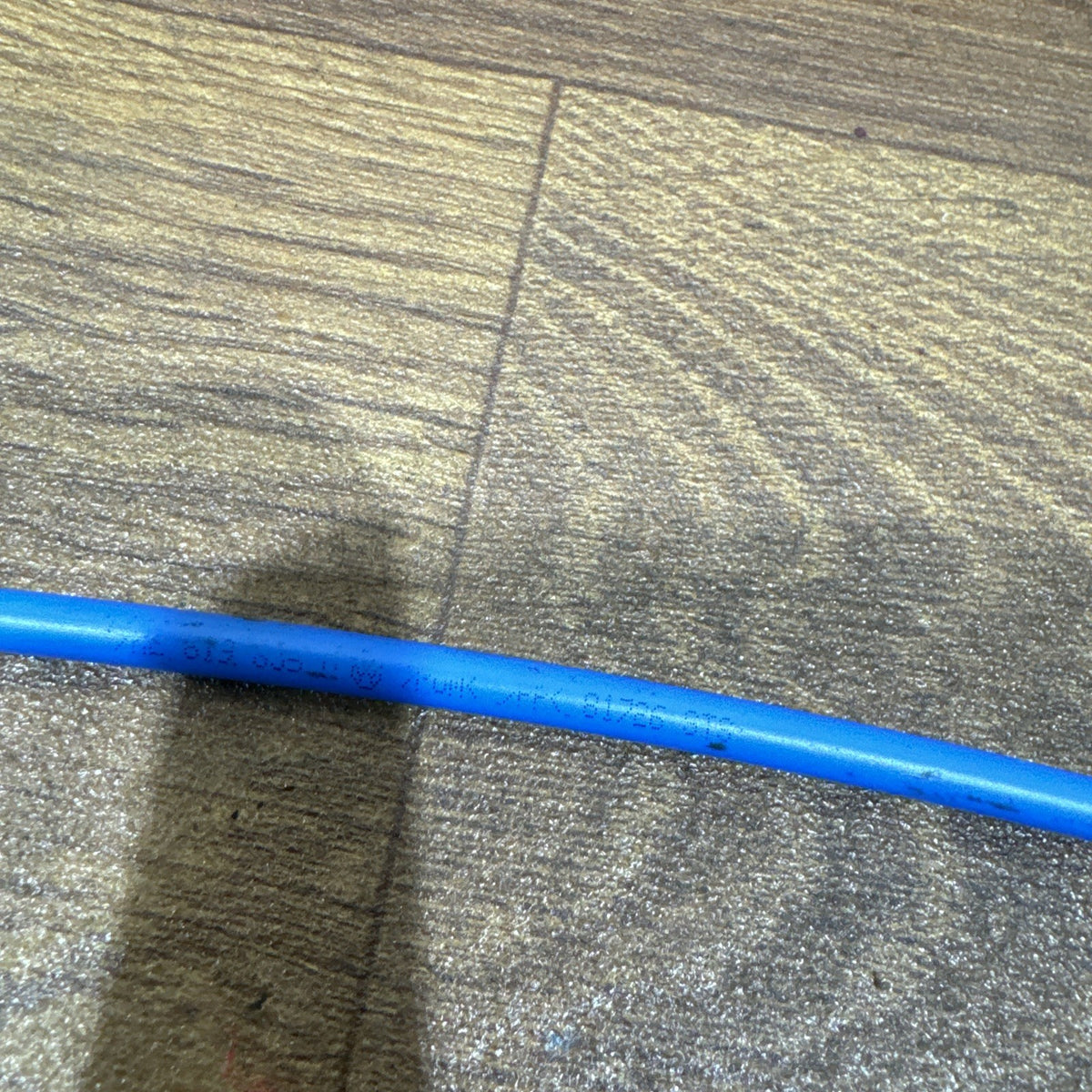

Please inspect all listing photographs carefully, particularly the:

* Inner cable

* Outer sheath

* Cable ends

* Retaining clips

* Attachment points

* OE markings

Only the cable and any associated clips/components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a snapped, seized, kinked, stretched or damaged Volkswagen Transporter T5 / T5.1 RHD windscreen defroster / demister flap control cable, provided 7H2819835A or its confirmed later revision matches the original component.
