VW TRANSPORTER T5 Defroster Flap Cable RHD 7H2819835D #76

#76

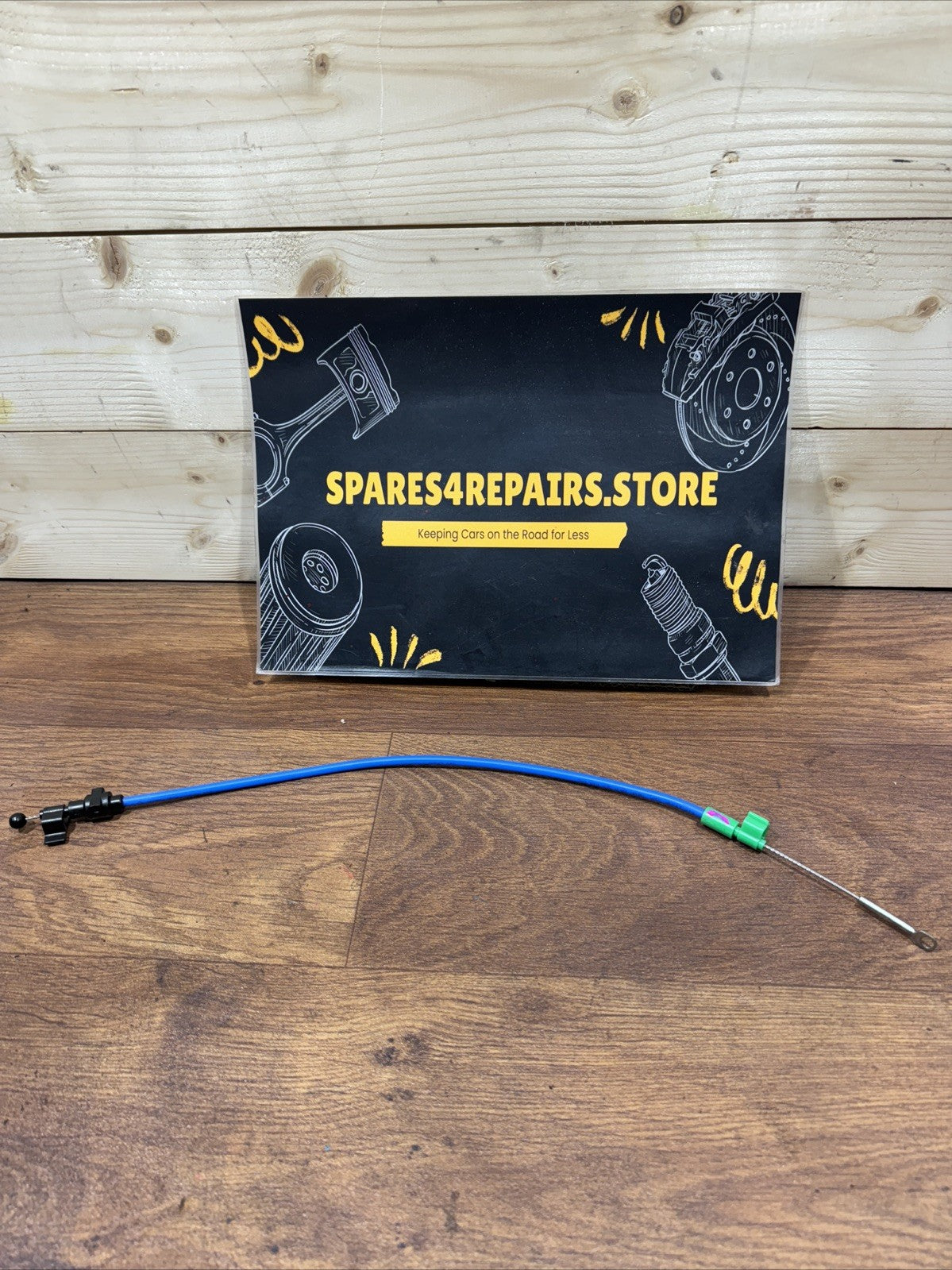

Genuine used Volkswagen Transporter T5 / T5.1 RHD defroster / windscreen demister flap control cable, part number 7H2819835D.

This factory mechanical HVAC cable connects the dashboard heater/air-distribution control mechanism to the defroster flap within the heater housing. It transfers movement from the dashboard control to the internal flap responsible for directing airflow towards the windscreen for demisting and defrosting.

Part Number: 7H2819835D

VW OE Number: 7H2 819 835 D

Earlier OE References: 7H2819835A / 7H2819835B / 7H2819835C

Part Type: Defroster Flap Cable / Demister Flap Cable / HVAC Bowden Cable

Function: Windscreen Defrost & Demist Air Distribution

System: Heating / Ventilation / HVAC

Vehicle Configuration: Right-Hand Drive – RHD

Colour Identification: Blue / Green

UK Application: Yes – selected RHD vehicles

Manufacturer: Volkswagen / VAG

Condition: Genuine used OEM part

Stock Reference: #76

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 / T5 GP – 2010–2015

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California / Camper T5 / T5.1

* Volkswagen Shuttle

* Transporter Panel Van

* Kombi

* Minibus / passenger variants

* Platform / chassis cab variants

* Camper conversions retaining the corresponding factory HVAC controls

The 7H2819835D cable is documented throughout the T5/T5.1 range with selected manually controlled heater and air-conditioning configurations.

Compatibility is determined primarily by RHD configuration and the vehicle’s heater/HVAC system, rather than engine size.

Right-Hand-Drive Information

This is specifically the RHD version.

7H2819835D

* RHD

* Defroster flap cable

* Blue/green identification

The corresponding LHD defroster cable uses a different reference:

7H1819835C

* LHD

* Defroster flap cable

* Green/black identification

This distinction is important for UK Transporters because RHD and LHD heater-control cables should not automatically be treated as interchangeable.

OE Number / Revision Information

7H2819835D is the later revision within this VW cable family.

Earlier references include:

* 7H2819835A

* 7H2819835B

* 7H2819835C

Later/current reference:

* 7H2819835D

These earlier references are cross-referenced to the later D revision in genuine VW replacement-parts data.

For a used replacement, matching the physical cable, end fittings and HVAC configuration remains recommended.

Technical Information

The manually controlled T5 heating and ventilation system uses mechanical cables to operate internal air-distribution flaps.

When the driver selects the windscreen/demister position:

1. The dashboard air-distribution control moves.

2. The control pulls or pushes the inner cable.

3. Movement is transferred through the cable to the heater-box mechanism.

4. The defroster flap changes position.

5. Airflow is redirected towards the windscreen outlets.

6. Heated or ventilated air helps clear condensation or frost from the windscreen.

The cable must move smoothly and achieve the correct travel for the flap to reach its intended positions.

Defroster / Demister System Information

This cable controls the windscreen air-distribution flap.

It is particularly important when the driver selects:

* Windscreen demist

* Windscreen defrost

* Screen-focused heating

* Combined air-distribution settings involving the windscreen

A damaged or disconnected cable can allow the dashboard control to move while the internal heater flap remains in the wrong position.

This can result in very little airflow reaching the windscreen even when the demister setting has been selected.

Different T5 Heater Control Cables

Do not confuse 7H2819835D with the other mechanical HVAC cables fitted to the T5/T5.1.

7H2819833C

* Footwell flap cable

* RHD

* Yellow/blue

7H2819835D

* Defroster / windscreen demister flap cable

* RHD

* Blue/green

7H2819837C

* Temperature-control flap cable

* RHD

* Red/blue

* Controls hot/cold adjustment

Although these cables can look similar, their length, routing, colour identification and function differ.

Common Symptoms / Reasons for Replacement

Typical symptoms include:

* No airflow towards the windscreen

* Weak windscreen demisting

* Airflow remaining at dashboard vents

* Airflow remaining in footwell

* Air-distribution control difficult to turn

* Heater direction control jammed

* Control moves without changing airflow

* Cable kinked

* Cable bent

* Cable snapped

* Cable stretched

* Inner cable seized

* Outer sheath damaged

* Cable end broken

* Retaining clip damaged

* Cable disconnected from dashboard controls

* Cable disconnected from heater-box flap

Kinked Cable Problems

Mechanical heater-control cables can become damaged if excessive force is applied when the flap mechanism is stiff.

A kink can prevent the cable from transferring the full movement of the dashboard control to the heater flap.

This can result in:

* Incomplete flap movement

* Incorrect air distribution

* Stiff heater controls

* Failure to reach the windscreen position

* Cable eventually becoming permanently damaged

If the original cable is kinked, the reason for the excessive resistance should also be investigated.

Important Diagnostic Information

Before replacing the cable, inspect:

* Dashboard heater-control mechanism

* Air-distribution dial

* Cable attachment points

* Cable retaining clips

* Cable routing

* Defroster flap lever

* Heater-box flap mechanism

* Other HVAC cables

Where practical, disconnect the cable and carefully operate the heater-box flap by hand.

If the flap itself is unusually stiff, replacing the cable alone may not solve the problem.

Windscreen Not Demisting

If the blower operates normally but very little air reaches the windscreen, check:

* 7H2819835D defroster cable

* Cable connection at the control panel

* Cable connection at heater box

* Defroster flap movement

* Air-distribution mechanism

* Windscreen ducting

* Blower operation

* Cabin/pollen filter where applicable

A cable or flap fault is particularly likely when airflow remains strong from other vents but does not change correctly when the distribution control is moved.

Heater / HVAC Specification

Depending on model year, 7H2819835D is catalogued with selected:

* Manually controlled heating systems

* Manually regulated air-conditioning systems

For example, T5.1 catalogue data shows the cable on vehicles with manual HVAC specifications such as PR 9AA and 9AX, depending on production configuration.

Therefore, the exact OE number and original HVAC arrangement should be checked.

Installation

Before installation:

* Compare 7H2819835D with the original

* Compare cable length

* Check blue/green identification

* Compare both end fittings

* Inspect retaining clips

* Check the heater flap moves freely

* Check dashboard control operation

During installation:

* Follow the original cable routing

* Avoid sharp bends

* Do not kink the cable

* Secure the outer sheath correctly

* Fully engage both cable ends

* Fit all retaining clips correctly

Incorrect routing can make the heater control excessively stiff and reduce flap travel.

Testing After Installation

Before fully refitting dashboard trim:

1. Move the air-distribution control slowly through its full range.

2. Confirm smooth cable movement.

3. Observe the defroster flap mechanism.

4. Check that the flap reaches both end positions.

5. Run the blower.

6. Select dashboard vents.

7. Select footwell airflow.

8. Select windscreen/demister mode.

9. Confirm strong airflow reaches the windscreen outlets.

The control should move smoothly without excessive force or binding.

Programming / Coding

No programming or coding is required.

This is a purely mechanical HVAC control cable.

Once correctly fitted and adjusted, it operates directly from the manual dashboard heater/air-distribution controls.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H2819835D

* Earlier 7H2819835A/B/C references where applicable

* RHD configuration

* Blue/green cable identification

* Cable length

* Outer sheath

* End fittings

* Retaining clips

* Dashboard heater-control type

* HVAC specification

* Vehicle production date

Do not confuse this component with the 7H2819833C footwell flap cable or 7H2819837C temperature-control cable.

Compatibility is not determined by engine size.

Matching 7H2819835D directly against the original component is strongly recommended.

Condition

Genuine Volkswagen used heater/HVAC control component.

As a used interior mechanical component, normal signs of previous use may include:

* Surface marks

* Dust

* Light dirt

* Minor cosmetic wear

* General installation/removal marks

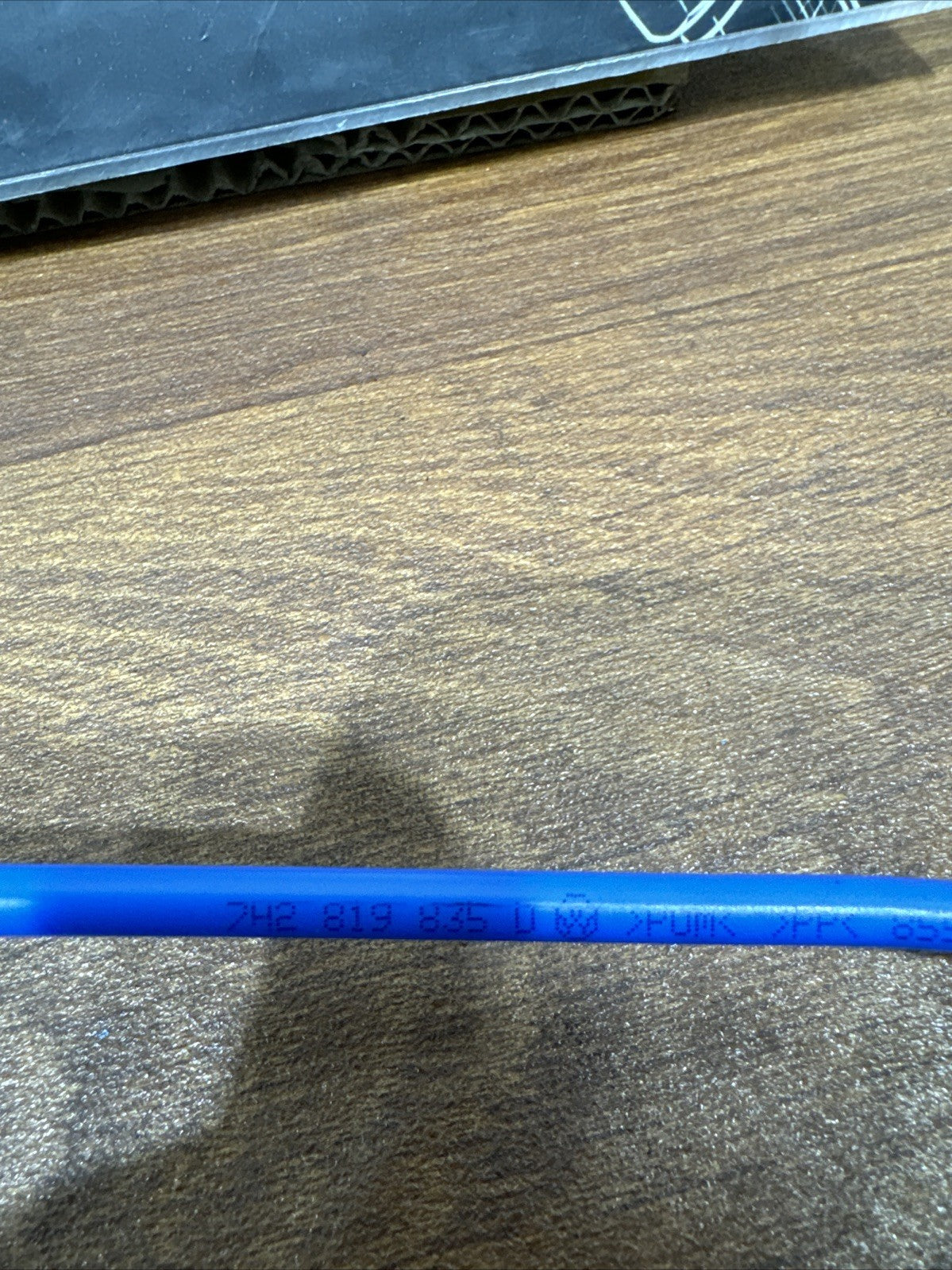

Please inspect all listing photographs carefully, particularly the:

* Inner cable

* Outer sheath

* Cable ends

* Retaining clips

* Attachment points

* Blue/green identification

* OE part number

Only the cable and associated clips/components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a snapped, kinked, seized, stretched or damaged Volkswagen Transporter T5 / T5.1 RHD windscreen defroster / demister flap control cable, provided 7H2819835D matches the original component.

Stock Reference: #76
