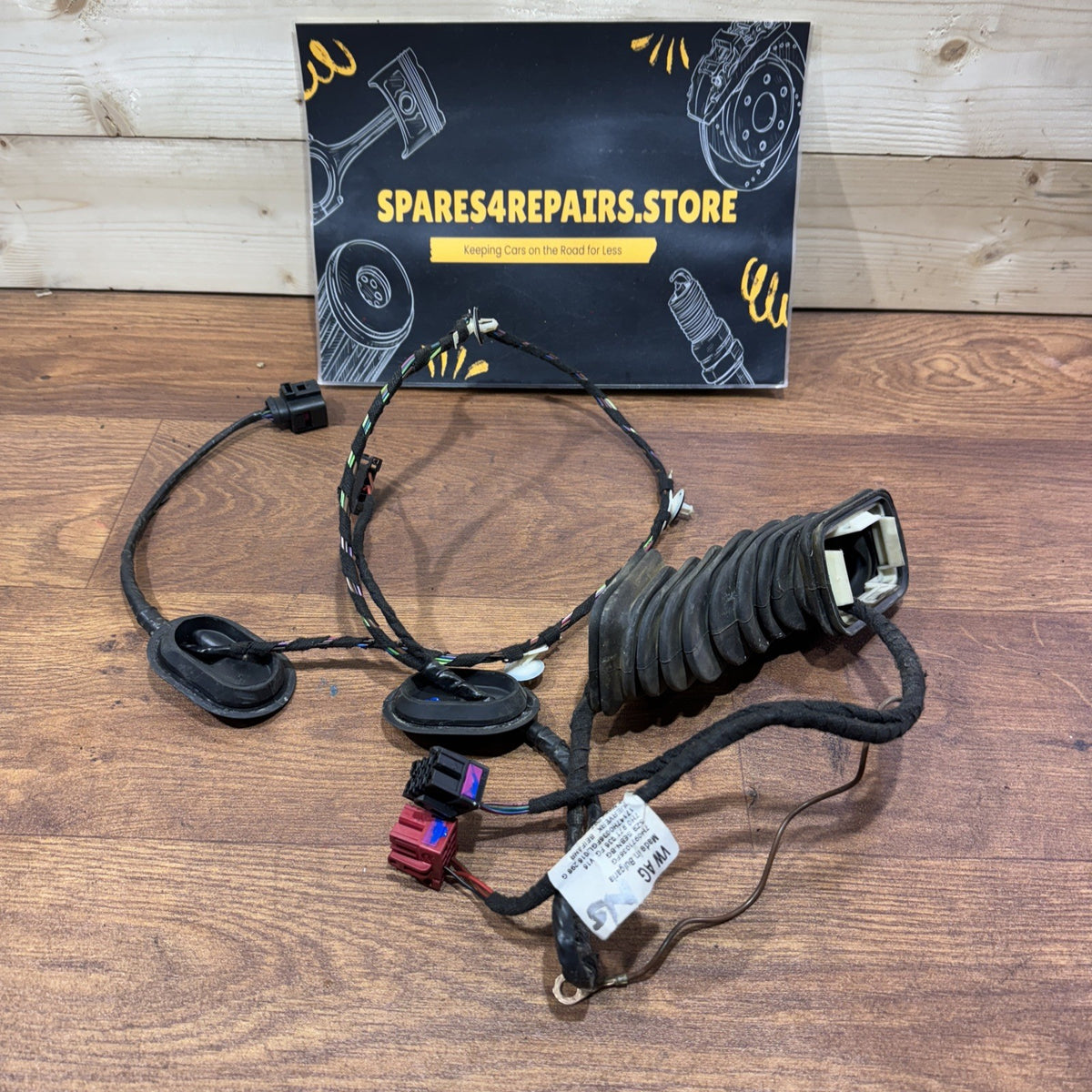

♻ GENUINE VW TRANSPORTER T5 FRONT RIGHT DOOR WIRING LOOM – MANUAL WINDOW 7H0971036FG ♻

Genuine used Volkswagen Transporter T5 front door wiring loom / electrical harness, designed for selected T5 vehicles with a manual window regulator. The loom carries electrical power and signals between the vehicle body and components fitted inside the front door, including the central locking system, speaker and exterior mirror equipment depending on vehicle specification.

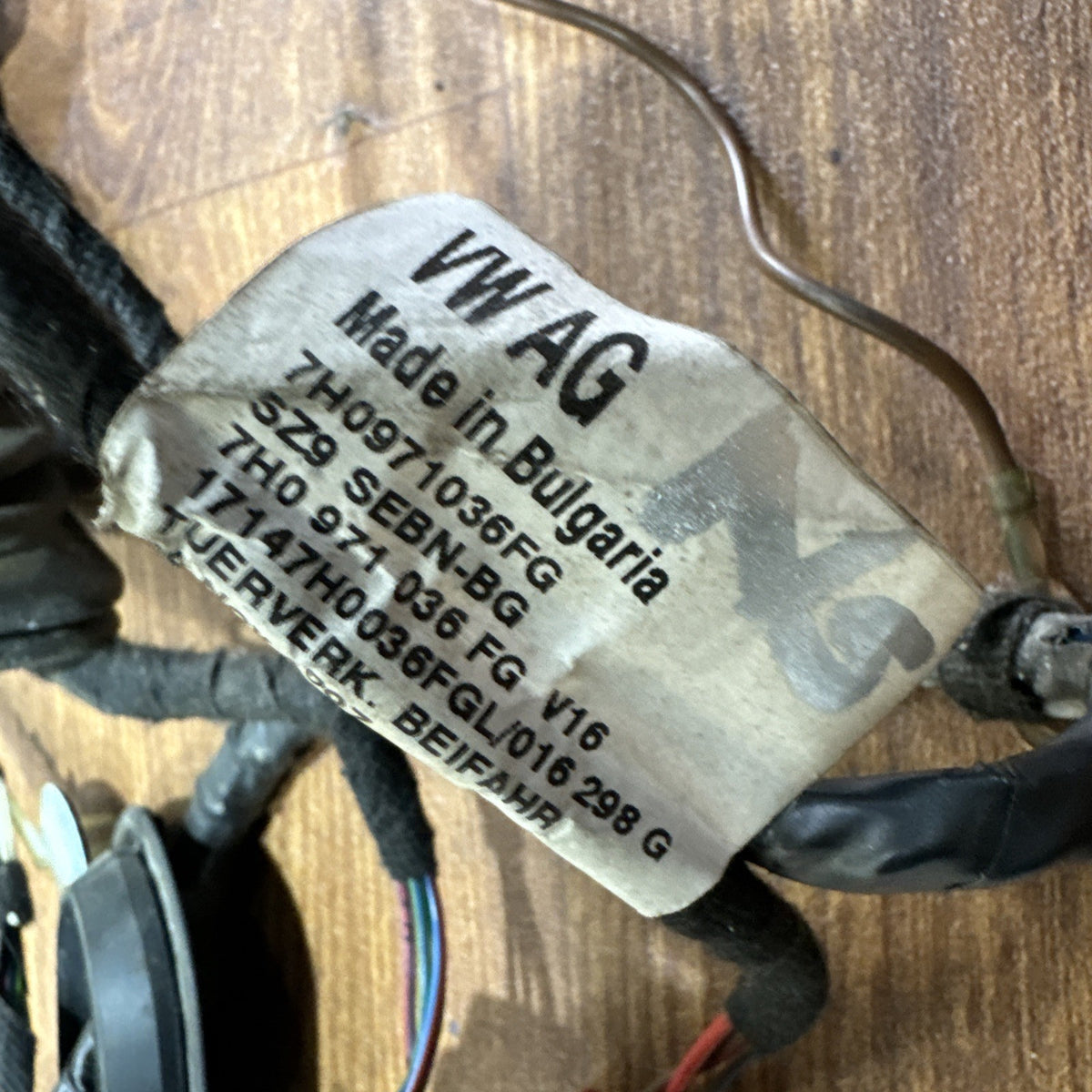

Part Number: 7H0971036FG

VW OE Number: 7H0 971 036 FG

Superseded By: 7H0971036FA

Part Type: Front Door Wiring Loom / Door Harness

Window Specification: Manual Window / Mechanical Window Regulator

System: Front Door Electrical System

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Important Side Identification

There is an important correction for this part number.

Available OE and used-parts data identifies the 7H0971036… family as a FRONT RIGHT door wiring loom, rather than front left.

A current used genuine loom carrying 7H0971036FG is specifically identified as a Volkswagen Transporter / Caravelle T5 front right door wiring loom, and the later replacement 7H0971036FA is also documented as a front right door harness. (eBay UK)

Therefore, I would not advertise 7H0971036FG as Front Left unless the physical loom or donor vehicle proves otherwise.

The safest identification is:

VW Transporter T5 Front Right Door Wiring Loom – 7H0971036FG

For a UK RHD Transporter, front right is normally:

O/S / Offside / Driver Side

Compatibility

The strongest documented applications are selected:

* Volkswagen Transporter T5 – approx. 2007–2008

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Shuttle

* Caravelle T5

* Selected Multivan / Camper applications with matching door equipment

* Front right door

* Manual-window equipped vehicles where the corresponding wiring specification is fitted

A used-parts source identifies 7H0971036FG specifically on a 2007 Transporter / Caravelle T5 front-right door application. (eBay UK)

VAG parts data confirms that 7H0971036FG was superseded by 7H0971036FA. (OEM Wolf)

The replacement 7H0971036FA is documented on 2008 Transporter / Caravelle T5 applications. (OEM Wolf)

Manual Window Compatibility

The later 7H0971036FA harness is documented for vehicles with:

* PR code 4R0 – Mechanical Window Regulator

* Selected central locking configurations

* Selected exterior mirror configurations

* Different speaker configurations depending on vehicle equipment

A genuine VW parts supplier lists 7H0971036FA with PR code 4R0, confirming its use with a mechanical/manual window regulator. (oemvwshop.fr)

Another VW parts specialist describes the same successor loom as suitable for a T5 with central locking, electric mirrors and without electric windows. (4yourdrive.de)

Because FG supersedes to FA, this strongly supports the manual-window specification, but the connector layout should still be checked carefully.

Technical Information

The front door wiring loom routes electrical circuits from the vehicle body into the front door.

Depending on vehicle equipment, it may provide connections for:

* Central locking

* Door lock actuator

* Door contact / status circuit

* Exterior mirror

* Heated mirror where equipped

* Electric mirror adjustment where equipped

* Door loudspeaker

* Courtesy / interior lighting circuits

* Other door electrical functions

Because this version is intended for a manual window regulator, it does not require the same power-window motor wiring arrangement as an electric-window door loom.

Front Door Electrical System Information

The loom works together with:

* Door lock mechanism

* Central locking actuator

* Exterior mirror

* Speaker

* Door contact circuit

* Body Control / onboard supply system

* A-pillar body connector

* Associated switches and electrical equipment

T5 door looms vary significantly according to equipment specification.

Volkswagen produced separate versions depending on:

* Manual or electric windows

* Central locking

* Manual or electrically adjustable mirrors

* Heated mirrors

* Speaker configuration

* RHD / LHD

* Production date

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Central locking stops working on one front door

* Door speaker cuts in and out

* Exterior mirror functions fail

* Electrical functions operate intermittently when the door moves

* Wiring insulation is split

* Individual wires have broken

* Connector pins are corroded

* Loom has previously been cut or repaired

* A-pillar connector is damaged

* Door wiring has suffered water ingress

Important Diagnostic Information

Before replacing the complete wiring loom, inspect:

* Flexible wiring section between door and body

* A-pillar connector

* Door lock connector

* Mirror connector

* Speaker wiring

* Power and earth circuits

* Fuses

* Body-side wiring

* Central locking actuator

Repeated opening and closing of the front door can cause wires to fatigue near the flexible door-to-body section.

A conductor may be broken internally even when the outer insulation appears intact.

Installation

Typical replacement may involve:

1. Disconnecting the vehicle battery.

2. Removing the front door trim.

3. Disconnecting the speaker and door lock wiring.

4. Disconnecting mirror wiring where fitted.

5. Releasing the loom from its retaining clips.

6. Disconnecting the main door/body connector.

7. Removing the old wiring harness.

8. Routing the replacement loom in the original factory position.

9. Reconnecting all components.

10. Securing the harness correctly.

11. Reconnecting the battery.

12. Testing central locking, speaker and mirror functions.

Correct routing is important to prevent the replacement loom being trapped, stretched or damaged when the door opens.

Programming / Coding

No programming or coding is normally required for the wiring loom itself.

Once the correct harness is installed, the existing vehicle equipment should operate through the original control systems.

If a separate control module or lock component is replaced at the same time, diagnostic checks may be required.

Supersession Information

VAG parts data records:

7H0971036FG → 7H0971036FA

The FA revision is therefore the documented later replacement for the FG wiring harness. (OEM Wolf)

A superseding number does not mean every similar-looking T5 door loom is interchangeable, because vehicle PR codes and electrical equipment still matter.

Important Compatibility Note

Before ordering, please compare:

* OE number 7H0971036FG

* Replacement number 7H0971036FA

* Front right door position

* PR code 4R0 – manual/mechanical window regulator where applicable

* RHD / LHD specification

* Main body connector

* Connector colours

* Number of pins

* Door lock connector

* Mirror connector

* Speaker connector

* Central locking specification

* Your original wiring loom against the listing photographs

* Vehicle VIN / PR codes where possible

Do not buy simply on the basis of “VW Transporter T5 manual-window door loom”, because numerous harness variants were fitted.

The safest main fitment is:

VW Transporter / Caravelle T5 approx. 2007–2008 Front Right Door Wiring Loom, Manual Window – 7H0971036FG / superseded 7H0971036FA.

Condition

Genuine used Volkswagen wiring loom.

As a used electrical harness, it may show normal signs of previous installation including:

* Surface marks

* Dust

* Wear to protective tape

* Light staining

* Minor marks around connectors

* General age-related wear

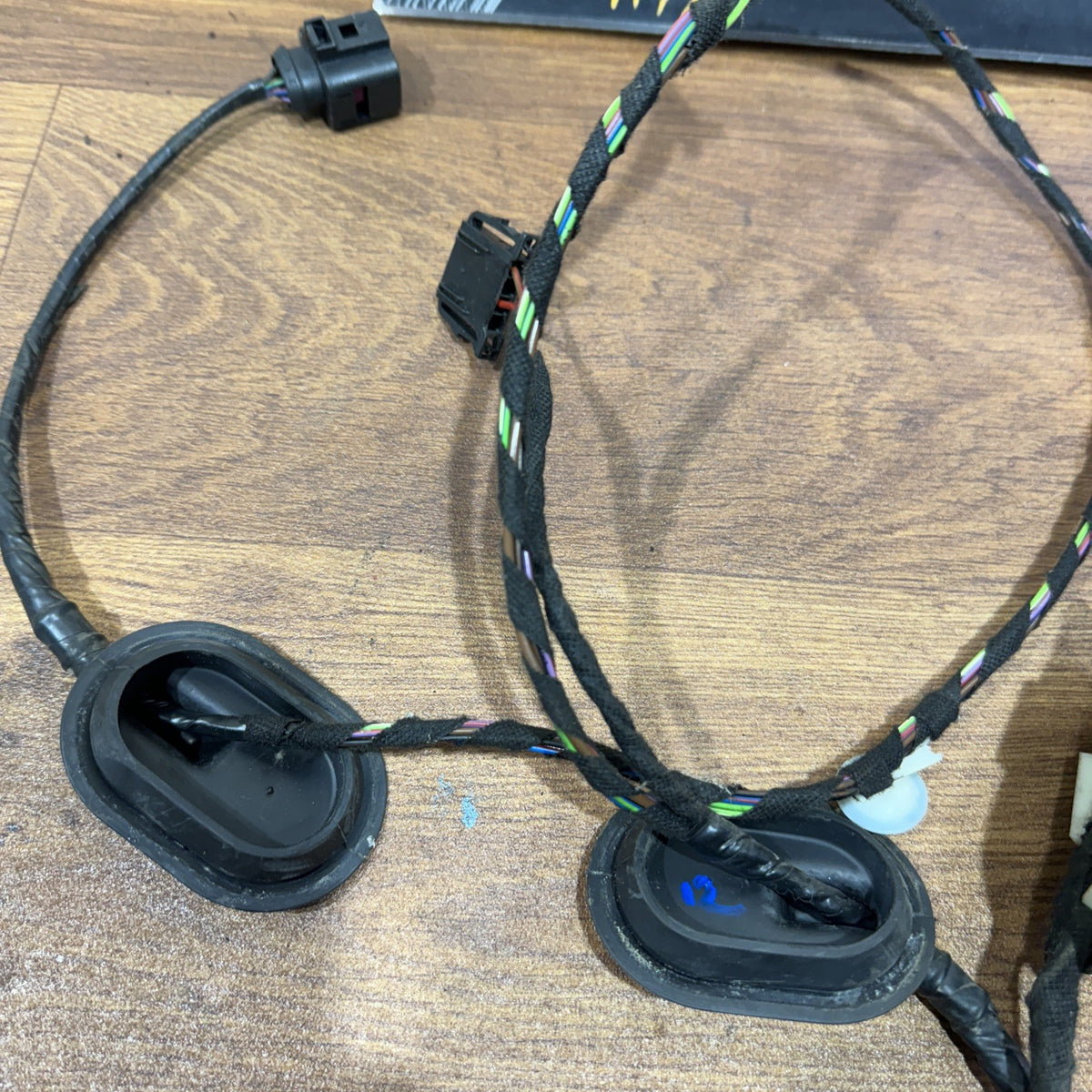

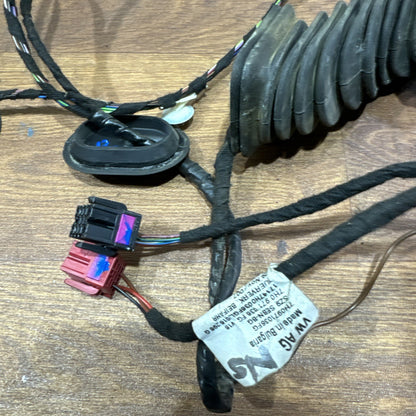

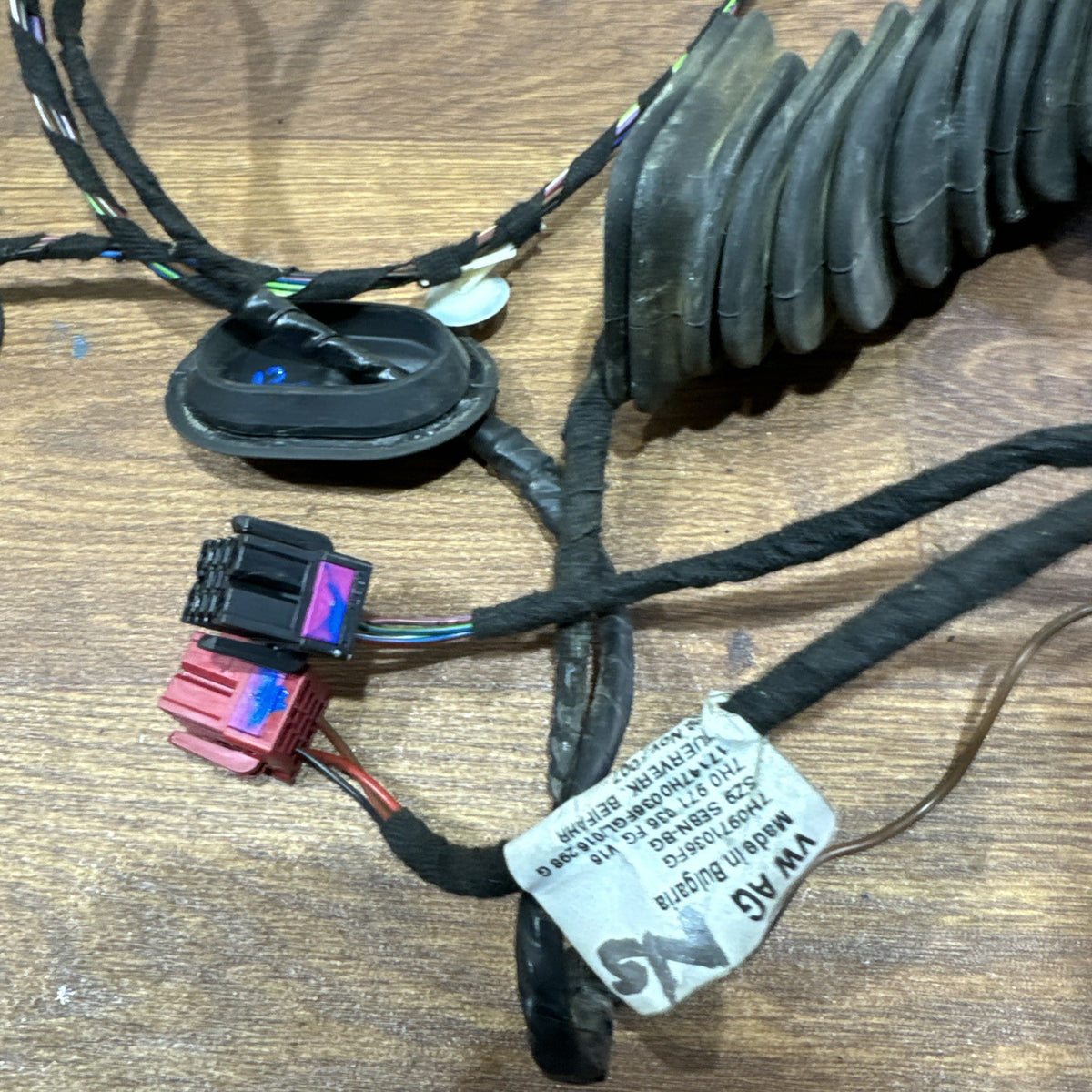

Please inspect all listing photographs carefully for the exact connectors, wiring condition, pin layout and equipment specification.

An ideal genuine replacement for a cut, damaged, broken or faulty VW Transporter T5 front right door wiring loom with manual window regulator 7H0971036FG.
