VW Transporter T5 Glow Plug Control Unit Relay 038907281B

#102

Genuine used Volkswagen Transporter T5 glow plug control unit / glow plug relay, part number 038907281B. This module forms part of the diesel pre-heating system and controls electrical power supplied to the engine glow plugs during cold starting and warm-up operation.

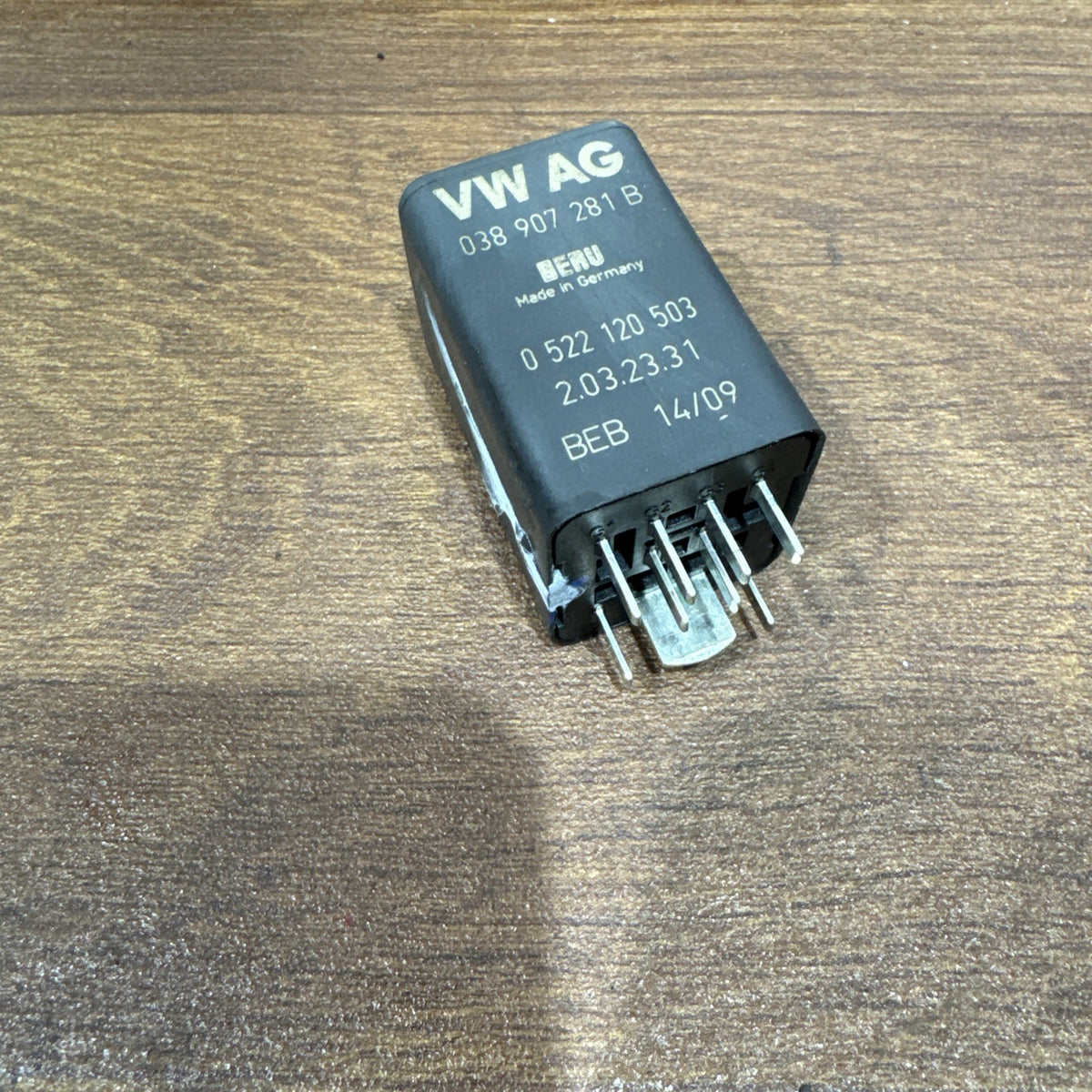

Part Number: 038907281B

VW OE Number: 038 907 281 B

Part Type: Glow Plug Control Unit / Glow Plug Relay / Pre-Heating Control Module

Voltage: 12V

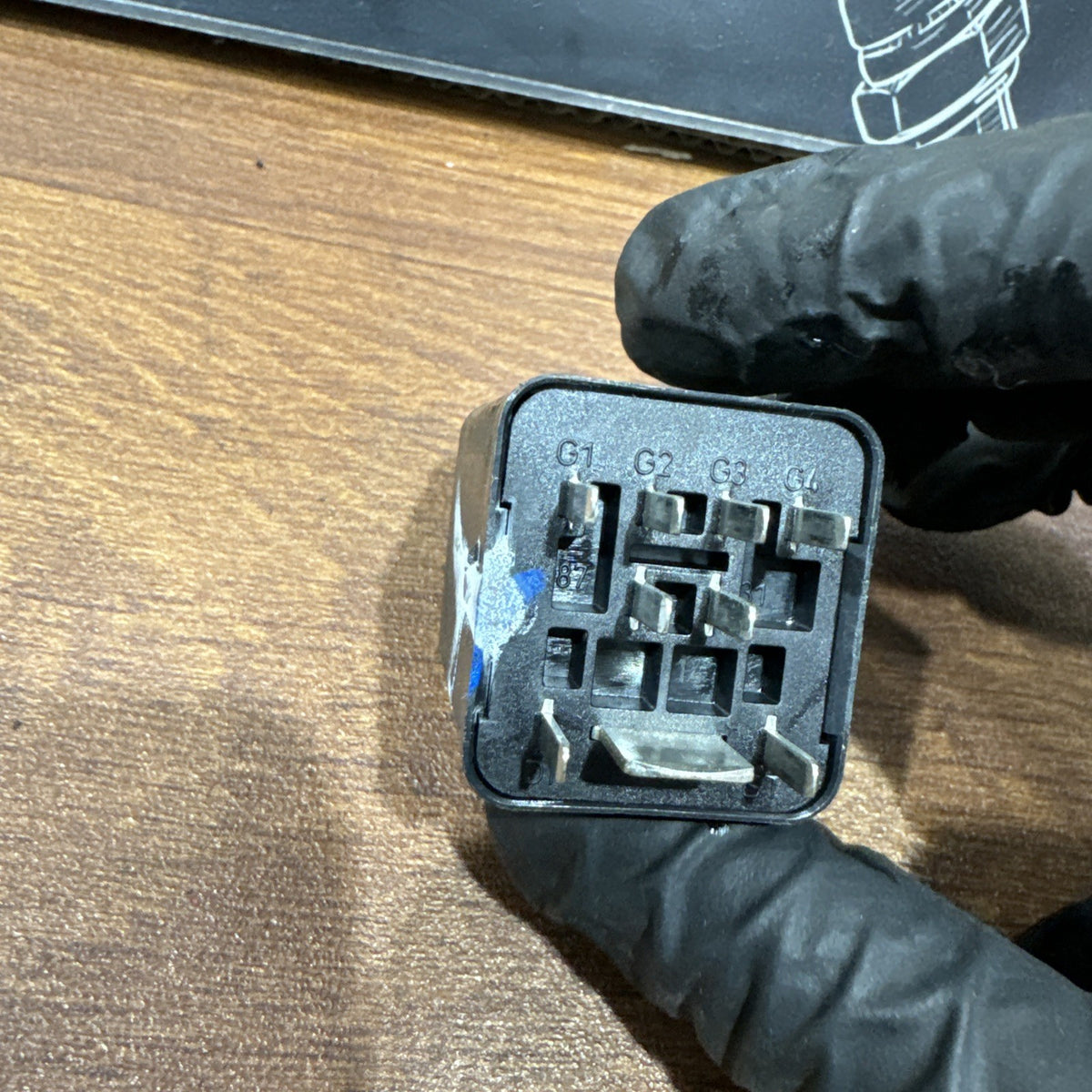

Electrical Connection: Common aftermarket equivalents list a 9-pin configuration

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Suitable for selected Volkswagen Transporter T5 diesel applications using the matching glow plug control system.

Catalogues list 038907281B for Volkswagen Transporter T5 applications, including later T5 / Campmobile production, while the same OE number is also used across numerous Audi, SEAT, Škoda and Volkswagen diesel vehicles.

Because VW used different glow plug modules depending on engine, production date and glow plug system, compatibility should be confirmed primarily by matching:

* 038907281B

* Electrical connector

* Pin configuration

* Engine code

* Original module specification

Technical Information

The glow plug control module is responsible for regulating the high-current electrical supply to the diesel engine glow plugs.

Its functions can include:

* Activating the glow plugs before engine start

* Controlling glow duration

* Providing after-glow following engine start

* Regulating glow operation according to engine temperature

* Responding to commands from the engine ECU

* Monitoring the glow plug electrical circuit

* Supporting smoother cold starts

* Helping reduce cold-start smoke and emissions

The module receives control information from the engine-management system and switches the required electrical current to the glow plugs.

Diesel Pre-Heating System Information

Diesel engines rely on compression heat for combustion, but when the engine is cold the glow plugs provide additional heat inside the combustion chambers.

The glow plug control module determines when and for how long the plugs should operate.

Depending on coolant temperature and engine-management strategy, glow plugs may continue operating for a short period after the engine starts.

This after-glow function can help:

* Improve cold idle quality

* Reduce diesel knock when cold

* Reduce white smoke

* Improve combustion stability

* Reduce cold-start emissions

Common Symptoms of a Faulty Glow Plug Control Unit

Possible symptoms include:

* Difficult cold starting

* Extended cranking when cold

* Glow plug warning light

* Engine-management warning light

* White smoke after cold start

* Rough running immediately after starting

* Glow plugs receiving no power

* Glow plugs staying permanently energised

* Stored glow plug circuit fault codes

* Several glow plug faults appearing simultaneously

If several glow plugs show electrical faults at the same time, the control module or its power supply should be checked before replacing all glow plugs.

Important Diagnostic Information

Before replacing the control module, check:

* Glow plug condition

* Glow plug resistance

* Main power supply

* Module earth connection

* Relevant fuses

* Wiring between module and glow plugs

* Electrical connector condition

* Battery voltage

* Engine ECU fault codes

A failed glow plug can produce symptoms similar to a failed control module.

Likewise, damaged wiring or a poor high-current connection can prevent the module from supplying sufficient current even when the module itself is functioning correctly.

Electrical Testing

A diagnostic scan can help identify faults within the glow plug system.

Depending on engine-management system, fault codes may indicate:

* Individual glow plug circuit faults

* Open circuit

* Short to ground

* Short to positive

* Glow plug control module fault

* Communication or activation problems

Electrical testing should be carried out using appropriate equipment because the glow plug system operates at relatively high current.

Installation

Installation is normally straightforward once the original module has been located.

Before replacement:

* Switch the ignition off

* Disconnect the battery where required by workshop procedure

* Check the connector for corrosion or overheating

* Inspect wiring for damaged insulation

* Confirm the OE number on the original unit

After installation, clear stored fault codes where appropriate and test the vehicle from cold.

Programming / Coding

Programming or coding is normally not required when replacing the glow plug control module with the correct matching specification.

The module generally operates according to commands received from the engine ECU.

Diagnostic fault codes may need to be cleared after replacement.

Important Compatibility Note

Please compare before ordering:

* OE number – 038907281B

* Connector shape

* Number of electrical pins

* Mounting arrangement

* Engine code

* Vehicle production date

* Original module markings

Aftermarket cross-reference data lists 038907281B as a 12V glow plug control module and shows several replacement references, but these cross-references should not be taken to mean every diesel engine uses exactly the same control strategy.

Do not order purely by vehicle model, engine capacity or year.

Condition

Genuine Volkswagen used electrical component.

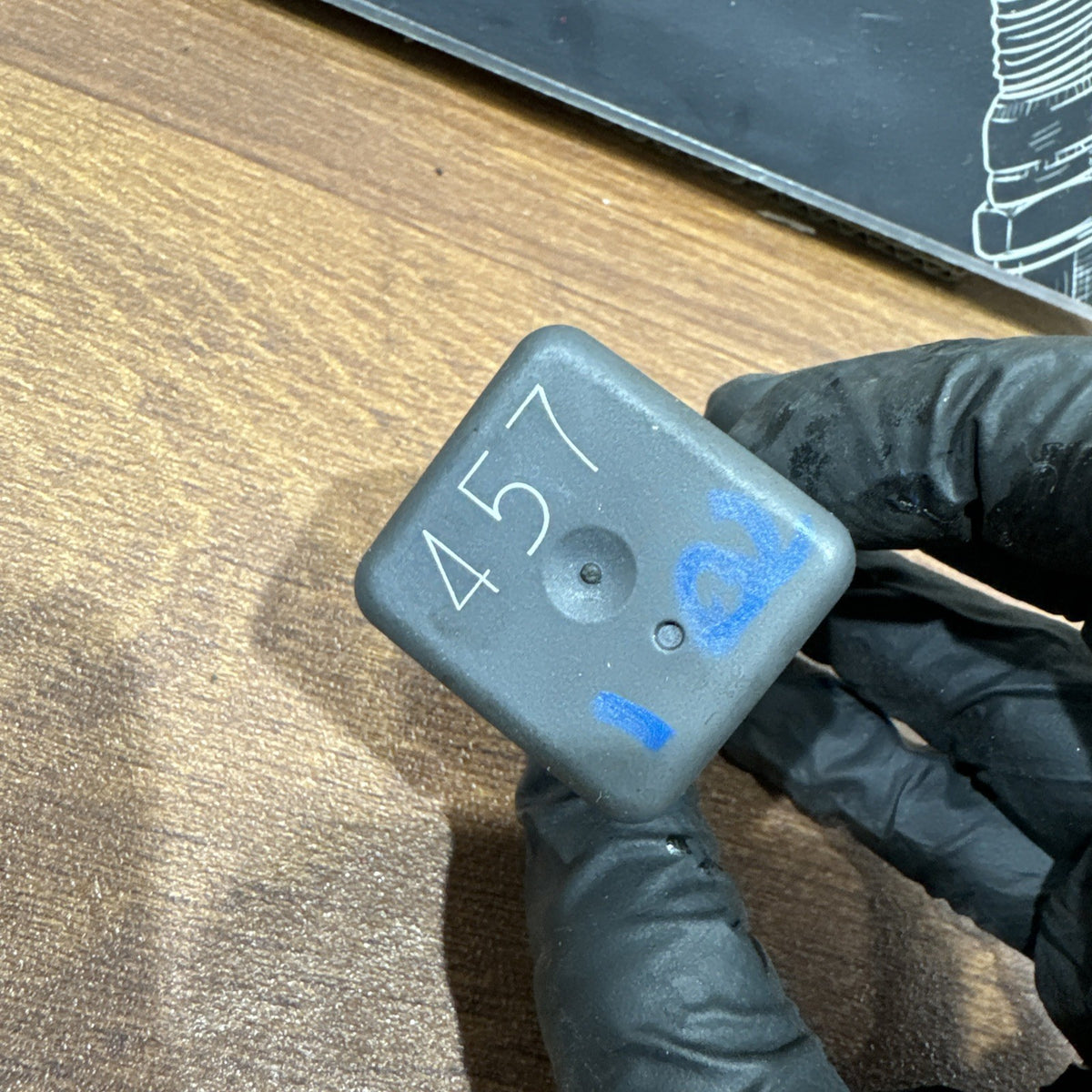

The unit may show normal signs of previous use including light marks, dirt, scratches or signs of removal/storage.

Please inspect the listing photographs carefully for the exact condition, connector and identification numbers supplied.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a faulty, damaged or non-operating VW Transporter T5 diesel glow plug control unit / relay, provided the original 038907281B part number and connector specification match.
