VW Transporter T5 Sliding Door Contact Point Connector Left N/S 7H0907437C

#85

♻ GENUINE VW TRANSPORTER T5 LEFT N/S SLIDING DOOR CONTACT POINT CONNECTOR 7H0907437C ♻

Genuine used Volkswagen Transporter T5 left-hand sliding door electrical contact point / connector unit, fitted to the sliding-door electrical system. This component provides the electrical connection between the vehicle body and the left sliding door when the door is closed, allowing power and control signals to pass to the door-mounted electrical equipment.

Part Number: 7H0907437C

VW OE Number: 7H0 907 437 C

Part Type: Sliding Door Electrical Contact / Contact Point / Connector

Position: Left Sliding Door

UK Vehicle Side: N/S / Nearside / Passenger Side

PR Code: 5Q2 – Sliding Door Left in Load / Passenger Compartment

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

Volkswagen parts data identifies 7H0907437C specifically as the LEFT sliding-door electrical contact for Transporter models equipped with PR code 5Q2 – left sliding door in the load/passenger compartment. (OEM Wolf)

Confirmed applications include selected:

* Volkswagen Transporter T5 – 2008

* Volkswagen Transporter T5 – 2009

* Volkswagen Transporter T5 / early T5.1 – selected 2010 applications

* Transporter Panel Van / Furgon

* Transporter Kombi

* Caravelle / Multivan variants where equipped with the same left sliding-door contact system

For 2008 vehicles, the catalogue shows 7H0907437C as the later left-side contact following earlier revision 7H0907437B. (OEM Wolf)

For 2009, VW lists 7H0907437C as the left contact for vehicles from the specified VIN break onward. (OEM Wolf)

For 2010 production, 7H0907437C continued on selected vehicles up to approximately 15 February 2010, after which later revisions such as 7H0907437D and subsequently 7E0907437 were introduced. (OEM Wolf)

Technical Information

The sliding-door contact unit forms part of the electrical interface between the fixed vehicle body and the moving sliding door.

When the sliding door closes, the contact points align with the corresponding contact plate and complete the electrical circuits.

Its functions can include transmitting power or signals for:

* Central locking

* Door-open / closed detection

* Interior lighting

* Alarm system

* Door lock status

* Other sliding-door electrical equipment depending on vehicle specification

Because the sliding door moves along rails rather than conventional hinges, this contact system allows electrical connection without relying solely on a continuously flexing wiring loom.

Sliding Door Electrical System Information

This unit works together with the corresponding body-side / door-side contact components.

For left sliding-door applications, VW catalogue data also lists 7H0907497A as the corresponding left contact plate in the same system. (OEM Wolf)

The right-hand equivalent contact is different: 7H0907438C is identified for right-side sliding-door applications. (OEM Wolf)

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Sliding-door central locking works intermittently

* Door does not lock or unlock correctly

* Vehicle does not recognise the door as closed

* Interior lights stay on

* Alarm system reports the sliding door as open

* Electrical functions work only when pressure is applied to the door

* Contact pins are worn

* Contacts are corroded

* Housing is cracked

* Mounting points are damaged

* Electrical terminals are burnt or contaminated

Important Diagnostic Information

Before replacing the contact unit, also inspect:

* Corresponding contact plate

* Contact pins

* Wiring behind the connector

* Electrical plugs

* Door alignment

* Sliding-door lock mechanism

* Central locking actuator

* Earth connections

* Fuses

* Door wiring loom

Dirty, oxidised or misaligned contacts can cause intermittent faults even when the unit itself is not internally damaged.

The sliding door should also be checked for correct alignment, as excessive movement can prevent the contacts from mating correctly.

Installation

Typical installation may involve:

1. Opening the sliding door.

2. Removing any trim required to access the rear of the contact unit.

3. Disconnecting the electrical plug.

4. Removing the retaining screws.

5. Installing the replacement contact unit.

6. Reconnecting the wiring.

7. Checking alignment with the opposing contact plate.

8. Testing central locking and door-open detection.

Correct positioning is important to ensure reliable electrical contact every time the sliding door closes.

Programming / Coding

No programming or coding is normally required.

This is primarily an electrical contact interface and should operate with the existing vehicle wiring once correctly installed.

Diagnostic fault codes may need clearing if the vehicle previously recorded sliding-door or central-locking faults.

Important Compatibility Note

Before ordering, please compare:

* OE number 7H0907437C

* Left / N/S sliding-door position

* PR code 5Q2

* Electrical contact layout

* Connector shape

* Number of terminals

* Mounting-hole positions

* Housing design

* Production date / VIN

* Your original part against the listing photographs

This part should not be advertised as a universal 2003–2015 T5 contact, because Volkswagen used several revisions.

The verified sequence includes:

* 7H0907437B – earlier left-side version

* 7H0907437C – later T5 version

* 7H0907437D – subsequent revision

* 7E0907437 – later replacement/application from 2011 production onward

VW’s catalogue specifically shows 7H0907437C on 2008–2010-era vehicles, with VIN and production-date restrictions. (OEM Wolf)

Condition

Genuine used Volkswagen part.

As a used electrical contact component, it may show normal signs of previous use including:

* Surface marks

* Minor oxidation

* Contact wear

* Dust or residue

* General age-related cosmetic wear

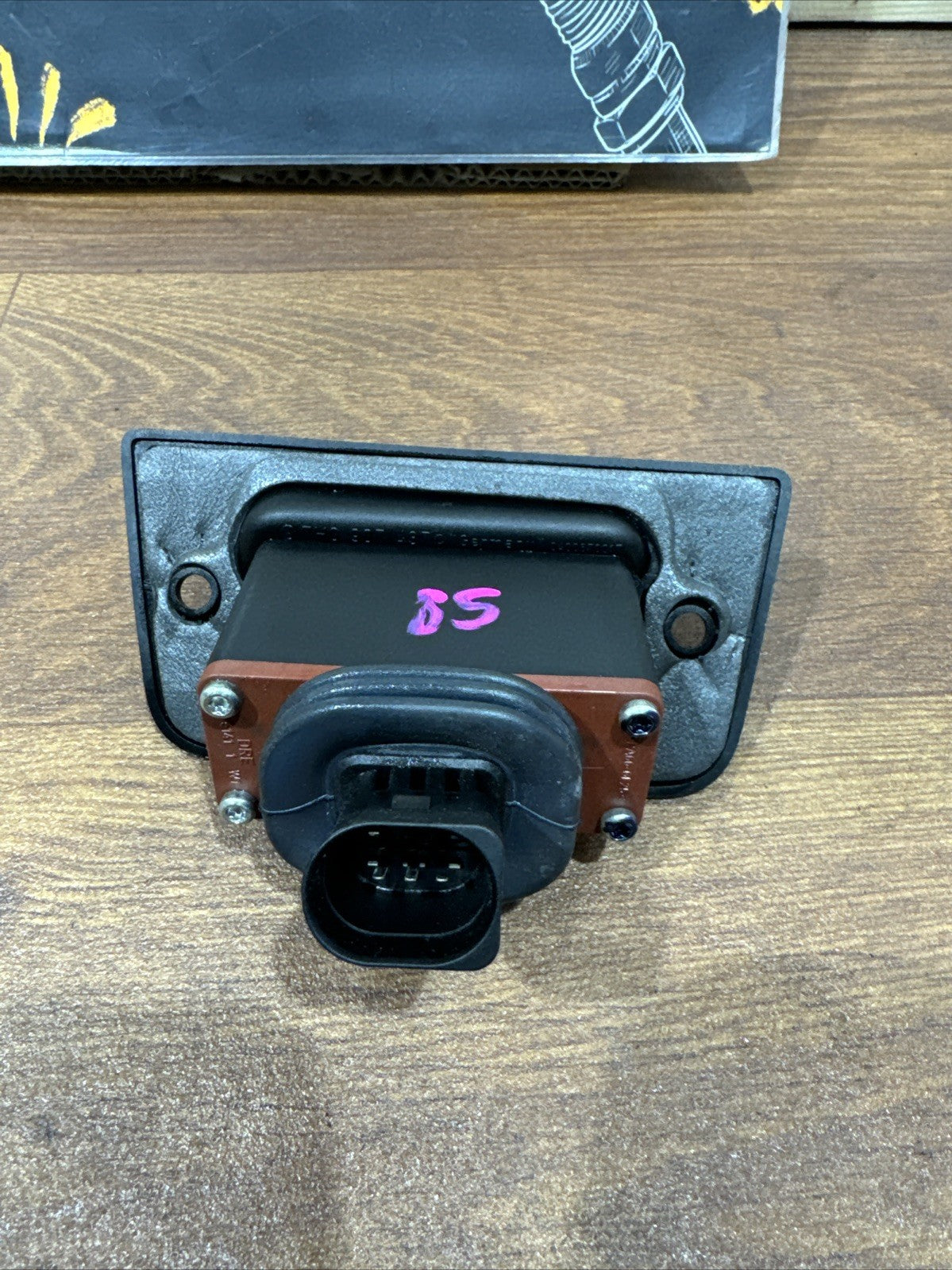

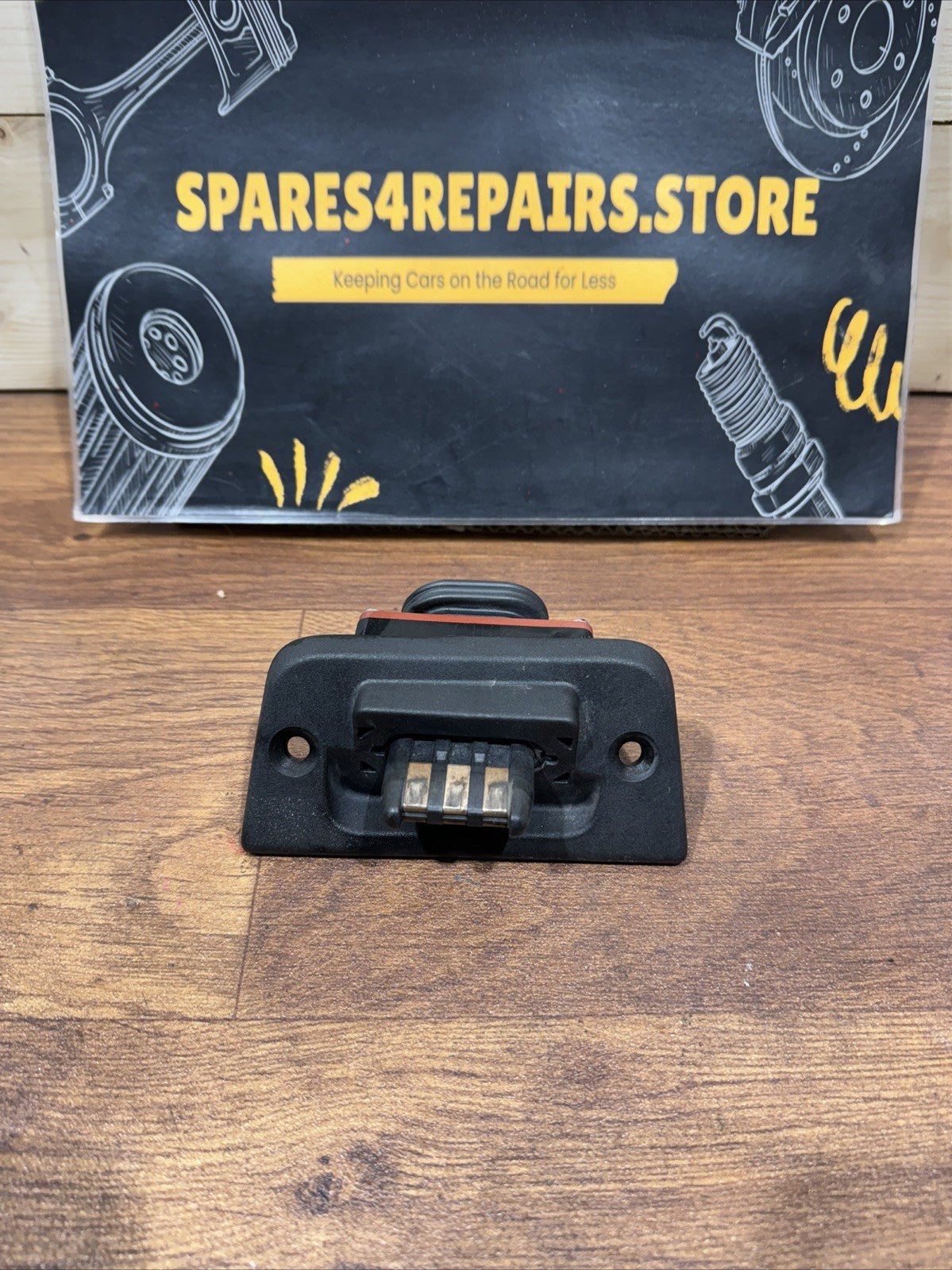

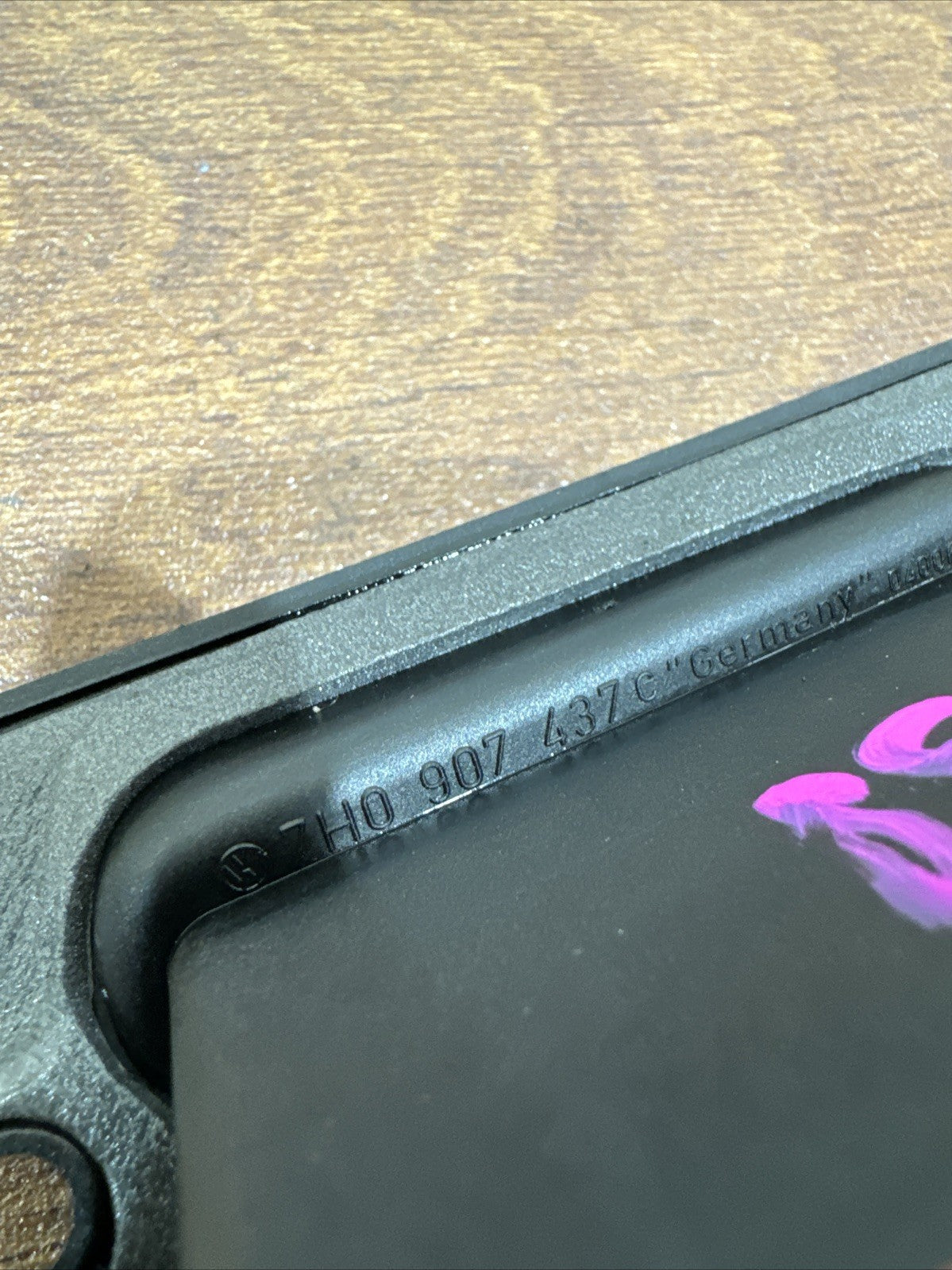

Please inspect all listing photographs carefully for the exact condition, terminals, connector, mounting points and contact surfaces.

An ideal genuine replacement for a worn, corroded, damaged or faulty VW Transporter T5 left N/S sliding-door contact point connector.
