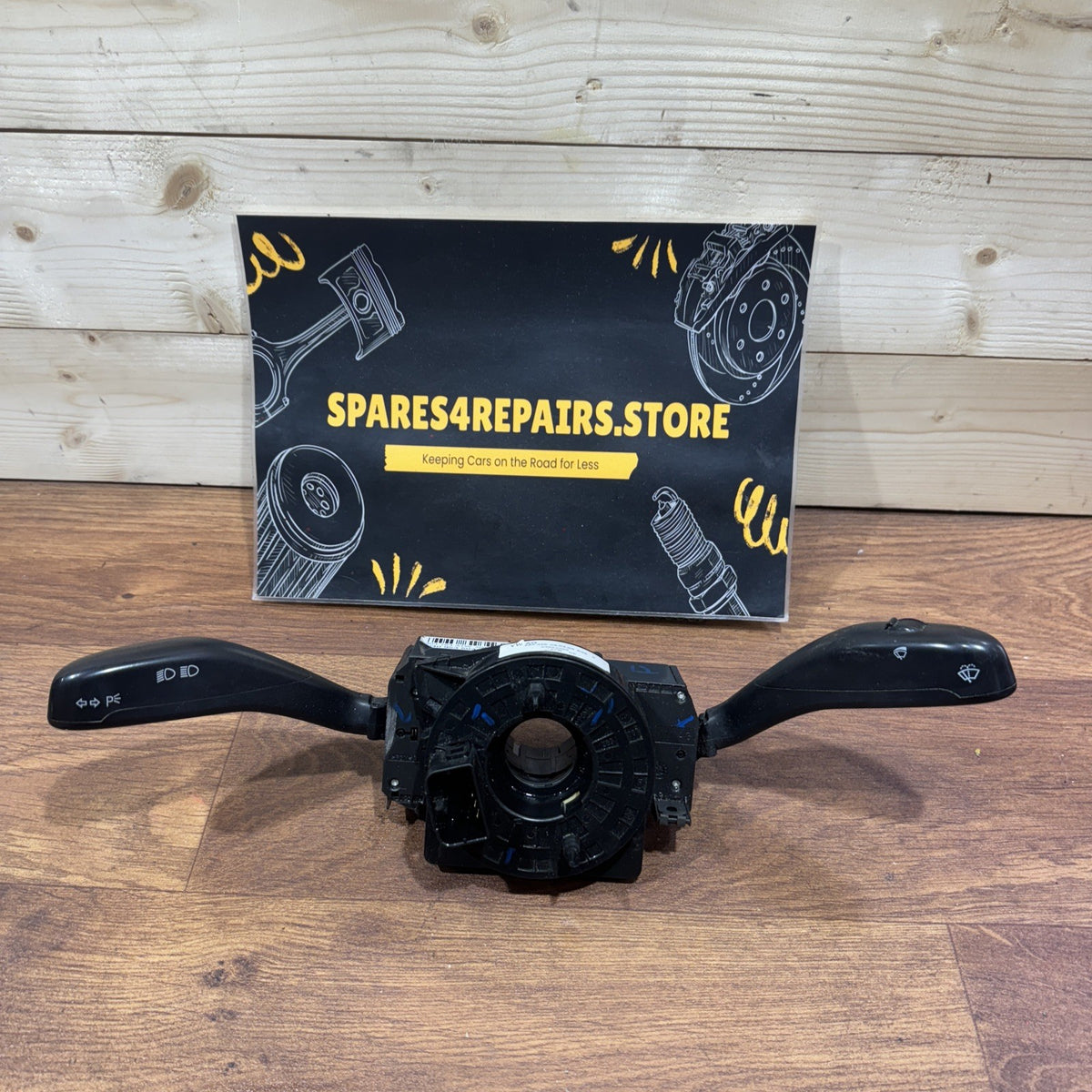

VW TRANSPORTER T5 STEERING COLUM SWITCH SQUIB 6Q0953503CD

#12

Genuine used Volkswagen Transporter T5 steering column combination switch / stalk assembly with squib, part number 6Q0953503CD. This assembly is fitted around the steering column behind the steering wheel and operates several driver-control functions including indicators, lighting and front windscreen wipers.

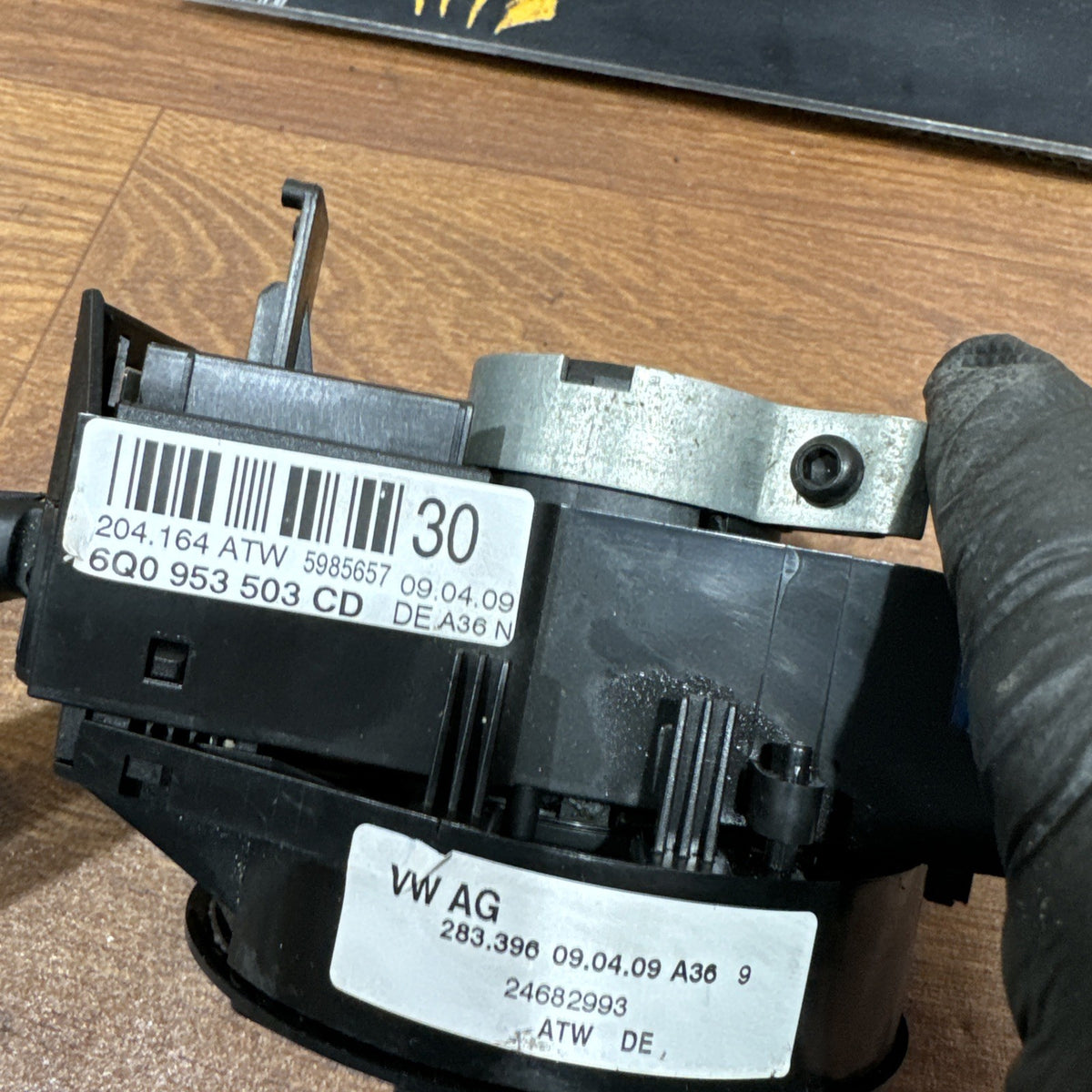

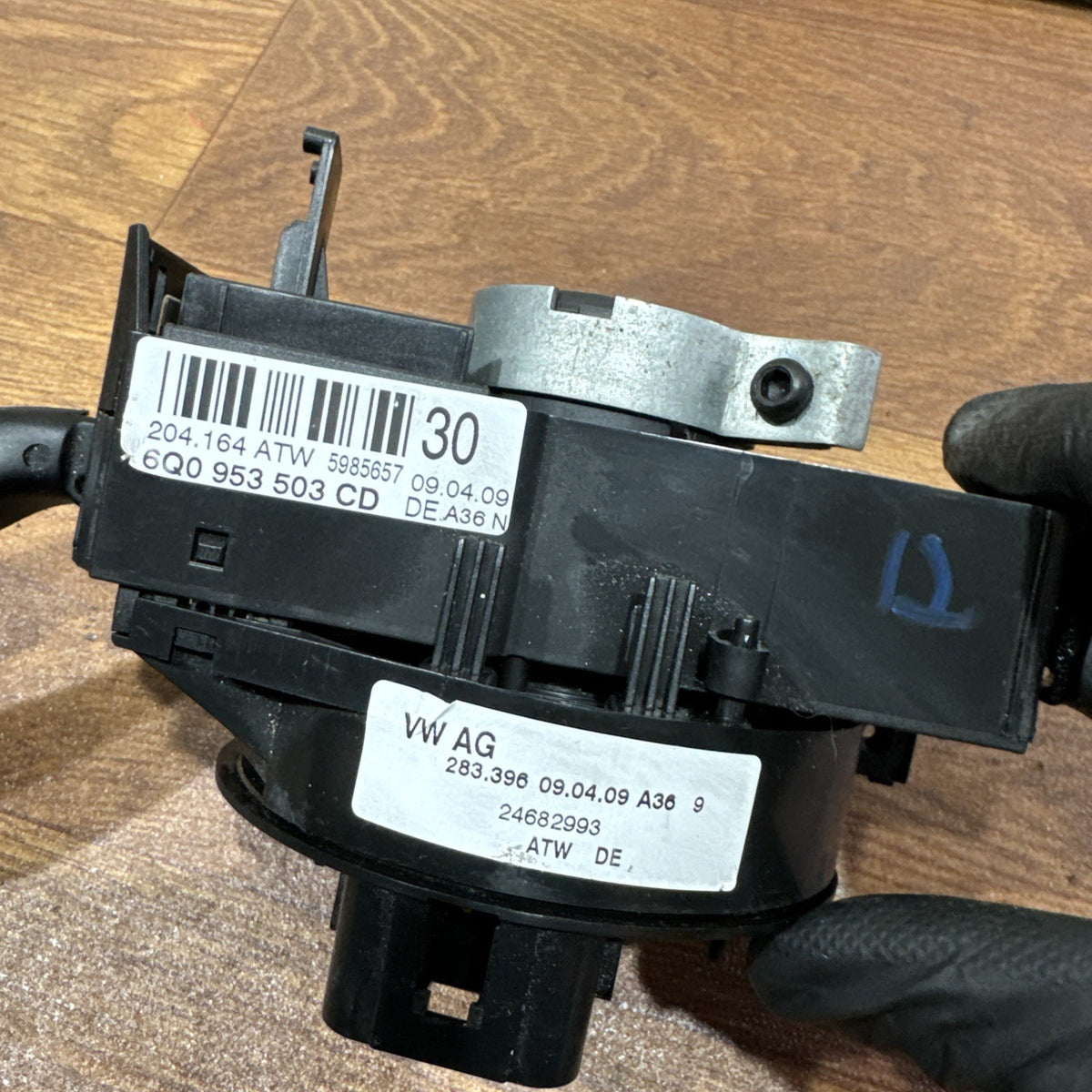

Part Number: 6Q0953503CD

VW OE Number: 6Q0 953 503 CD

Associated Reference: 6Q0953513D – found on related wiper-stalk assemblies

Part Type: Steering Column Combination Switch / Indicator & Wiper Stalk Assembly / Squib Assembly

Position: Steering Column – Behind Steering Wheel

Colour: Black

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* VW Caravelle T5 – selected models

* VW Multivan T5 – selected models

* Panel van, Kombi and passenger variants with the matching steering-column switch specification

The 6Q0953503CD reference is listed for Volkswagen Transporter T5 multifunction steering-column switch applications. (eBay UK)

This version is commonly associated with vehicles:

* Without cruise-control function

* Without onboard-computer / multifunction-display control

* With indicator operation

* With headlight/main-beam switching

* With front windscreen wiper operation

* With windscreen washer operation

Exact equipment specification must be compared with the original unit before purchase. (Autokšeft)

Technical Information

The steering-column combination switch assembly is mounted directly around the steering column behind the steering wheel.

Depending on vehicle specification, the assembly controls:

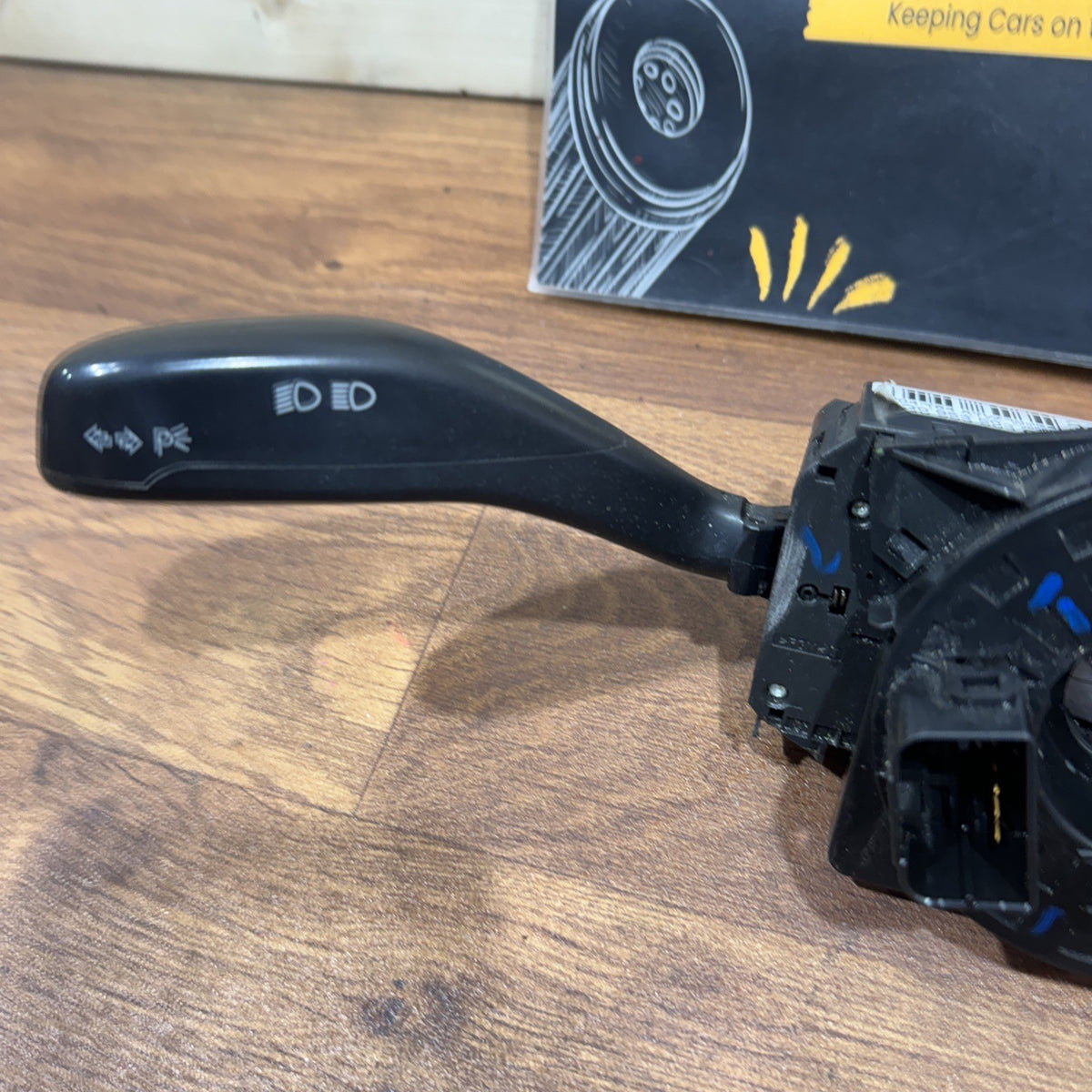

* Left and right indicators

* Main beam / dipped-beam switching

* Headlight flash function

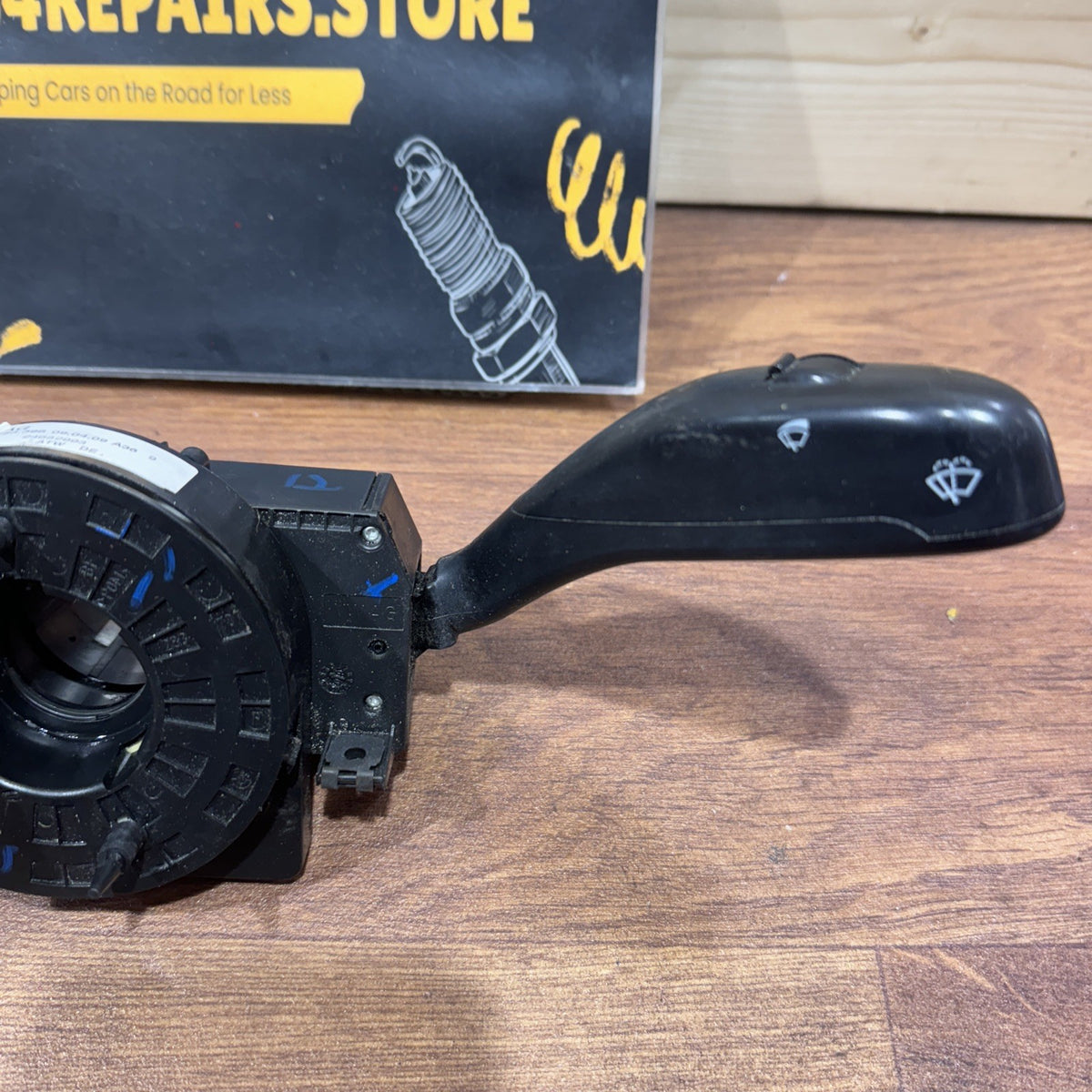

* Front windscreen wipers

* Intermittent wiper function

* Windscreen washer operation

* Parking-light / indicator functions where fitted

The unit provides the driver’s mechanical control inputs to the vehicle’s electrical system.

Steering Column & Squib System Information

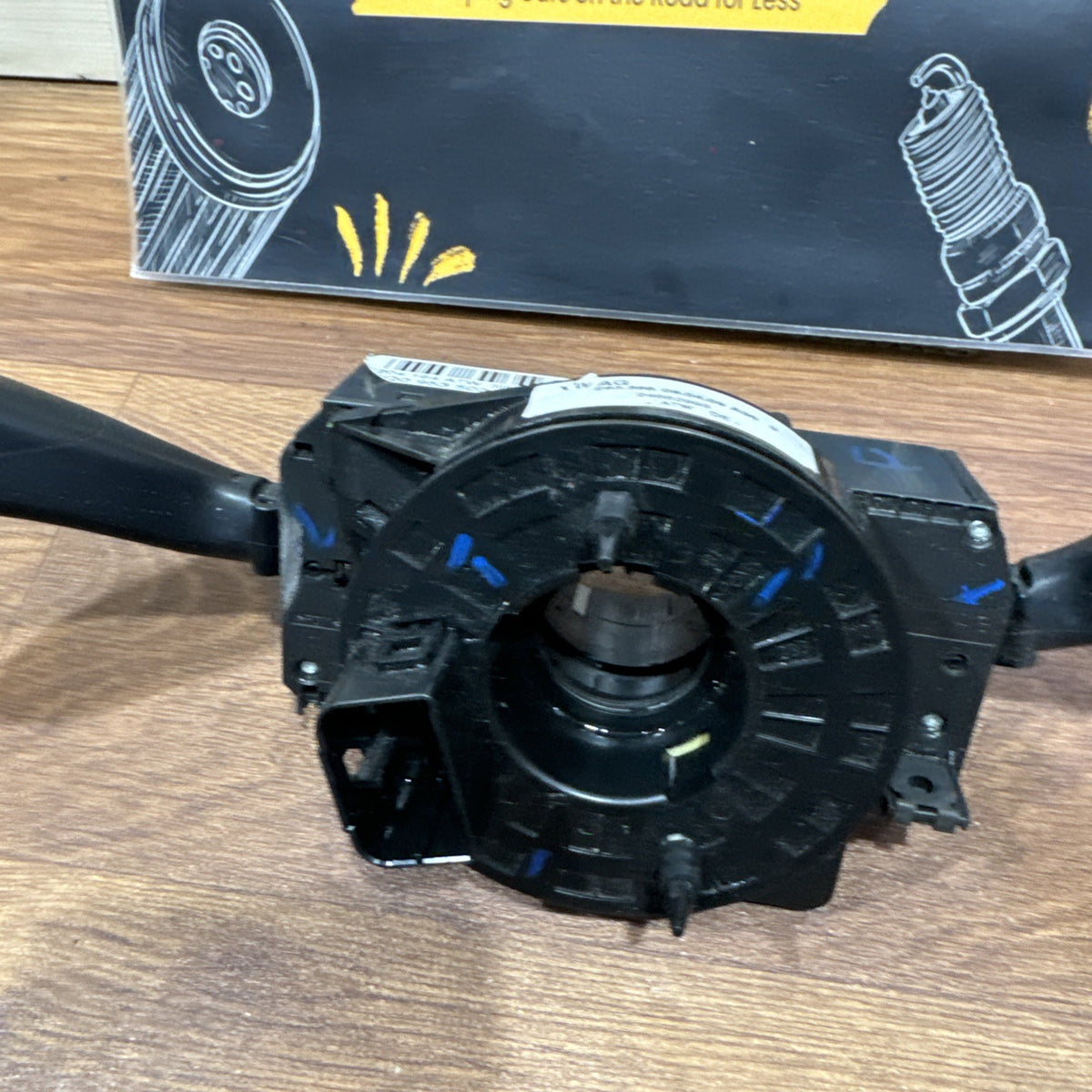

The steering-column assembly sits directly behind the steering wheel and works together with the steering-wheel electrical connection / clock-spring or squib arrangement.

The squib section provides a rotating electrical connection between the fixed steering column wiring and steering-wheel-mounted electrical components.

Depending on vehicle specification, this may include connections associated with:

* Driver airbag

* Horn

* Steering-wheel electrical circuits

Because the airbag system is safety-critical, steering-wheel and squib work should be carried out carefully and according to the manufacturer’s procedures.

Common Symptoms / Reasons for Replacement

Typical reasons for replacing the steering-column switch assembly include:

* Indicators not operating correctly

* Indicators intermittently cancelling or failing to cancel

* Main beam not switching correctly

* Headlight flash function not working

* Wipers operating intermittently

* Windscreen washer switch not responding

* Wiper speeds not selecting correctly

* Loose or physically damaged stalk

* Internal electrical-contact failure

* Steering-column switch becoming intermittent

* Damaged squib or steering-wheel electrical connection

Important Diagnostic Information

Before replacing the assembly, check for:

* Blown fuses

* Damaged steering-column wiring

* Loose electrical connectors

* Wiper motor or relay faults

* Indicator relay / control-system faults

* Steering-column control wiring

* Airbag fault codes where the squib is suspected

* Damage caused during previous steering-wheel removal

A failed stalk switch can create intermittent symptoms, but similar faults can also originate elsewhere in the vehicle’s electrical system.

Airbag Safety Information

The steering wheel contains an airbag system.

Before removing or installing steering-column components:

* Disconnect the vehicle battery according to manufacturer procedures

* Follow the specified waiting period before disconnecting airbag components

* Do not apply electrical power directly to airbag wiring

* Do not rotate the squib excessively when disconnected

* Ensure the squib is correctly centred before steering-wheel installation

Incorrect positioning of the squib can damage the internal ribbon cable when the steering wheel is turned fully.

Installation

Installation normally requires removal of:

* Driver airbag

* Steering wheel

* Steering-column covers

* Relevant electrical connectors

The replacement assembly should be installed in the same position and orientation as the original unit.

After installation, check:

* Indicators

* Main beam

* Headlight flash

* Windscreen wipers

* Washer function

* Horn

* Airbag warning light

Programming / Coding

The mechanical stalk assembly itself normally does not require programming when replaced with an identical specification.

However, if an airbag or steering-related warning remains after installation, diagnostic fault-code scanning and clearing may be required.

Important Compatibility Note

Please compare before ordering:

* OE number – 6Q0953503CD

* All additional suffix letters/numbers

* Electrical connectors

* Connector pin arrangement

* Number and style of stalks

* Cruise-control function – if equipped

* Onboard-computer / MFA buttons – if equipped

* Squib / clock-spring configuration

* Vehicle production year

There are several visually similar T5 steering-column switches with different functions, particularly for vehicles with cruise control or onboard-computer controls.

Matching the complete OE number and stalk functions is strongly recommended before purchase.

Condition

Genuine Volkswagen used part.

The item may show normal signs of previous use including light marks, scratches or wear to the stalk symbols and surrounding plastics.

Please inspect all listing photographs carefully for the exact condition, electrical connectors and components included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a faulty, damaged or intermittently operating VW Transporter T5 indicator / wiper steering-column switch and squib assembly.
