VW Transporter T5 T5.1 10-15 2.0 TDI Turbo Boost pipe intercooler pipe 7E0145708

#102

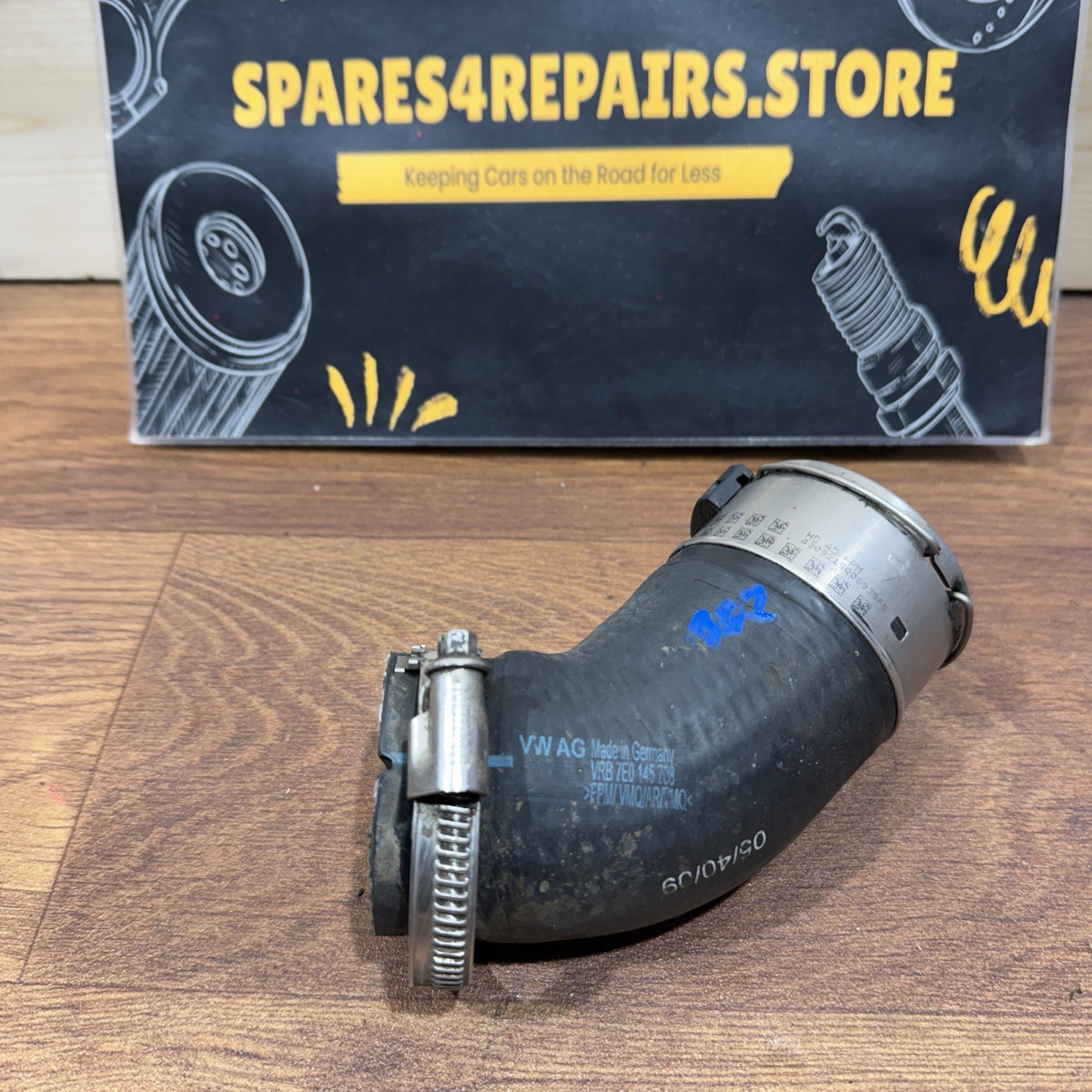

♻ GENUINE VW TRANSPORTER T5.1 2.0 TDI TURBO BOOST / INTERCOOLER CHARGE AIR PIPE 7E0145708 ♻

Genuine used Volkswagen Transporter T5.1 turbo boost pipe / intercooler charge-air hose, fitted in the pressurised intake system on selected 2.0 TDI common-rail diesel engines. This hose carries compressed air through the turbo/intercooler system and must remain properly sealed to maintain correct boost pressure and engine performance.

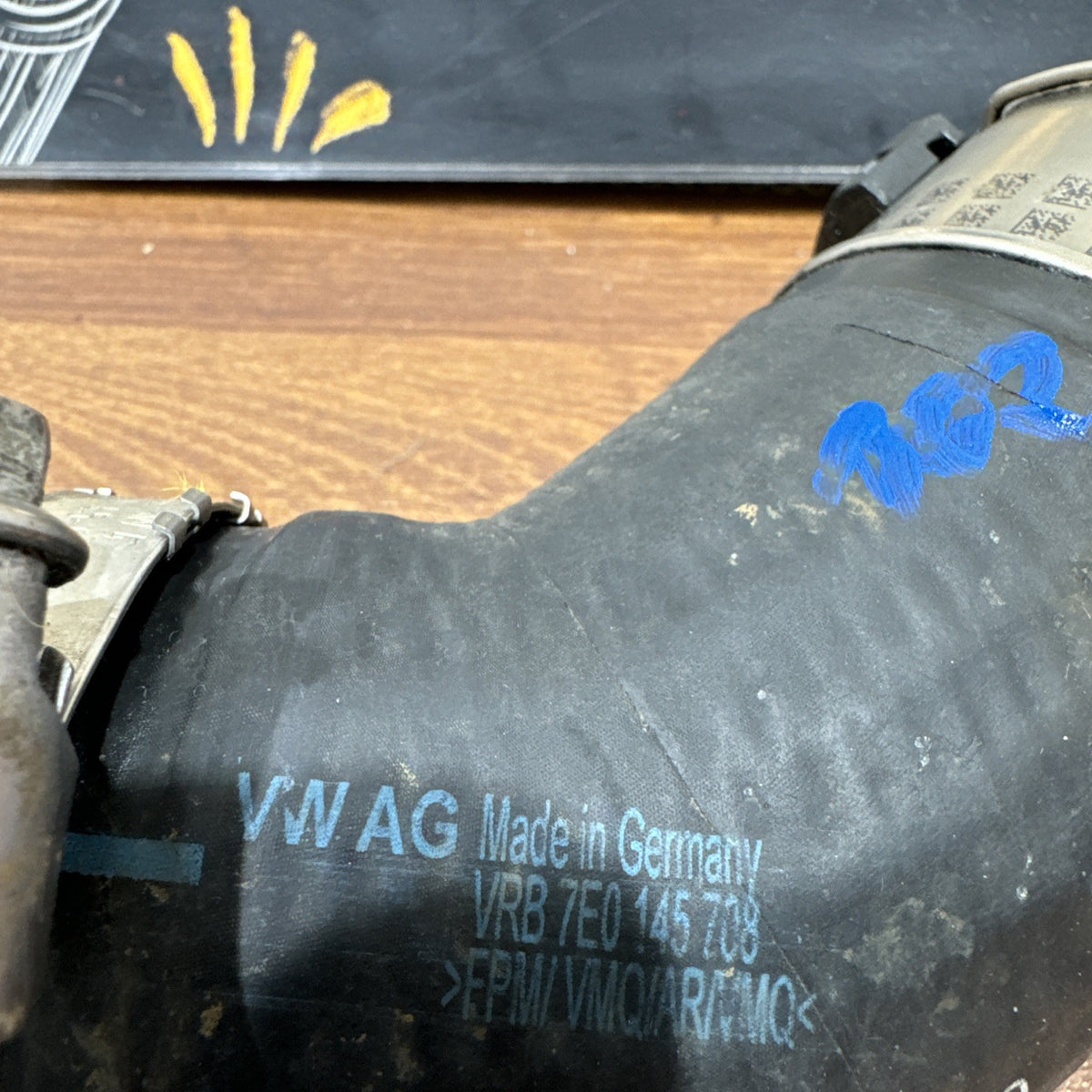

Part Number: 7E0145708

VW OE Number: 7E0 145 708

Later / Cross-Reference Number: 7E0145708B

Part Type: Turbo Boost Pipe / Intercooler Hose / Charge Air Hose

System: Turbocharger / Intercooler / Charge Air System

Fuel Type: Diesel

Engine Family: 2.0 TDI Common Rail

Vehicle: Volkswagen Transporter T5.1

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

OE 7E0145708 is documented on Transporter / Caravelle T5 2.0 TDI applications from the facelift period. One detailed fitment source confirms the part on CAAB 2.0 TDI 102 PS / 75 kW from 2009 through 2015.

Broader OE-equivalent fitment data for 7E0145708 / 7E0145708B confirms selected:

* Volkswagen Transporter T5.1 – 2009/2010–2015

* Transporter Panel Van / Furgon

* Transporter Bus / Kombi

* Caravelle T5

* Multivan T5

* California T5

* Selected FWD applications

* Selected 4Motion applications

Confirmed 2.0 TDI outputs include:

* 84 PS / 62 kW – CAAA

* 102 PS / 75 kW – CAAB

* 114 PS / 84 kW – CAAD

* 136 PS / 100 kW – CAAE / CCHB

* 140 PS / 103 kW – CAAC / CCHA

These applications are documented for the 2009/2010–2015 T5 generation, with some 4Motion versions also included.

T6 Compatibility

The same 7E0145708 / 7E0145708B family also appears on selected early Transporter / Multivan / California T6 2.0 TDI applications, including some CAAC-powered vehicles through around 2019.

For this used part, however, I would keep the primary advertised fitment as:

VW Transporter T5.1 2.0 TDI 2010–2015

and treat T6 fitment as secondary unless the buyer matches the OE number and pipe shape.

Supersession / Cross-Reference Information

The original:

7E0145708

is commonly cross-referenced with:

7E0145708B

Current OE-equivalent parts catalogues list both numbers against the same charge-air hose replacements.

This makes 7E0145708B useful to include in your eBay description and search terms.

Technical Information

This pipe forms part of the engine’s pressurised charge-air system.

Its main functions include:

* Carrying compressed turbocharged air

* Connecting sections of the intercooler / intake system

* Maintaining boost pressure

* Delivering cooled compressed air toward the engine

* Supporting correct engine torque and power

* Helping the ECU maintain requested air mass

* Preventing charge-pressure loss

A UK used-parts specialist describes 7E0145708 specifically as a T5 diesel intercooler / turbo air-intake pipe.

Turbo / Intercooler System Information

The pipe works together with:

* Turbocharger

* Intercooler

* Other charge-air hoses

* Intake manifold

* Throttle / anti-shudder valve

* MAP / boost-pressure sensor

* MAF sensor

* EGR system

* Engine ECU

The turbocharger compresses incoming air before it passes through the intercooler. The intercooler reduces its temperature, increasing air density before it enters the engine.

Any leak in this pressurised circuit can reduce engine performance.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Hose is split

* Pipe has developed a crack

* Connection flange is damaged

* Retaining clip no longer holds correctly

* Seal / O-ring is worn

* Hose has become oil-soaked or soft

* Pipe has been damaged during engine repairs

* Connection has become loose

* Hose has collapsed or distorted

Common Symptoms of a Boost Leak

A damaged charge-air pipe may cause:

* Loss of engine power

* Poor acceleration

* Turbo lag

* Limp mode

* Hissing or whooshing under acceleration

* Black exhaust smoke

* Engine management light

* Underboost fault codes

* Increased fuel consumption

* Oil staining around the pipe joints

A small amount of oily residue inside diesel boost pipes can be normal, but obvious external oil staining around a connection often indicates escaping boost pressure.

Important Diagnostic Information

Before replacing the pipe, also inspect:

* Intercooler

* Adjacent boost hoses

* Retaining clips

* O-rings / seals

* Turbocharger outlet

* Intake connections

* MAP sensor

* MAF sensor

* EGR system

* Turbo actuator

* Vacuum / boost-control components

A turbo underboost fault does not automatically mean the turbocharger itself has failed.

A split boost hose or leaking seal can produce very similar symptoms.

Installation

Typical installation may involve:

1. Allowing the engine to cool.

2. Removing the undertray or surrounding intake components where necessary.

3. Releasing the pipe retaining clips.

4. Disconnecting the existing charge-air hose.

5. Inspecting both mating connections.

6. Checking sealing rings / O-rings.

7. Installing the replacement pipe.

8. Locking the retaining clips fully into place.

9. Checking adjacent boost connections.

10. Running the engine and checking for air leaks.

New sealing rings are recommended where the existing seals are flattened, hardened or damaged.

Programming / Coding

No programming or coding is required.

This is a mechanical turbo / charge-air component.

Any previously stored boost-pressure fault codes may need clearing after the repair.

Important Compatibility Note

Before ordering, please compare:

* OE number 7E0145708

* Later / cross-reference 7E0145708B

* Engine code

* Engine power output

* FWD / 4Motion configuration

* Hose shape

* Hose length

* Connection diameters

* Retaining clip design

* Intercooler / intake connections

* Your original pipe against the listing photographs

* VIN where possible

The strongest T5.1 engine compatibility is:

CAAA / CAAB / CAAD / CAAE / CAAC / CCHA / CCHB

I would not automatically advertise CFCA 180 PS BiTDI as confirmed for this exact pipe unless the original vehicle or OE catalogue match proves it, because the BiTDI charge-air system uses different pipework in several positions.

The safest main fitment is:

Volkswagen Transporter T5.1 2.0 TDI 2010–2015 – selected 84–140 PS applications using OE 7E0145708 / 7E0145708B.

Condition

Genuine used Volkswagen part.

As a used turbo / intercooler pipe, it may show normal signs of previous use including:

* Oil mist or residue

* Surface marks

* Light staining

* Wear around clip locations

* General age-related use

Please inspect all listing photographs carefully for the exact condition, connections, seals and retaining points.

An ideal genuine replacement for a split, leaking, damaged or faulty VW Transporter T5.1 2.0 TDI turbo boost / intercooler charge-air pipe 7E0145708 / 7E0145708B.
