VW Transporter T5 / T5.1 cargo lashing eye / floor tie-down anchor 7E0801899

#85

This heavy-duty factory tie-down point is fitted within the vehicle’s load/passenger compartment and provides a secure attachment point for suitable straps or restraints when securing cargo.

Part Number: 7E0801899

VW OE Number: 7E0 801 899

Part Type: Lashing Eye / Tie-Down Eye / Cargo Anchor / D-Ring

Application: Load Area / Cargo Floor

Position: Floor-mounted – position varies by vehicle configuration

Manufacturer: Volkswagen / VAG

Condition: Genuine used OEM part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5

* Volkswagen Transporter T5.1 / T5 GP

* Volkswagen Transporter T6

* Volkswagen Caravelle

* Volkswagen Multivan

* Volkswagen Shuttle

* Volkswagen Kombi

* Transporter Panel Van

* Passenger / minibus variants

* Selected camper and conversion applications retaining the corresponding factory mounting points

VW parts catalogues document 7E0801899 as a genuine Lashing Eye on Transporter applications.

Used genuine examples are also documented on T5/T5.1 vehicles, including 2013 RHD Transporters.

Technical Information

The lashing eye forms part of the vehicle’s cargo/load restraint system.

It provides a solid attachment point for suitable:

* Cargo straps

* Tie-down straps

* Load restraints

* Bungee systems where appropriate

* Cargo securing equipment

When folded down, the loop sits relatively flat against the mounting area. When required, the metal loop can be raised to provide an accessible attachment point.

Cargo Restraint System Information

Transporter vans can be equipped with multiple factory lashing points around the load area.

These allow cargo to be restrained against movement caused by:

* Acceleration

* Braking

* Cornering

* Uneven road surfaces

* Sudden vehicle manoeuvres

Correctly securing loads is particularly important in commercial vans because unsecured cargo can move significantly during sudden braking.

Related VW Components

VW catalogue information shows 7E0801899 alongside other components within the Transporter’s tie-down system.

Depending on the vehicle specification, related parts can include:

* Lashing eye

* Retaining washer

* Mounting hardware

* Floor mounting points

* Tie-down eye mounting brackets

Another lashing-eye reference found on Transporter applications is:

7H0801984A

This is a different lashing-eye component and should not automatically be assumed interchangeable with 7E0801899.

Common Reasons for Replacement

Typical reasons for replacing a cargo lashing eye include:

* Original eye missing

* Tie-down loop bent

* Mounting damaged

* Excessive corrosion

* Loop seized

* Previous cargo damage

* Vehicle converted back to load-carrying use

* Missing anchor following floor/interior replacement

* Damaged during commercial use

* Restoration of original cargo area

Important Safety Information

A lashing eye is part of the vehicle’s cargo restraint arrangement.

Before using a second-hand anchor to secure a load, inspect it carefully for:

* Bending

* Cracks

* Distortion

* Severe corrosion

* Damaged mounting holes

* Damaged pivot

* Excessive wear

* Previous welding or repair

* Damaged mounting hardware

A visibly damaged or distorted tie-down point should not be relied upon for securing heavy cargo.

Mounting Point Inspection

The vehicle-side mounting point is just as important as the lashing eye itself.

Before installation, inspect:

* Floor mounting point

* Threaded mounting

* Reinforcement beneath/around mounting area

* Bolt threads

* Washer

* Surrounding metalwork

If the mounting area is corroded, distorted or damaged, replacing the lashing eye alone will not restore a secure attachment point.

Installation

Before fitting:

* Compare 7E0801899 with the original

* Compare mounting-hole arrangement

* Check loop dimensions

* Check pivot movement

* Inspect mounting hardware

* Inspect vehicle mounting point

The lashing eye should be installed into the correct factory mounting position using the appropriate VW-specification hardware.

Once fitted, check that:

* Mounting is secure

* Eye does not have abnormal movement

* Loop folds correctly

* Loop raises correctly

* Mounting hardware is properly secured

Important Load-Securing Information

The lashing eye should only be used as part of an appropriate cargo-restraint system.

The safe load that can be restrained depends on the complete installation, including:

* Lashing eye

* Vehicle mounting structure

* Mounting hardware

* Tie-down strap

* Strap angle

* Cargo weight

* Load distribution

* Number of restraint points used

Do not assume a safe working-load rating based solely on the appearance of the lashing eye.

For heavy or commercial loads, use the appropriate vehicle/load-restraint specifications and correctly rated securing equipment.

Programming / Coding

No programming or coding is required.

This is a purely mechanical cargo-restraint component.

Important Compatibility Note

Please compare before ordering:

* OE number – 7E0801899

* Original lashing eye

* Mounting-hole arrangement

* Loop design

* Pivot design

* Mounting hardware

* Vehicle floor configuration

* Factory mounting point

* Vehicle body/interior specification

Do not confuse 7E0801899 with other Transporter lashing-eye designs such as 7H0801984A.

Compatibility is determined by the cargo-floor/mounting configuration, not engine size.

Matching 7E0801899 directly with the original component and mounting arrangement is strongly recommended.

Condition

Genuine Volkswagen used cargo lashing / tie-down eye.

As a used load-area component, normal signs of previous commercial use may include:

* Surface marks

* Scratches

* Paint wear

* Dirt

* Light surface corrosion

* General cosmetic wear

* Installation/removal marks

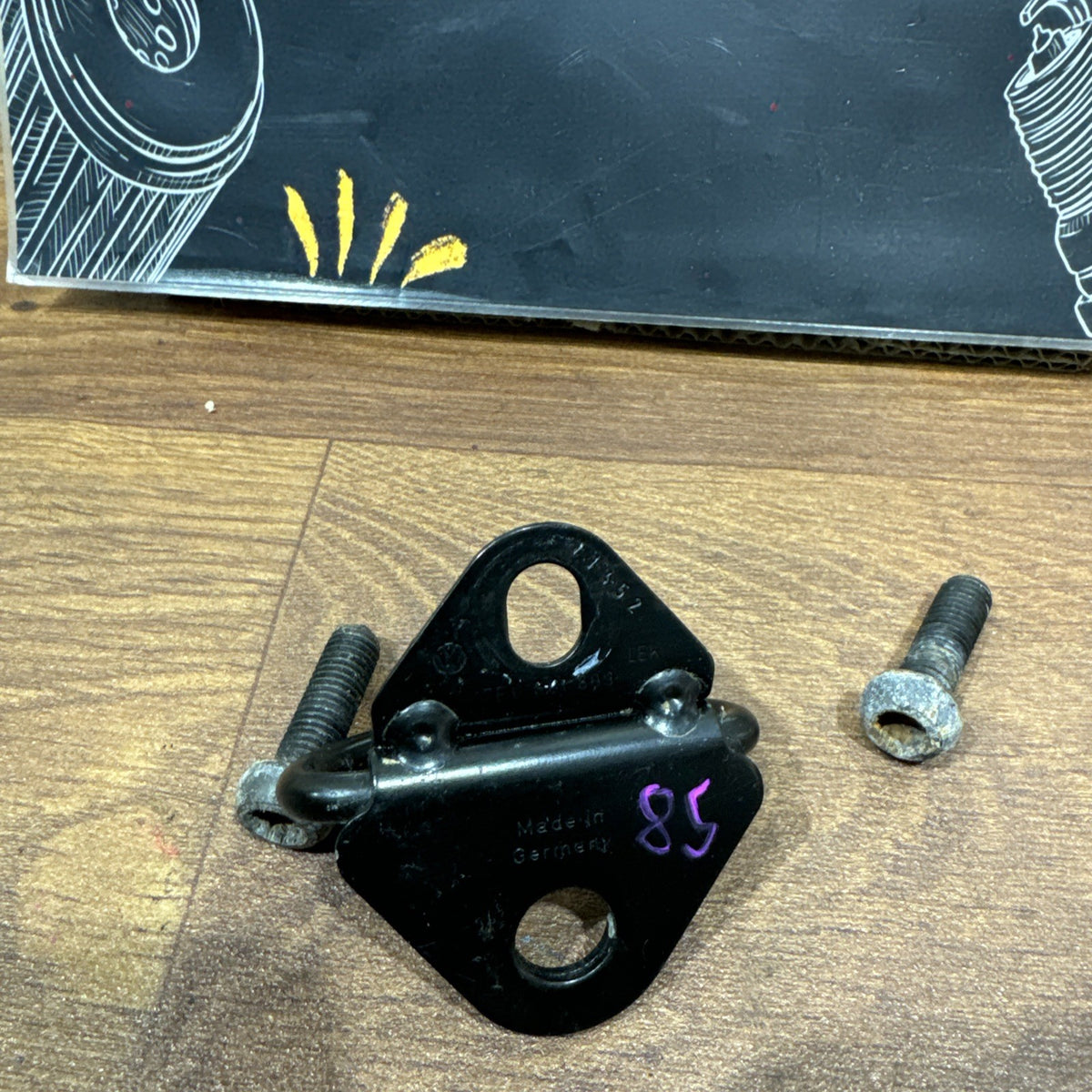

Please inspect all listing photographs carefully, particularly the:

* Metal loop

* Pivot

* Base

* Mounting holes

* Mounting surfaces

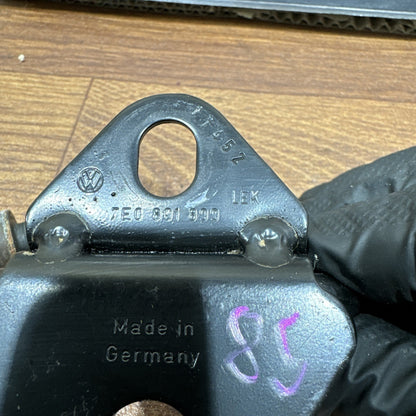

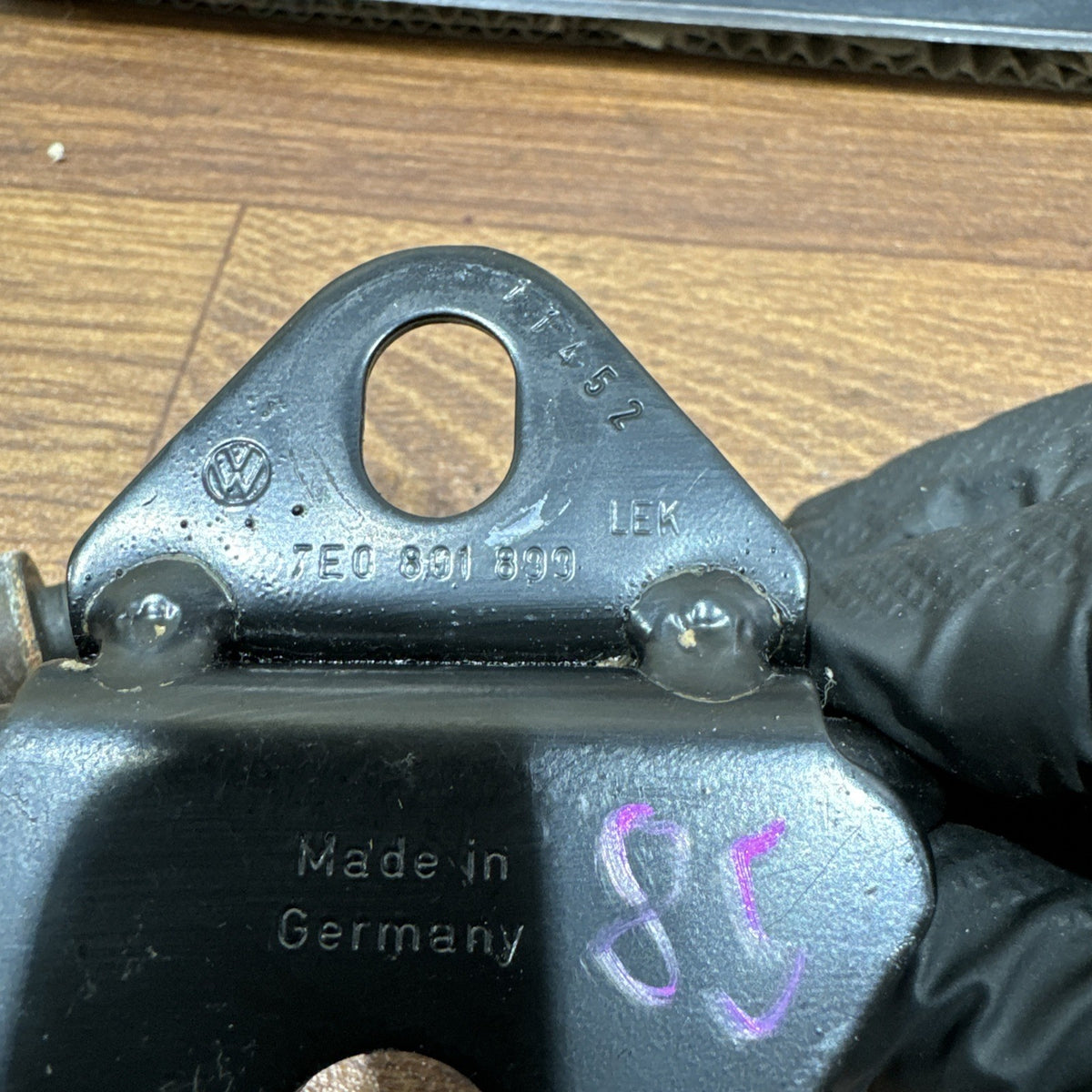

* OE markings

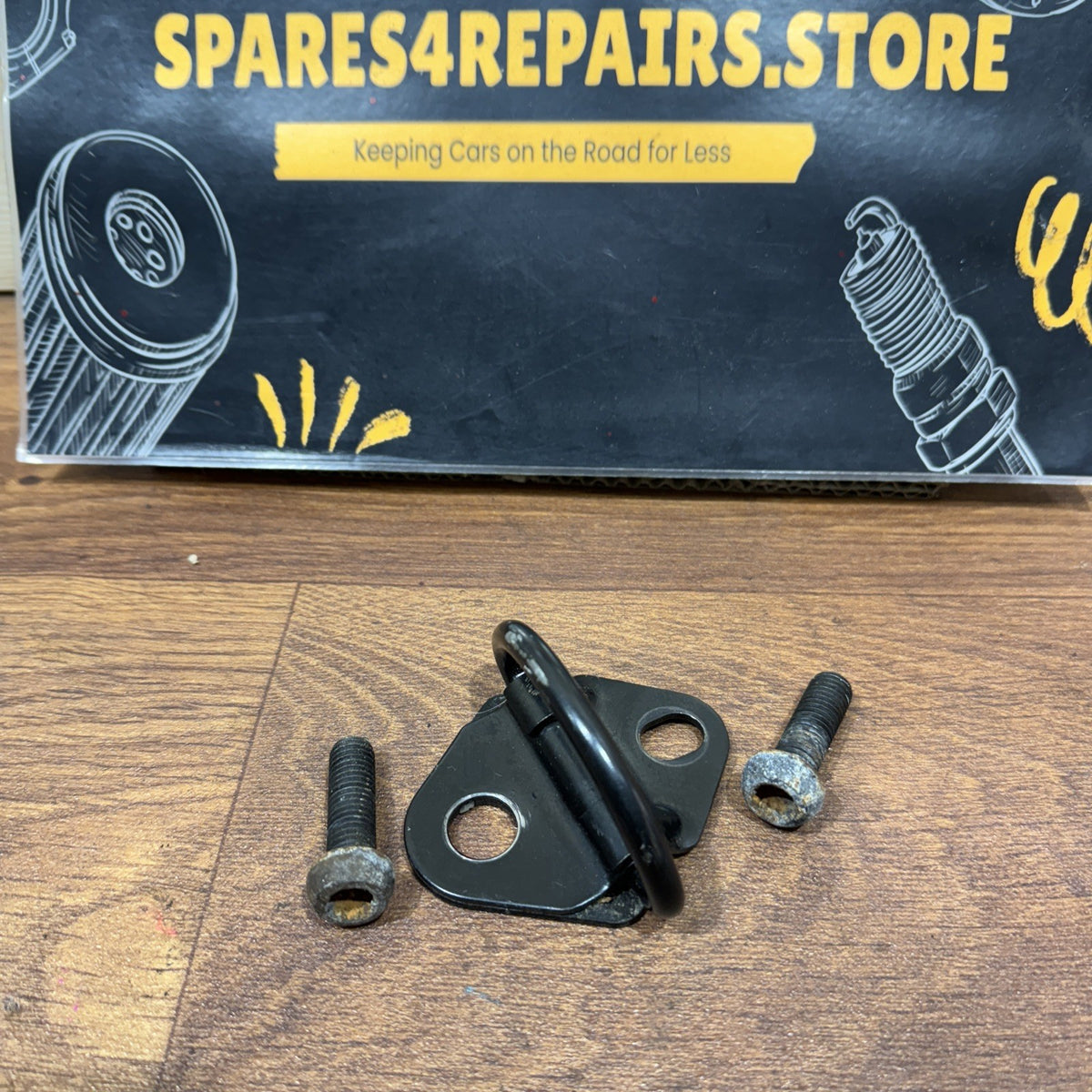

Mounting bolts, washers or additional fixings are included only where clearly shown in the listing photographs.

Only the lashing eye and components clearly shown are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a missing, bent, damaged, seized or corroded Volkswagen Transporter T5 / T5.1 cargo floor lashing eye / tie-down anchor, provided 7E0801899 / 7E0 801 899 matches the original mounting arrangement.
