VW TRANSPORTER T5, T5.1 Foot Well Flap Cable RHD 7H2819833C OEM

#85

Genuine used Volkswagen Transporter T5 / T5.1 footwell heater air-distribution flap control cable, part number 7H2819833C, designed for right-hand-drive (RHD) vehicles.

This mechanical HVAC control cable connects the dashboard heater/air-distribution control mechanism to the footwell air flap inside the heater box. Moving the air-distribution control operates the cable, which mechanically changes the position of the flap to direct heated or ventilated air towards or away from the vehicle’s footwell vents.

Part Number: 7H2819833C

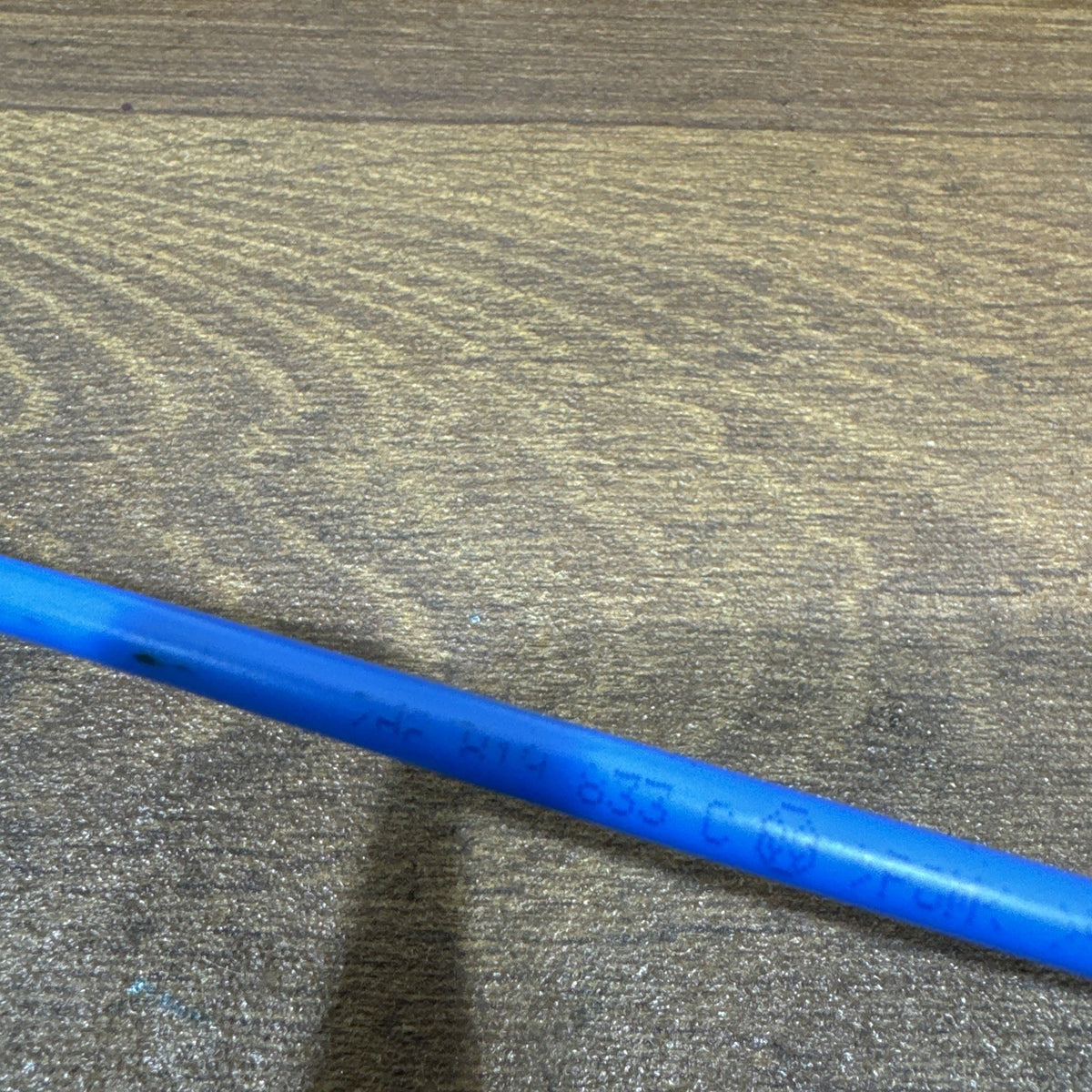

VW OE Number: 7H2 819 833 C

Part Type: Footwell Flap Control Cable / Heater Flap Cable / HVAC Bowden Cable

System: Heating / Ventilation / HVAC Air Distribution

Application: Footwell Air Distribution Flap

Vehicle Configuration: Right-Hand Drive – RHD

UK Application: Yes – selected UK-specification vehicles

VW Identification: Yellow / Blue

Manufacturer: Volkswagen / VAG

Condition: Genuine used OEM part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 / T5 GP – 2010–2015

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California T5 / T5.1

* Volkswagen Shuttle

* Transporter Panel Van

* Kombi / passenger versions

* Camper conversions using the corresponding factory dashboard/HVAC system

VW catalogue information documents 7H2819833C throughout the T5 generation from approximately 2003 to 2015.

Compatibility depends primarily on the RHD dashboard and heater/HVAC configuration, rather than engine size.

Right-Hand-Drive Information

This is an important compatibility point.

7H2819833C = RHD Footwell Flap Cable – Yellow/Blue

The corresponding left-hand-drive version is:

7H1819833C = LHD Footwell Flap Cable – Yellow/Black

Therefore, buyers should not assume that an equivalent-looking cable from a European LHD Transporter is interchangeable with the UK RHD version.

For a UK right-hand-drive T5/T5.1, 7H2819833C is the relevant RHD reference where the matching HVAC configuration is fitted.

Technical Information

The Transporter T5 heating and ventilation system uses internal flaps to control where air from the heater/blower assembly is directed.

Depending on the selected heater-control position, airflow can be directed towards areas such as:

* Windscreen

* Dashboard/front vents

* Driver’s footwell

* Passenger footwell

* Combined screen and footwell positions

On the applicable manually controlled system, the dashboard air-distribution control operates these flaps mechanically through Bowden-type control cables.

7H2819833C specifically operates the footwell flap.

Footwell Air Distribution System

When the dashboard air-distribution control is moved, the inner cable slides within its outer sheath.

This movement is transferred to the footwell flap mechanism inside the HVAC/heater housing.

Correct cable adjustment allows the flap to travel fully between its intended positions.

If the cable is damaged, disconnected or incorrectly adjusted, the dashboard control may move while the internal flap remains partially or completely stationary.

Common Symptoms / Reasons for Replacement

Typical reasons for replacing the footwell flap cable include:

* Cable snapped

* Cable stretched

* Inner cable seized

* Outer sheath damaged

* Cable kinked

* End fitting broken

* Retaining clip damaged

* Cable disconnected from heater control

* Cable disconnected from flap mechanism

* Air not being directed to footwell

* Airflow remaining permanently at footwell

* Incorrect air distribution

* Heater direction control becoming stiff

* Heater control knob difficult to turn

* Control knob moves without changing airflow

* Cable damaged during dashboard/heater repairs

Stiff Heater Control

If the air-direction control becomes unusually stiff, do not force the control knob.

Excessive resistance can be caused by:

* Seized control cable

* Kinked cable

* Incorrect cable routing

* Stiff HVAC flap

* Damaged flap mechanism

* Incorrectly fitted cable sheath

Continuing to force the control can potentially damage the dashboard heater-control mechanism as well as the cable.

Important Diagnostic Information

Before replacing 7H2819833C, check the complete mechanical air-distribution system.

Inspect:

* Dashboard heater control

* Footwell flap cable

* Cable retaining clips

* Cable end fittings

* Cable routing

* Footwell flap lever

* Heater-box flap mechanism

* Other HVAC control cables

Disconnecting the cable and manually checking the flap mechanism can help determine whether the resistance is coming from the cable or from the heater-box flap itself.

Other HVAC Cables

Do not confuse this cable with other mechanical flap cables used within the T5 heater system.

Different cables are used for functions such as:

* Footwell flap

* Temperature control flap

* Windscreen/defroster flap

They can have different:

* Lengths

* End fittings

* Outer-sheath colours

* Adjustment

* Routing

* OE numbers

For example, VW catalogue data lists separate RHD references for the temperature and defroster flap cables.

Therefore, matching 7H2819833C is important.

Heater / HVAC Specification

VW catalogue data shows this cable with selected manually operated heater and air-conditioning configurations.

Depending on model year, associated PR codes can include manually controlled heating or manual air-conditioning configurations.

It is also documented with both:

* Standard dashboard configurations

* Comfort dashboard configurations

depending on vehicle specification.

For this reason, the exact OE number should be used as the primary compatibility check.

Installation

Access requirements depend on the vehicle’s dashboard and heater-control configuration.

Before installation:

* Compare the replacement cable with the original

* Check OE number

* Compare cable length

* Compare colour identification

* Compare both cable ends

* Inspect retaining clips

* Check the heater flap moves freely

During installation:

* Route the cable through the original factory path

* Avoid sharp bends

* Do not kink the outer sheath

* Secure the outer cable correctly

* Connect both ends fully

* Ensure retaining clips are locked into position

Incorrect routing can make the heater control excessively stiff.

Cable Adjustment / Testing

After installation:

1. Move the air-distribution control through its complete range.

2. Check that the control moves smoothly.

3. Confirm the footwell flap reaches its intended positions.

4. Run the heater blower.

5. Change the air-distribution setting.

6. Confirm airflow changes correctly between the selected outlets.

The cable should operate smoothly without binding or excessive resistance.

Programming / Coding

No programming or coding is required.

This is a purely mechanical HVAC control cable.

Once correctly installed and adjusted, it operates directly from the manual heater/air-distribution controls.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H2819833C

* RHD specification

* Yellow/blue identification

* Cable length

* Cable end fittings

* Outer sheath

* Retaining clips

* Dashboard type

* Heater/HVAC configuration

* Vehicle production date

Do not confuse with:

7H1819833C – LHD footwell flap cable

or with the separate temperature/defroster flap cables.

Compatibility is not determined by engine size, so this component can be found across different T5/T5.1 engine configurations where the corresponding RHD heater system is fitted.

Matching 7H2819833C directly with the original cable is strongly recommended.

Condition

Genuine Volkswagen used HVAC/heater control component.

As a used interior mechanical part, normal signs of previous use may include:

* Surface marks

* Dust

* Light dirt

* Minor cosmetic wear

* General installation/removal marks

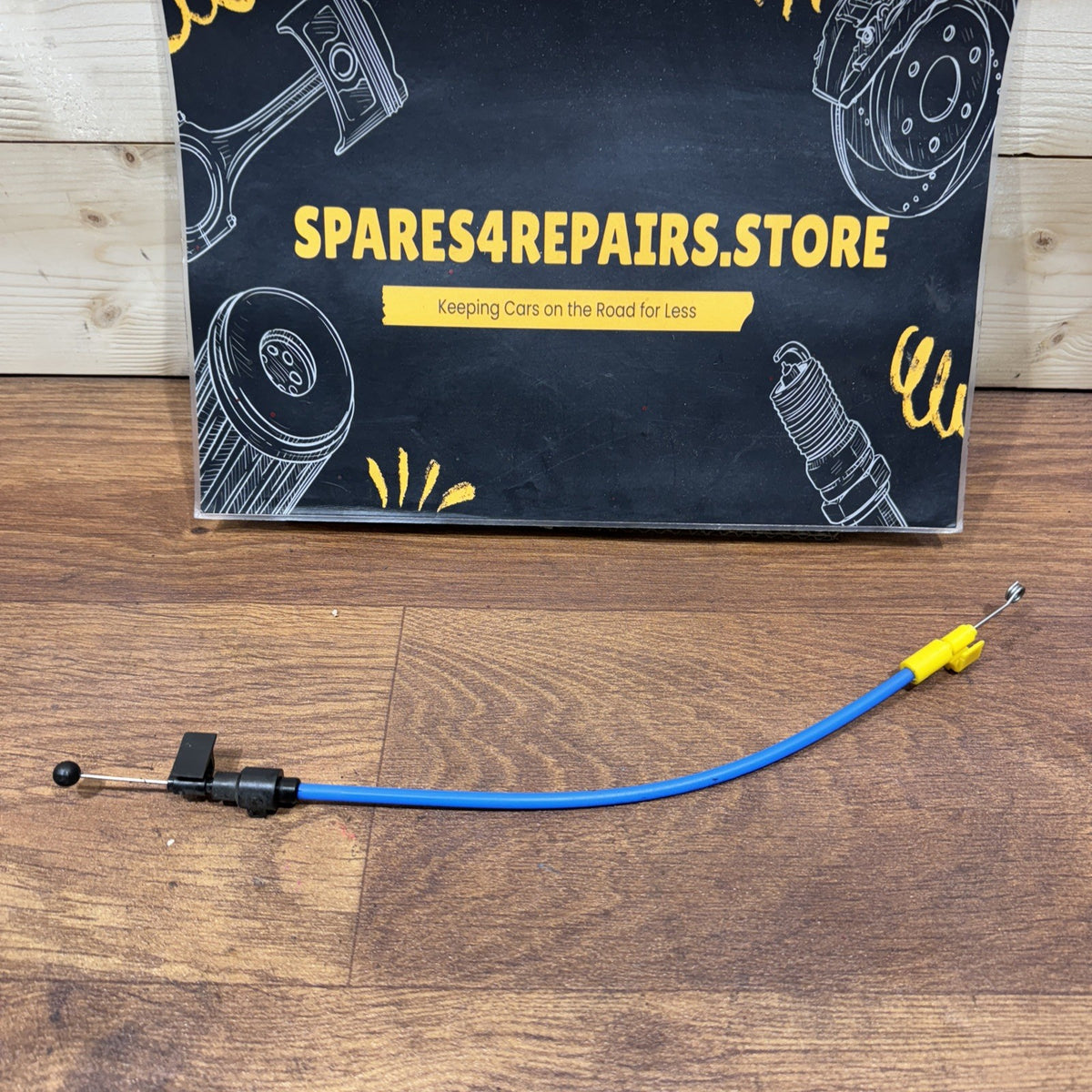

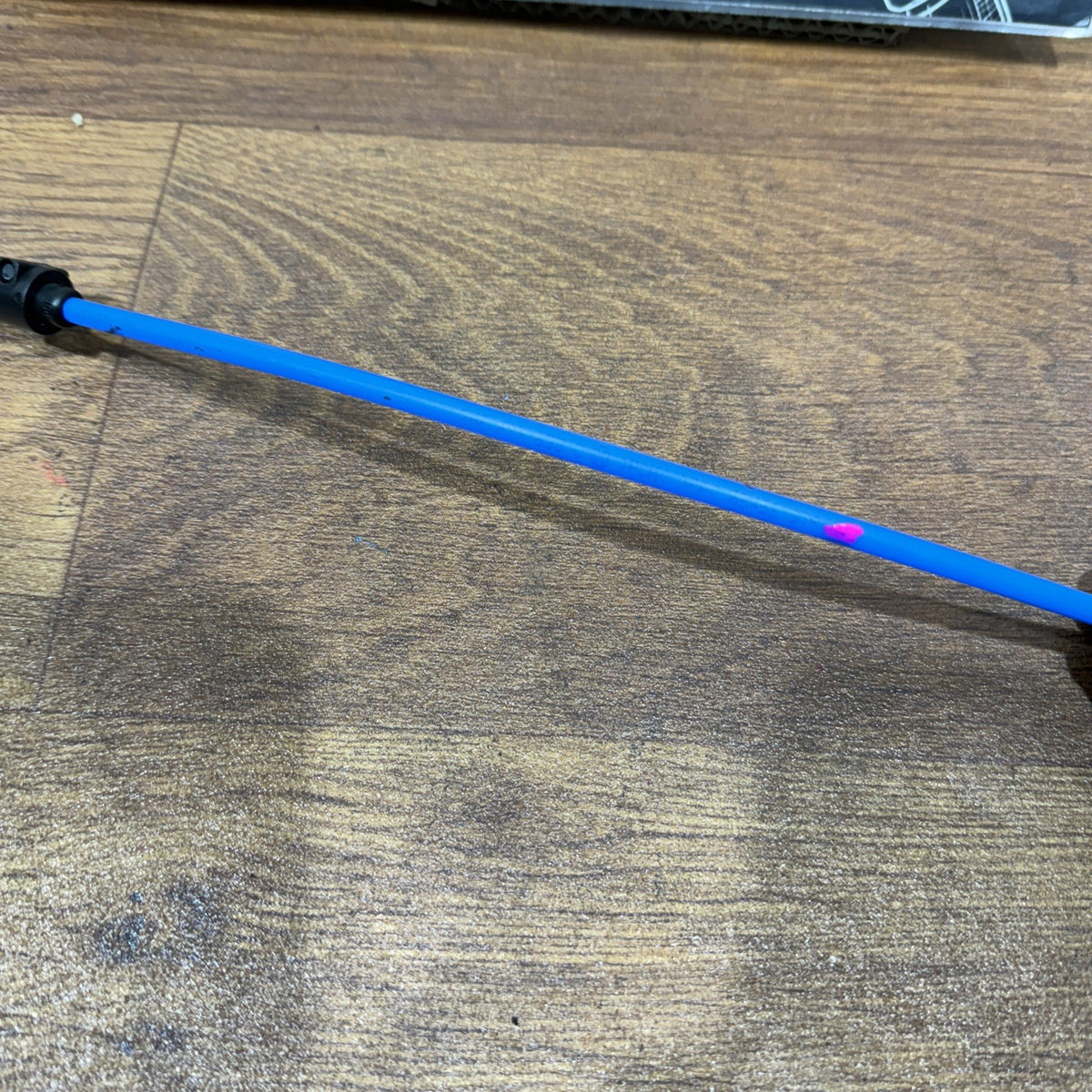

Please inspect all listing photographs carefully, particularly the:

* Inner cable

* Outer sheath

* Both cable ends

* Retaining points

* Plastic clips

* Colour identification

Only the cable and any clips/components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a snapped, seized, stretched or damaged Volkswagen Transporter T5 / T5.1 RHD footwell heater air-distribution flap control cable, provided 7H2819833C matches the original component.
